CashFlow

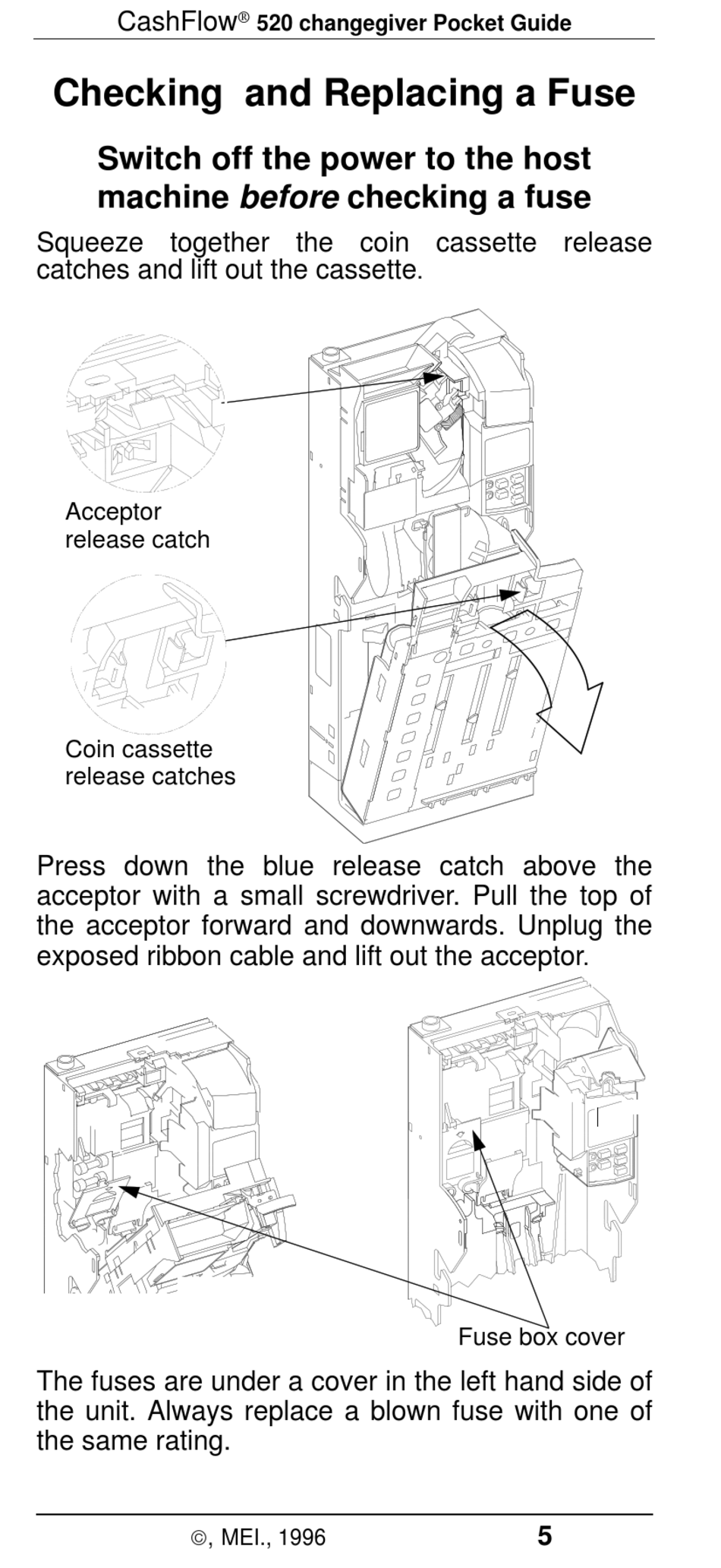

Checking and Replacing a Fuse
Switch off the power to the host
machine before checking a fuse
Squeeze together the coin cassette release
catches and lift out the cassette
Acceptor
release catch
Coin cassette
release catches
Press down the blue release catch above the
acceptor with a small screwdriver. Pull the top of
the acceptor forward and downwards. Unplug the
exposed ribbon cable and lift out the acceptor
The fuses are under a cover in the left hand side of
the unit. Always replace a blown fuse with one of
the same rating.
®
520 changegiver Pocket Guide
, MEI., 1996
.
Fuse box cover
5
.
