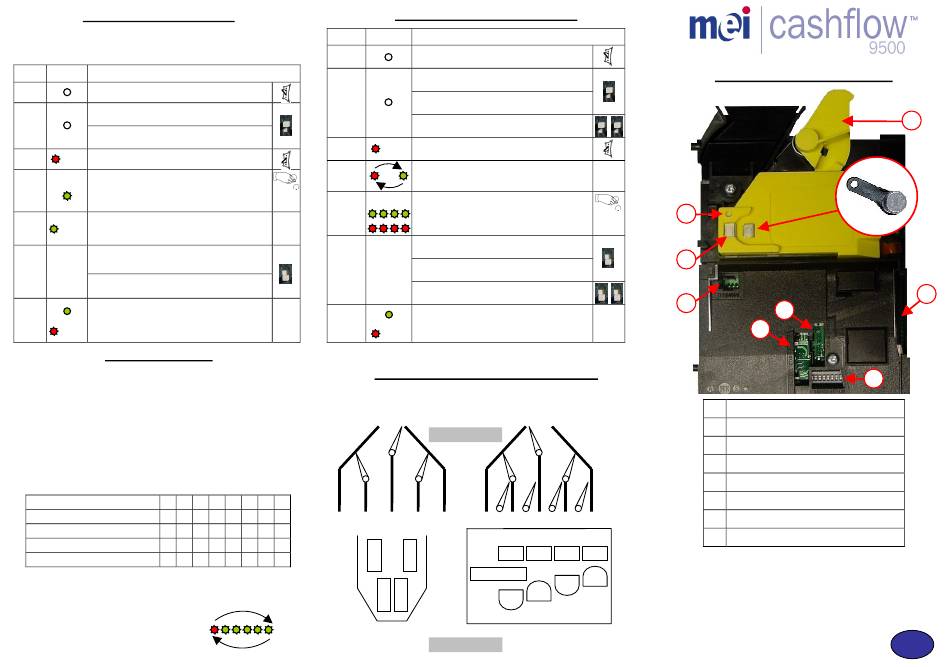

MEI Cashflow 9500 Quick Reference Manual

Token 1 & Token 2 Teach
Switch 5 - Token 1 Teach - Switch 6 - Token 2 Teach
These switches allow you to teach tokens into 2 Token Channels.
Follow the instructions below to teach a token.
Step Light Operation and Action Required
Power Machine OFF
1
To Teach Token 1 Set switch 5 to ON
2
To Teach Token 2 Set switch 6 to ON
Power Machine ON
3 Slow
Insert Sample Tokens slowly. (min. x 20)
4
If inserted Token was recognised the
green light will flash once
When approx. 20 Tokens have been
inserted, CF9500 will flash the green light
5 Rapid
rapidly
Set switch 5 to OFF ends Token 1 Teach
6
Set switch 6 to OFF ends Token 2 Teach
Tokens taught - OK
7
Error – Re-try teach again
Rapid
Coin Route Teach
Switches 7 and 8 - Route Teach
The acceptor has 4 routing priorities depending on the route inhibit
status, the first 3 routes can be taught using switches 7 and 8.
The order of priority is primary, secondary then tertiary.
E.g. If the primary route is full, the secondary route is then selected.
On a CF9524, route 'A' is the default route and on CF9528 route '8'.
All CF9500 acceptors leave the factory programmed with "all coins
to the default route".
To program a route, the reject lever will need to be pressed a
specific number of times. The Green light will flash a number of
times indicating the route selected. (See table below)
No. of Reject Lever Presses 0 1 2
No of Green Flash Codes 8 7 6
Route Selected (CF9524 - 4 way) a b d
Route Selected (CF9528 - 8 way) 8 7 6
Route Inhibit Connector Pin No. 8 7 6
Example:- How to set a route C on a CF9524?
1) Power machine OFF
2) Set switch 7 to ON
3) Power machine ON
4) Press reject lever 3 times
(light will cycle the following sequence)
5) Insert required coins to be routed
6) Set switch 7 to OFF
Step Light
1
2
3 Slow
+ ?
4
5
6
7
Rapid
CF9524 & CF9528 Separator Diagram
CF9524 Separator
(4 way)
3 4 5 6 7
5 4 3 2 1
c B A C D
5 4 3 2 1
D
5 4 3 2 1
A
Coin Route Teach (Continued)
Operation and Action Required
Power Machine OFF
For Primary Route Set switch 7 to ON
For Secondary Route Set switch 8 to ON
For Tertiary Route Set switches 7 & 8
ON
Power Machine ON
Press Reject lever the number of times
for the required route.
Insert the coin for the required route
Inserted Coin Recognised – OK
Coin NOT Recognised (re-insert coin).
For Primary Route Set switch 7 OFF
For Secondary Route Set switch 8 OFF
For Tertiary Route Set switches 7 & 8
OFF
Route Taught – OK
Error - Re-try Route Teach again.
CF9528 Separator
(8 way)
END VIEW
Cash Box Exits
8 7 6
C
Coin Reject
3
2
B
1
Coin Tube Exits
TOP VIEW
Quick Reference Guide
1
2
3
4
1 Diagnostic LED
2 i™Button Contacts
3 Service Tool Connector (i.e. CPM)
4 HII Interface Connector (i.e. Serial)
5 Route Inhibit Connector
6 Configuration Switches
7 Machine Interface Connector
8 Reject Lever
5
MEI
4 Eskdale Road,
Winnersh Triangle,
Wokingham, Berkshire, RG41 5AQ
http://www.meiglobal.com
Order - CF9500 Quick Reference Card Rev G2 - 2003
