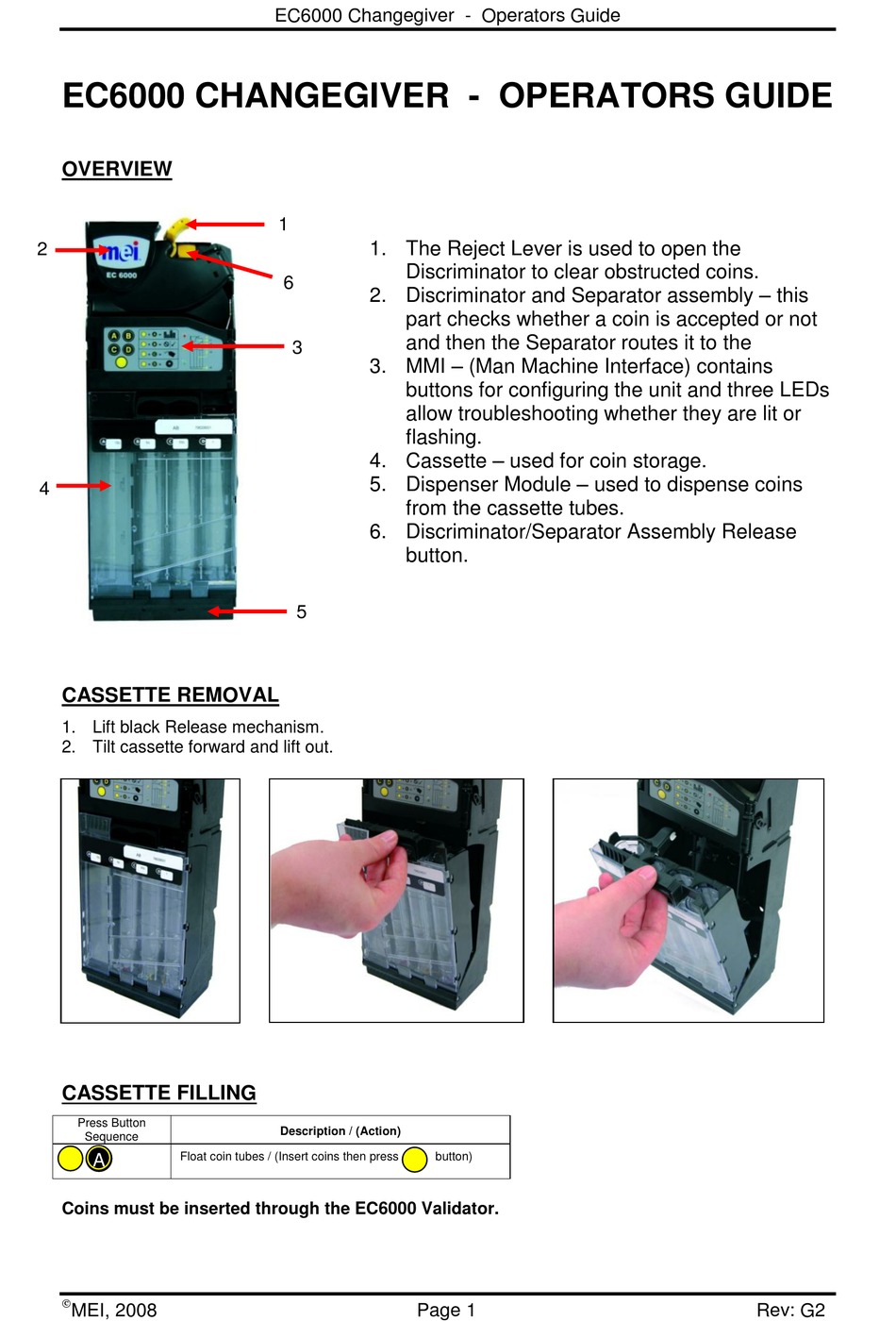

EC6000 CHANGEGIVER - OPERATORS GUIDE
OVERVIEW
2
4
CASSETTE REMOVAL
1. Lift black Release mechanism.
2. Tilt cassette forward and lift out.
CASSETTE FILLING
Press Button
Sequence
Float coin tubes / (Insert coins then press
A
Coins must be inserted through the EC6000 Validator.
MEI, 2008
EC6000 Changegiver - Operators Guide
1
1. The Reject Lever is used to open the
Discriminator to clear obstructed coins.
6
2. Discriminator and Separator assembly – this
part checks whether a coin is accepted or not
and then the Separator routes it to the
3
3. MMI – (Man Machine Interface) contains
buttons for configuring the unit and three LEDs
allow troubleshooting whether they are lit or
flashing.
4. Cassette – used for coin storage.
5. Dispenser Module – used to dispense coins
from the cassette tubes.
6. Discriminator/Separator Assembly Release
button.
5
Description / (Action)
button)
Page 1
