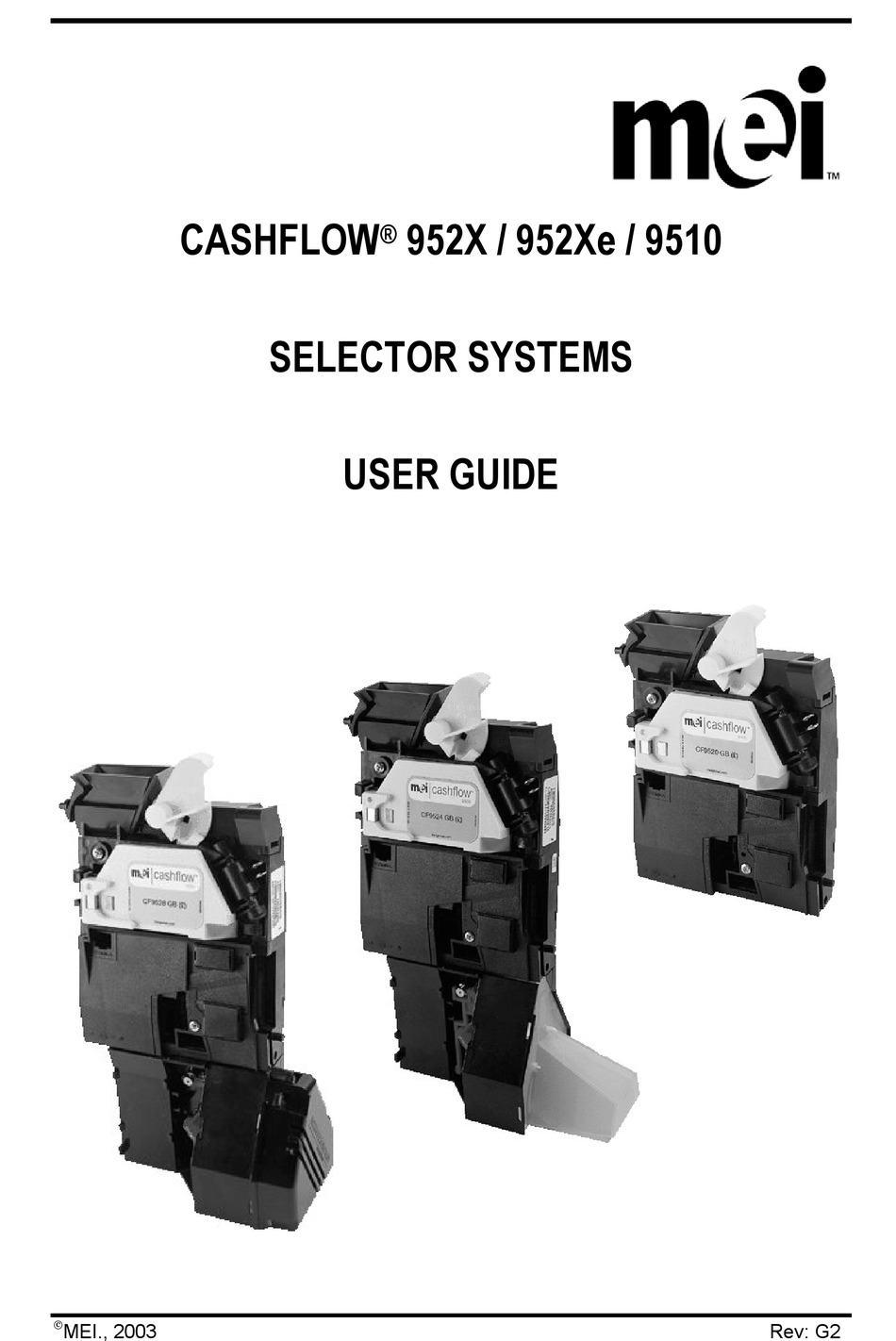

- Page 1 CASHFLOW ® 952X / 952Xe / 9510 SELECTOR SYSTEMS USER GUIDE MEI., 2003 Rev: G2...
- Page 2 , CashFlow and the MEI device are registered trademarks. MEI reserves the right to change the product or the product specifications at any time. While every effort has been made to ensure that the information in this publication is accurate, MEI disclaims any liability for any direct or indirect losses (howsoever caused) arising out of use or reliance on this information.
-
Page 3: Table Of Contents
NSTALLING THE ALIDATOR ..........................21 ESTING FOR CCEPTANCE COIN ROUTING CF9524 & CF9528....................... 22 ........................23 OUTING OMPATIBILITY ..........................24 OUTE NHIBIT ONNECTOR PRODUCT CONFIGURATION........................25 LED D ? ..........................25 HAT IS THE OING MEI., 2005 Page Rev: G2... - Page 4 Route Teach Procedure ..........................34 ® USING THE iBUTTON ........................... 38 .............................. 39 PERATION ................................39 ONCEPT ® ........................... 40 ONFIGURING THE I UTTON ® ......................... 40 SING THE I UTTON ROGRAM MAINTENANCE ............................... 42 PRODUCT SUPPORT............................43 MEI., 2005 Page Rev: G2...
-
Page 5: Safety
The recommended fuse value at the rated supply of 12V is: 3A Slow blow (to EN60127) Other protection methods may be used providing their overcurrent characteristics remain within the overall operating characteristics of the above fuse. MEI., 2005 Page Rev: G2... - Page 6 952X / 952Xe / 9510 User Guide Warning: This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. MEI., 2005 Page Rev: G2...
-
Page 7: Product Identification
952X / 952Xe / 9510 User Guide PRODUCT IDENTIFICATION MEI has manufactured coin mechanisms compatible with gaming and amusement machines for a number of years. Over this time the functionality of the range has been enhanced to match the market needs and whilst maintaining mechanical compatibility. -
Page 8: Compatibility
952X / 952Xe / 9510 User Guide COMPATIBILITY ® CashFlow ® & CashFlow 9520 ® ® CashFlow CashFlow 9520e ® ® CashFlow CashFlow 9524 ® CashFlow 9524e ® ® CashFlow CashFlow 9528 ® CashFlow 9528e ® ® CashFlow CashFlow 9510 MEI., 2005 Page Rev: G2... -
Page 9: Product Features
Post-gate and Directional Strobes Machine Interface Connector (CF952X/CF952Xe only, Dual polarity and BCO) Pre-gate Strobe Reject Lever a) Separator Connector for CF952X/CF952Xe Series b) STD 124, 24V 16-way Open Collector Parallel Interface for CF9510 MEI., 2005 Page Rev: G2... -
Page 10: Diagnostic Led (1)
This feature is currently not available in the CF9510. Service Tool Connector (3) This 6-way connector is primarily used with the MEI service tool i.e. CPM and provides a simple way of re-programming the validator whilst in the machine. Note: MEI Support Tools (CPM) will not work if the CF952Xe is in ccTalk mode ... -
Page 11: Serial Interface Connector (Hii Or Cc Talk ) (4)
In this variant, DIL switches 3 through 6 are identical to the CF952X/CF952Xe series. However, switches 1,2 and 7, 8 have different functions. Switches 1 and 2 select the active output mode, switch 7 selects parallel output teach, and switch 8 selects multi-pulse teach mode. MEI., 2005 Page Rev: G2... -
Page 12: Machine Interface Connector (8)
: • Supply Voltage Input (24Vnom) • A to F Coin Outputs (output signal) • A to F Coin Inhibits (input signal) • Escrow Return Signal (output signal) • All Inhibit signal (input signal) MEI., 2005 Page Rev: G2... -
Page 13: Coin Entry Mounting Options
There are two entry bezel options available. The single coin option is used in coin only applications and the dual coin/token. Both versions incorporate a reject button that allows the return of jammed coin/tokens. Single coin bezel Coin/Token Bezel Coin Entry Bezels - Side View MEI., 2005 Page Rev: G2... -
Page 14: Y-Chute Components
Controller Set-up In a coin only application the interface loom The use of the dual coin/token application from the machine goes directly to the requires a different loom, which connects as validator. shown above. MEI., 2005 Page Rev: G2... -
Page 15: Installation
952X / 952Xe / 9510 User Guide INSTALLATION There are two types of machine mounting methods available, “Side Entry and Top Entry”. For side entry products the machine must have fitted a MEI front plate, for top entry mounting a metal channel is used. ®... -
Page 16: Top Entry Mounting
2 - 3 mm Gap Reject Lever Validator Lid Machine Interface Mounting Holes Connector Mounting Point Note: Your product may differ slightly from some of the illustrations in this document. MEI., 2005 Page Rev: G2... -
Page 17: Cashflow 9528 System Mounting
Disconnect machine interface loom, and the route inhibit connector. • Disengage the release catch and lift the validator and separator upwards out of the mounting points. Pull the validator and separator forwards clear of channel. MEI., 2005 Page Rev: G2... -
Page 18: Removal Of Manifold And Collar Plate
Always disconnect the electrical connection first, if used, before removal of the Y- chute. • Pinch together the bottom ends of the Y-chute and lift upwards and to the right from the channel. Electrical Connection Pinch together and pull Upwards to the right MEI., 2005 Page Rev: G2... -
Page 19: Machine Interface Connector
Although the CF952X/CF952Xe series has a 17-way connector, it can accommodate a 15-way too. 17-way connector The table below shows a comparison between the 17-way and 15-way connector functions based on both MEI and BACTA definitions. 17- Way 15 - Way Input or... - Page 20 In this table, it shows the most common coin outputs and coin inhibits used for a UK currency validator. Coin Outputs Coin Inhibits and Currency and Currency Token Token 50p & £2 £1 £1 MEI., 2005 Page Rev: G2...
-
Page 21: Acceptance Test
Coin Inhibited by Unit 4 x Flashes Coin Inhibited by Host Machine Example: 1 x Flashes Green LED flashes once then LED turns to solid Green ON LED Key: = Green ON Green Flashing Red Flashing MEI., 2005 Page Rev: G2... -
Page 22: Coin Routing Cf9524 & Cf9528
2. All CF952X/CF952Xe Validators leave the factory programmed with “all coins to the default route”. CF9524/CF9524e 4-WAY SEPARATOR CF9528/CF9528e 8-WAY SEPARATOR Default Route = A Default Route = 8 Cash Box Exits Coin Reject Coin Tube Exits Default Route Default Route MEI., 2005 Page Rev: G2... -
Page 23: Coin Routing Compatibility
B, the machine would have to send that coin to route 3. However, in HII mode, the route selected by the machine for exit B would be 4. MEI., 2005 Page Rev: G2... -
Page 24: Route Inhibit Connector
9 pins on a 0.1 inch grid. The pin size is 0.025 inch square. Description for Description for (CF9528/CF9528e) (CF9524/CF9524e) Full 1 Full 2 Full 3 Full 4 Full 5 Full 6 Full 7 Polarised Polarised Ground Ground MEI., 2005 Page Rev: G2... -
Page 25: Product Configuration
Rapid Flash iButton programmed OK ® Rapid Flash iButton program error (re-try) ® Rapid Flash iButton programming a CF952X/CF952Xe No error - program completed OK LED Key: = Green Flashing Red Flashing Green ON MEI., 2005 Page Rev: G2... -
Page 26: Dil Switch Options For The Validator
In this case, no changes will have been made and you will need to start the teach process again. MEI., 2005 Page Rev: G2... - Page 27 Switch up = ON Switch down = OFF Description Turn Power Off and On Parallel/BCO mode Extended Features Enable Coin Inhibit Coin Teach Token 1 Teach Token 2 Primary Route Teach Secondary Route Teach MEI., 2005 Page Rev: G2...
-
Page 28: Sw1 - Alarm Enable
When SW2 is active, SW1 becomes the serial protocol selector. If SW1 is OFF, the serial mode selected is HII. If SW1 is ON, ccTalk is the serial protocol selected. HII selected ccTalk selected MEI., 2005 Page Rev: G2... - Page 29 952X / 952Xe / 9510 User Guide CF9510 - SW1 - Parallel/BCO Mode select Together with SW2, SW1 is used to determine the active output mode as described in the following table: Active Mode Parallel Extended BCO Mulitpulse MEI., 2005 Page Rev: G2...
-
Page 30: Sw2 - Hii Standalone Mode (Serial Mode Only )
As described in the truth table in section CF9510 - SW1 - Parallel/BCO Mode select, SW2 together with SW1 determine the active output mode in accordance with the following table: Active Mode Parallel Extended BCO Mulitpulse MEI., 2005 Page Rev: G2... -
Page 31: Sw3 - Enable Coin Teach And Sw4 - Inhibit Coin Teach
Slow Flash Insert coin sample in Unit Rapid Flash Program error Inserted coin recognised Inserted coin unrecognised Inserted coin stored in memory 4 x Flashes Green ON Green Flashing Red Flashing LED Key = MEI., 2005 Page Rev: G2... -
Page 32: Sw5 - Token 1 Teach And Sw6 Token 2 Teach
Set switch 5 to OFF - ends token 1 teach. Set switch 6 to OFF - ends token 2 teach Tokens taught - OK Rapid Error - Re-try teach again. Green ON Green Flashing Red Flashing LED Key: = MEI., 2005 Page Rev: G2... -
Page 33: Sw7 And Sw8 - Route Teach
LED will flash if the coin is not recognised. No of reject lever presses No of green flash codes Route selected (CF9524/CF9524e - 4 way) Route selected (CF9528/CF9528e - 8 way) Route Inhibit Connector Pin No. MEI., 2005 Page Rev: G2... - Page 34 4. Press reject lever 3 times (light will cycle the following sequence) Cycles 5. Insert required coins to be routed 6. Set switch 7 to OFF No of reject lever presses No of green flash codes 4-way separator exit MEI., 2005 Page Rev: G2...
-
Page 35: Route Teach Procedure
For secondary route set switch 8 OFF. For tertiary route set switches 7 & 8 OFF. Route taught - OK Error - Re-try route teach again. Rapid Green ON Green Flashing Red Flashing LED Key: - MEI., 2005 Page Rev: G2... - Page 36 N° Of Green Flash Code Output Selected Once the desired output is selected, then the coin whose output is to be taught should be dropped into the acceptor. Mulitple coins outputs can be taught in one teach session. MEI., 2005 Page Rev: G2...
- Page 37 The maximum number of pulses that can be set via the MMI for each coin is 4. However 8 can be set using the support tool, if necessary. Number of Reject Lever Presses N° Of Green Flash Code Number of Pulses Selected MEI., 2005 Page Rev: G2...
-
Page 38: Using The Ibutton
All of these functions will take effect when the acceptor detects ® that an iButton has been placed on the contacts on the lid. Note: The CF952x/CF952Xe does not use routing plugs. ® See iButton Functions on page 25 for the LED functions. MEI., 2005 Page Rev: G2... -
Page 39: User Operation
50c to Exit C 1€ & 2€ to Exit D ® Now use the iButton to program the Field Base CF952X/CF952Xe Validators with the ® same configuration. See Configuring the iButton on page 40. MEI., 2005 Page Rev: G2... -
Page 40: Configuring The Ibutton
(re-try). ® Using the iButton to Program ® How to program a CF952X/CF952Xe using the iButton Step Light Operation and Action Required Slow ® ® Place iButton on to iButton contacts. Slow MEI., 2005 Page Rev: G2... - Page 41 Press the reject lever to confirm. Accept Gate will click then release the reject lever. CF952X/CF952Xe programmed OK Error - CF952X/CF952Xe failed programming (re-try). Green ON Green Flashing Red Flashing LED Key: = MEI., 2005 Page Rev: G2...
-
Page 42: Maintenance
Never apply water or cleansers directly onto the product. Always apply them to a clean cloth first, and not too liberally, so that the cloth used is only moist. Coin Entry Moulding Coin Entry Liner Clean Shaded Area MEI., 2005 Page Rev: G2... -
Page 43: Product Support
PRODUCT SUPPORT In addition to the MEI offices around the world an international network of Distributors and Approved Service Centres can offer you technical support and other services as well. ® These services include repairs, re-programming of your CashFlow products with new coinsets, replacing damaged modules, and the supply of a range of spare parts.
