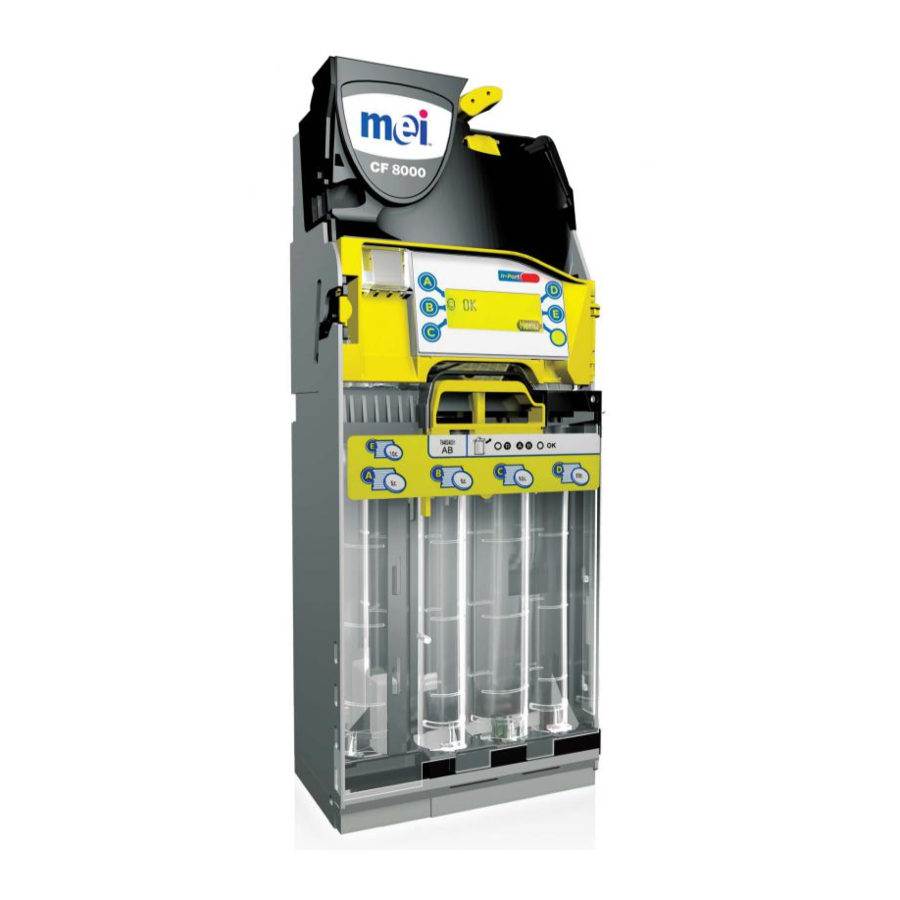

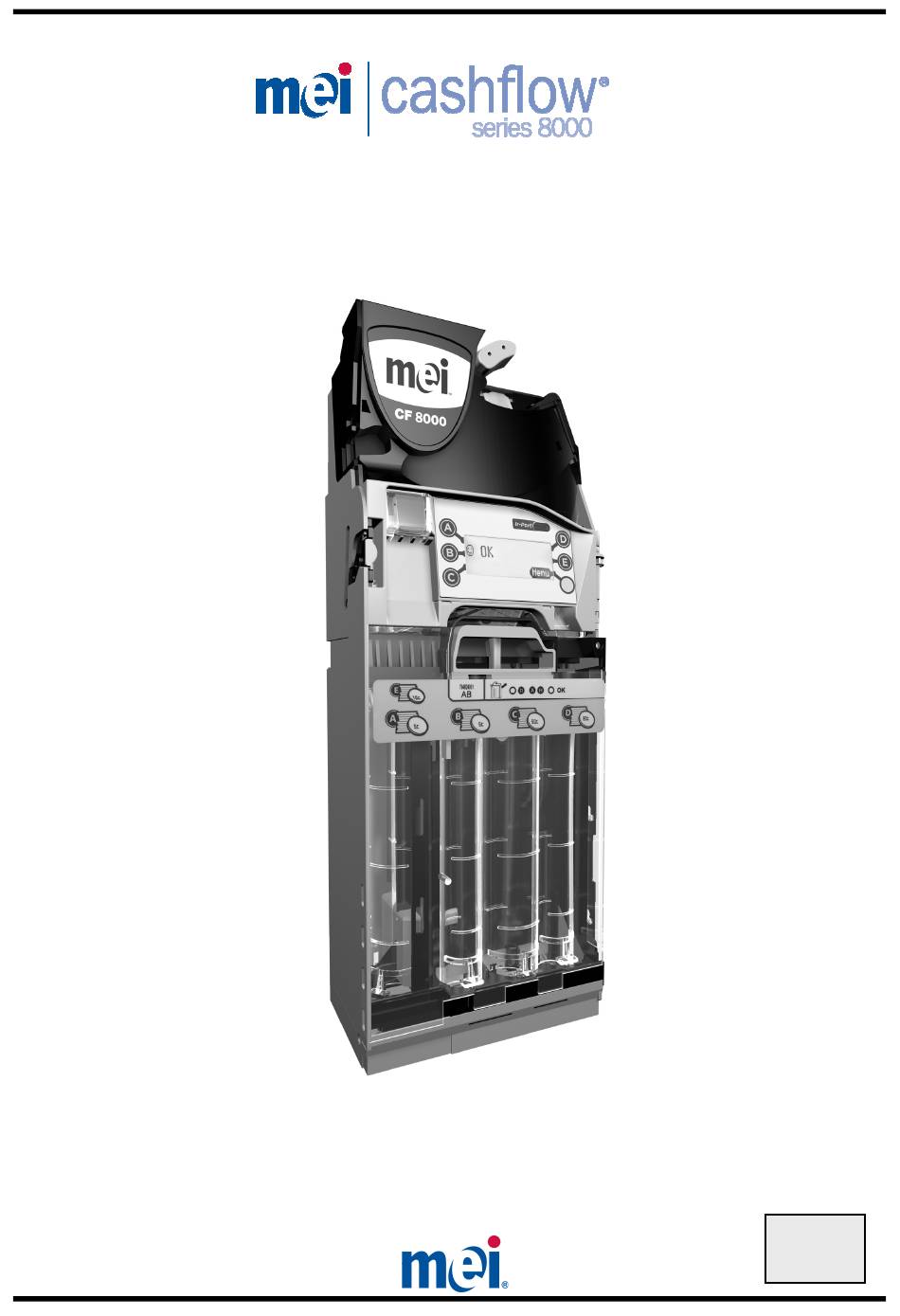

- Page 1 ® CASHFLOW 8000 Series Change Manager START- UP GUIDE Part Number 79xxxxxxx Rev G1...
-
Page 2: Installation
INSTALLATION Preparing for Installation ♦ Turn OFF all power to the vending machine. ♦ To ensure that the CF8000 performance is not affected, visually check the vending machine is upright, both from the front and side. ♦ Before mounting the CF8000 to the vending machine, check the operating voltage of the vending machine matches that stated on the CF8000 label. - Page 3 ♦ Tighten all three studs and return the discriminator back to its normal position. Alignment Checks Once the CF8000 has been securely fitted to the vending machine, check reject lever operation and coin chute alignment. Do this without any power applied to the machine.
-
Page 4: Keypad Functions
KEYPAD FUNCTIONS ® On the front of the CashFlow 8000 there is a user interface keypad. The keypad has six function buttons and a large LCD display. This keypad allows you to dispense coins from the five-tube dispenser, access & navigate through the configuration menus and monitor the status of the CF8000. -
Page 5: Getting Started
Once the CF8000 has enough coins in the tubes, the LCD display will show the coin totals (in currency value) stored in the tubes. Note: MEI recommends that a small number of coins (e.g. 5 of each) be inserted in each tube prior to leaving the machine. - Page 6 Service Mode Options (Quick Menu Codes) This list shows the most commonly used service modes. Press Following Description / Button Sequence Action Float coin tubes / (Insert coins then press ‘Mode’ button) Clear accumulated credit – (Not MDB) and clear ‘Clean Me’...
- Page 7 Setup Mode Menus Press button ‘D’ - Scrolls Up the menus Press button ‘E’ – Scrolls Down the menus Language Menu Option Selected Test Error Log EXAMPLE: - How to set the language General 1. Press the ‘Mode’ button once 2.
- Page 8 Alert Messages An Alert message on the display allows you to pinpoint a fault that may have occurred on one of the modules of the changegiver. These types of fault can be rectified at the machine and can be for example caused by; a coin jam, dirt built up or the cassette has been removed etc.
- Page 9 Machine Interface Manufacturer Machine Audit Capability Klix Outlook Dex Kit Needed Colibri No Audit Available - S/w update Venecia Jack option available Zenith Pre 2000 Printer only Sfera >2006 S/W files needed (+4K Board) Astro <2006 Jack looms only ? Necta Snack Brio...
- Page 10 Do not dispose of any part of a CashFlow 8000 Series by incineration. ® CashFlow 8000 Series Start-Up Guide Revision G1 Publication Date: September 2010 Internet: http://www.meigroup.com ® ® , CashFlow and the MEI device are registered trademarks. Copyright MEI UK International Ltd. 2010. Page 10 of 10...
