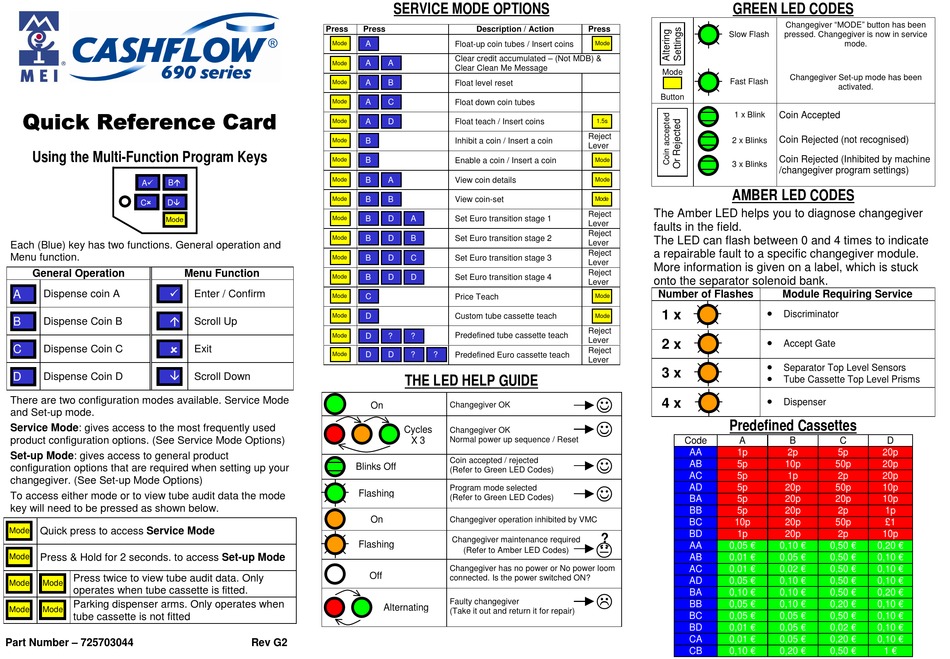

MEI CASHFLOW 690 Series Quick Reference Card

Quick Reference Card
Using the Multi-Function Program Keys
B
A
C D
Mode
Each (Blue) key has two functions. General operation and
Menu function.
General Operation Menu Function
Dispense coin A
A
B Dispense Coin B
C Dispense Coin C
D Dispense Coin D
There are two configuration modes available. Service Mode
and Set-up mode.
Service Mode: gives access to the most frequently used
product configuration options. (See Service Mode Options)
Set-up Mode: gives access to general product
configuration options that are required when setting up your
changegiver. (See Set-up Mode Options)
To access either mode or to view tube audit data the mode
key will need to be pressed as shown below.
Mode Quick press to access Service Mode
Mode Press & Hold for 2 seconds. to access Set-up Mode
Press twice to view tube audit data. Only
Mode Mode
operates when tube cassette is fitted.
Parking dispenser arms. Only operates when
Mode Mode
tube cassette is not fitted
Part Number – 725703044
Press Press
A
Mode
A
Mode
A
Mode
Mode A
A
Mode
B
Mode
Mode B
B
Mode
Mode B
B
Mode
Mode B
B
Mode
Mode B
Enter / Confirm
Mode C
Mode D
Scroll Up
Mode D
Exit
D
Mode
Scroll Down
On
Blinks Off
Flashing
On
Flashing
Off
Rev G2
SERVICE MODE OPTIONS
Description / Action
Float-up coin tubes / Insert coins
Clear credit accumulated – (Not MDB) &
A
Clear Clean Me Message
B Float level reset
C Float down coin tubes
D Float teach / Insert coins
Inhibit a coin / Insert a coin
Enable a coin / Insert a coin
A View coin details
B View coin-set
D A Set Euro transition stage 1
D B Set Euro transition stage 2
D C Set Euro transition stage 3
D D Set Euro transition stage 4
Price Teach
Custom tube cassette teach
Predefined tube cassette teach
? ?
D ? ?
Predefined Euro cassette teach
THE LED HELP GUIDE
Changegiver OK
Cycles
Changegiver OK
Normal power up sequence / Reset
X 3
Coin accepted / rejected
(Refer to Green LED Codes)
Program mode selected
(Refer to Green LED Codes)
Changegiver operation inhibited by VMC
Changegiver maintenance required
(Refer to Amber LED Codes)
Changegiver has no power or No power loom
connected. Is the power switched ON?
Faulty changegiver
Alternating
(Take it out and return it for repair)
GREEN LED CODES
Press
Slow Flash
Mode
Mode
Fast Flash
Button
1 x Blink
1.5s
Reject
2 x Blinks
Lever
Mode
3 x Blinks
Mode
AMBER LED CODES
Mode
The Amber LED helps you to diagnose changegiver
Reject
Lever
faults in the field.
Reject
The LED can flash between 0 and 4 times to indicate
Lever
a repairable fault to a specific changegiver module.
Reject
Lever
More information is given on a label, which is stuck
Reject
onto the separator solenoid bank.
Lever
Number of Flashes
Mode
•
1 x
Mode
Reject
•
Lever
2 x
Reject
Lever
•
3 x
•
☺
•
4 x
☺
Predefined Cassettes
Code A
AA 1p
☺
AB 5p
AC 5p
☺
AD 5p
BA 5p
BB 5p
BC 10p
BD 1p
?
0,05 €
AA
0,01 €
AB
0,01 €
AC
0,05 €
AD
0,10 €
BA
0,05 €
BB
0,05 €
BC
0,01 €
BD
0,01 €
CA
0,10 €
CB
Changegiver "MODE" button has been
pressed. Changegiver is now in service
mode.
Changegiver Set-up mode has been
activated.
Coin Accepted
Coin Rejected (not recognised)
Coin Rejected (Inhibited by machine
/changegiver program settings)
Module Requiring Service
Discriminator
Accept Gate
Separator Top Level Sensors
Tube Cassette Top Level Prisms
Dispenser
B C D
2p 5p 20p
10p 50p 20p
1p 2p 20p
20p 50p 10p
20p 20p 10p
20p 2p 1p
20p 50p £1
20p 2p 10p
0,10 € 0,50 € 0,20 €
0,05 € 0,50 € 0,10 €
0,02 € 0,50 € 0,10 €
0,10 € 0,50 € 0,10 €
0,10 € 0,50 € 0,20 €
0,10 € 0,20 € 0,10 €
0,05 € 0,50 € 0,10 €
0,05 € 0,02 € 0,10 €
0,05 € 0,20 € 0,10 €
0,20 € 0,50 € 1 €
