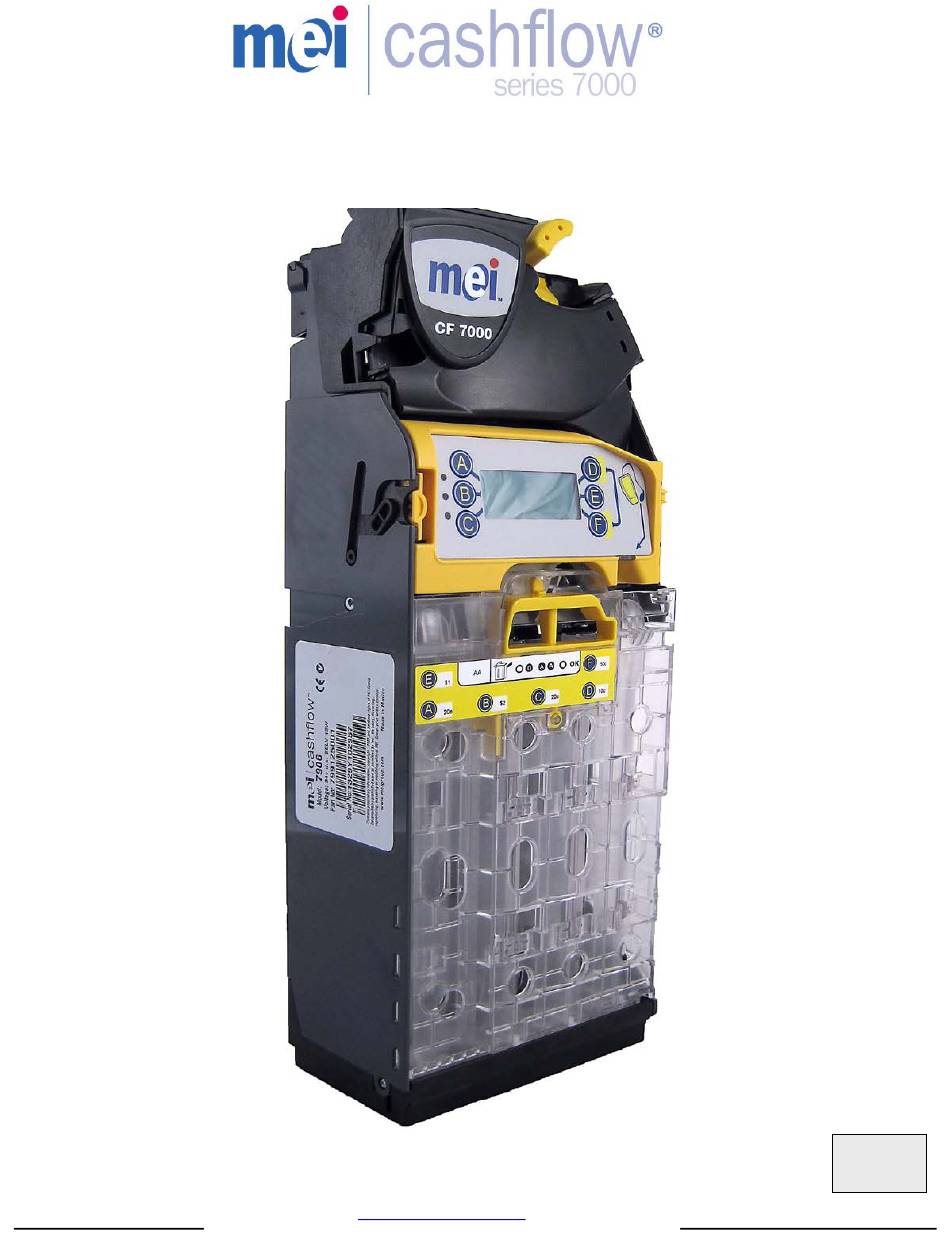

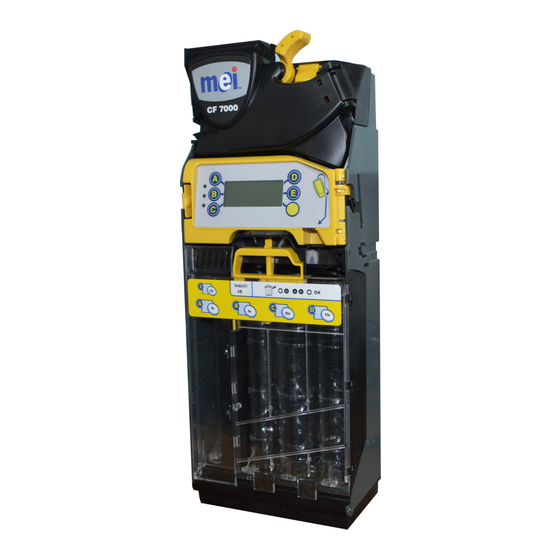

- Page 1 ® CASHFLOW 7906 Series Change Manager START- UP GUIDE 3222 Phoenixville Pike, Suite 200, Malvern, Pa., 19355 U.S.A Technical Support 610-345-8172 http://www.meigroup.com...
-
Page 2: Installation
INSTALLATION Preparing for Installation 1. Turn OFF all power to the vending machine. 2. To ensure that the CF7906 performance is not degraded, check that the vending machine is upright and vertical, both from the front and side. 3. Before mounting the CF7906 in the vending machine, check that the operating voltage of the vending machine matches the voltage stated on the CF7906 label. -
Page 3: Alignment Checks
Alignment Checks Once the CF7906 has been securely fitted to the vending machine, check reject lever operation and coin chute alignment. Do this without any power applied to the machine. Reject Lever 2mm-4mm Check there is a 2mm to 4mm gap between the vending machines’... -
Page 4: Keypad Functions
KEYPAD FUNCTIONS ® On the front of the CashFlow 7906 there is a user interface keypad. The keypad has three LED’s, six function buttons, and, a large LCD display. This keypad allows you to dispense coins from the six-tube dispenser, access & navigate through the menus and monitor the status of the CF7906. -
Page 5: Setup Menu
Setup Menu: Gives you access to general product configuration options that are used when setting up your CF7906. Park changes to Back after a few seconds. Parking the Dispenser Disks: If the CF7906 is not dispensing coins properly, remove the cassette, and press the buttons at the same time. -
Page 6: Set-Up Mode Options
Set-Up Mode Options Fill Tubes to Float Level using Service Menu Press Button Sequence Description / (Action) 1. Press the ‘D’ and ‘F’ buttons at the same Float coin tubes / (Insert coins) & time. Float teach / (Insert coins) &... -
Page 7: Setup Menu Options
Set-up Menu Options Language Test Error Log General Banknote Config Cashless Config Audit Config Coin Config Machine Options Change Mgmt Float Setup Menu Starts from here Prices Messages Only if Messages are available Setup Menus EXAMPLE: How to set the language. - Page 8 SETUP MENU AUDIT CONFIG Press the D and F buttons at the same time. Setup Machine Id. Press the E button. “Warning! Setup Menu press code to Enter” Reset audit Code = (A,B,C). Press the A button, then the B button, then the C button. Ir Pod password No change Reset...
- Page 9 BASIC Menu Audit tab AUDIT Value of cash to cashbox = $ 00.00 Pause/Resume Value of cash to tubes = $ 0.00 Value dispensed as change = $ 00.00 Value of manual dispense = $ 00.00 Total tube value = $ 00.00 Tube A count -0 Total = $ 0.00 Tube B count -0 Total = $ 0.00 Tube C count -0 Total = $ 0.00...
-
Page 10: Clearing A Coin Jam
Clearing a Coin Jam If a coin jams in the dispenser, the Amber light will flash 4 times. The display will show the average face, a small icon of the changer with an arrow pointing to the dispenser, the word Alert, and Dispenser (A- F), (the dispenser that is jammed). - Page 11 Available tubes and compatible coin sizes COIN COIN Ø TUBE No. COIN Ø RANGE Restrictions Full Max Fill May only be in this count count position(s) AUS 10c 23.6 A,B,C,D AUS 20c 28.5 AUS 50c 32.5 AUS $1 AUS $2 20.5 A,B,C,D Selecting Predefined Cassette...
- Page 12 Display - Symbol Indicators During the coin manager programming or normal operation, icons may be shown on the display. These icons will indicate if the coin manager requires any attention or will assist you in selecting a particular program mode. Symbol Description Action...
- Page 13 Do not dispose of any part of a CashFlow 7906 Series by incineration. ® CashFlow 7906 Series Start-Up Guide Revision Publication Date: February 6, 2013 Internet: http://www.meigroup.com ® ® , CashFlow and the MEI device are registered trademarks. © Copyright MEI 2013.
