10.
Adjust set screws on cantilevers (see Step 12) to be flush with the
bracket.

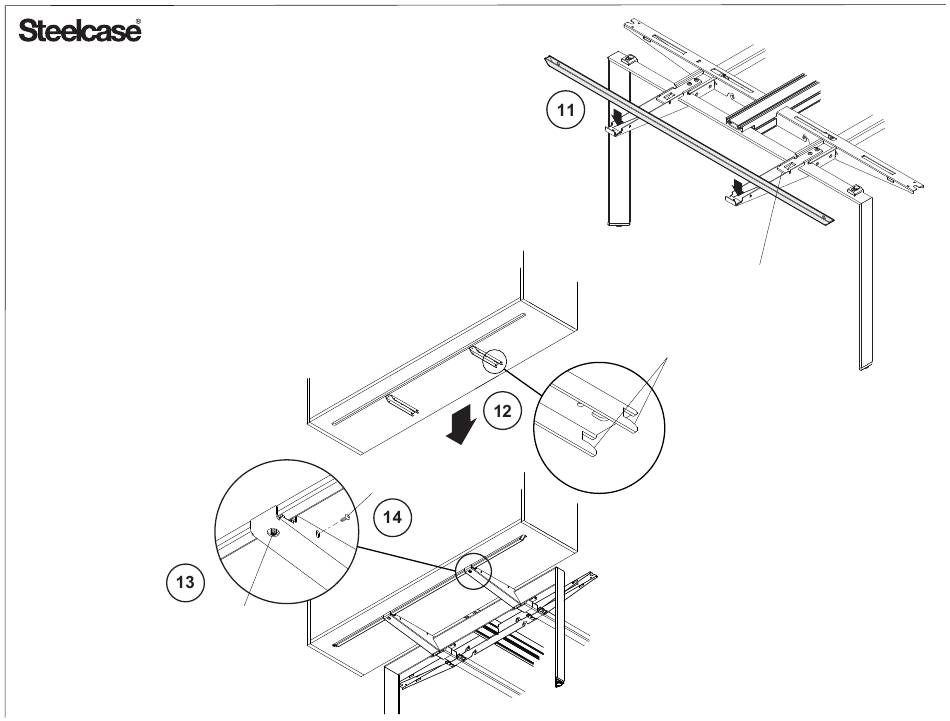

11.
Set U-channel onto cantilevers (centered), open side up.
12.
Set cabinet onto cantilevers and U-channel so that the cabinet
mounting bracket slots engage both cantilever I-shape plates, locking the
back down, and the U-channel falls into the slot in the cabinet bottom.
13.
Adjust set screws in cantilevers to level the cabinet.
14.
Install one #10 x 5/8" tapping screw in the side of each
cantilever to secure the cabinet to the cantilevers.
15.
(Re-) install FrameOne tops.
Set screw
U-channel
Tapping screw
I-shape
plate
Slots to engage
I-shape plates
Page 4 of 4
939502153 Rev C
