3.
If FrameOne desk has worksurfaces already installed, remove them.
4.

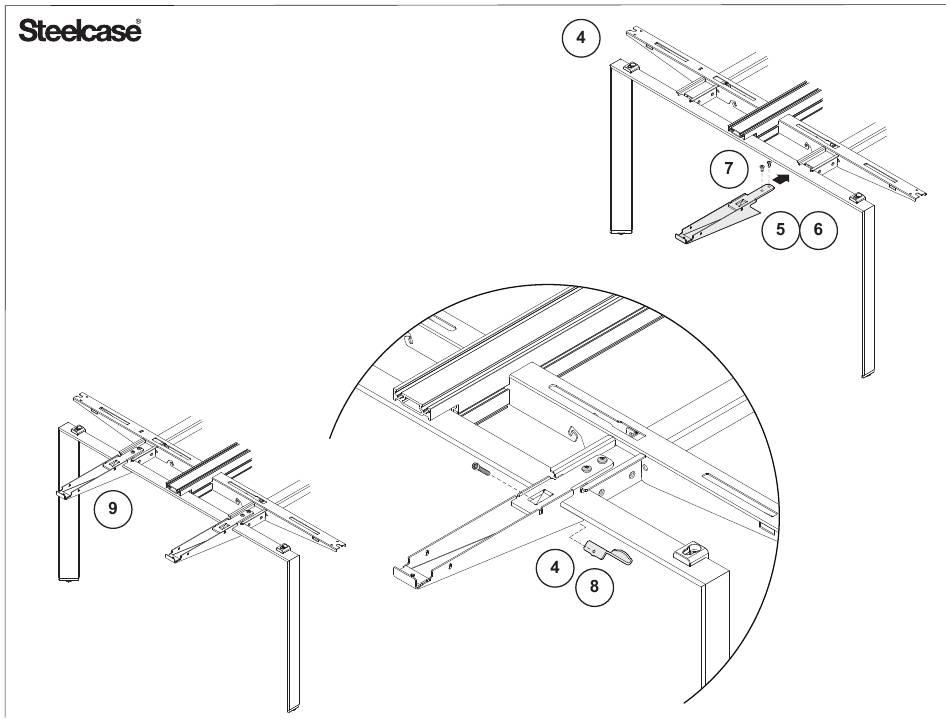

Loosely attach clamping bracket to cantilever using bolt through the bent top flange.
Note that the bottom of the clamp bracket should grab the bottom edge of the triangular leg tube.
5.
Slide cantilever over leg so that it captures the triangular desk frame tube.
6.
Use the two holes in the cantilever top plate as a template to drill two
.266ʺ (17/64ʺ) diameter holes into the top of the horizontal frame tube.
7.
Attach cantilever using two screws provided.
8.
Tighten clamping bracket bolt until it securely grips the leg.
9.
Repeat steps to attach other cantilever.
Cantilever
