Summary of Contents for Bartscher 110.701

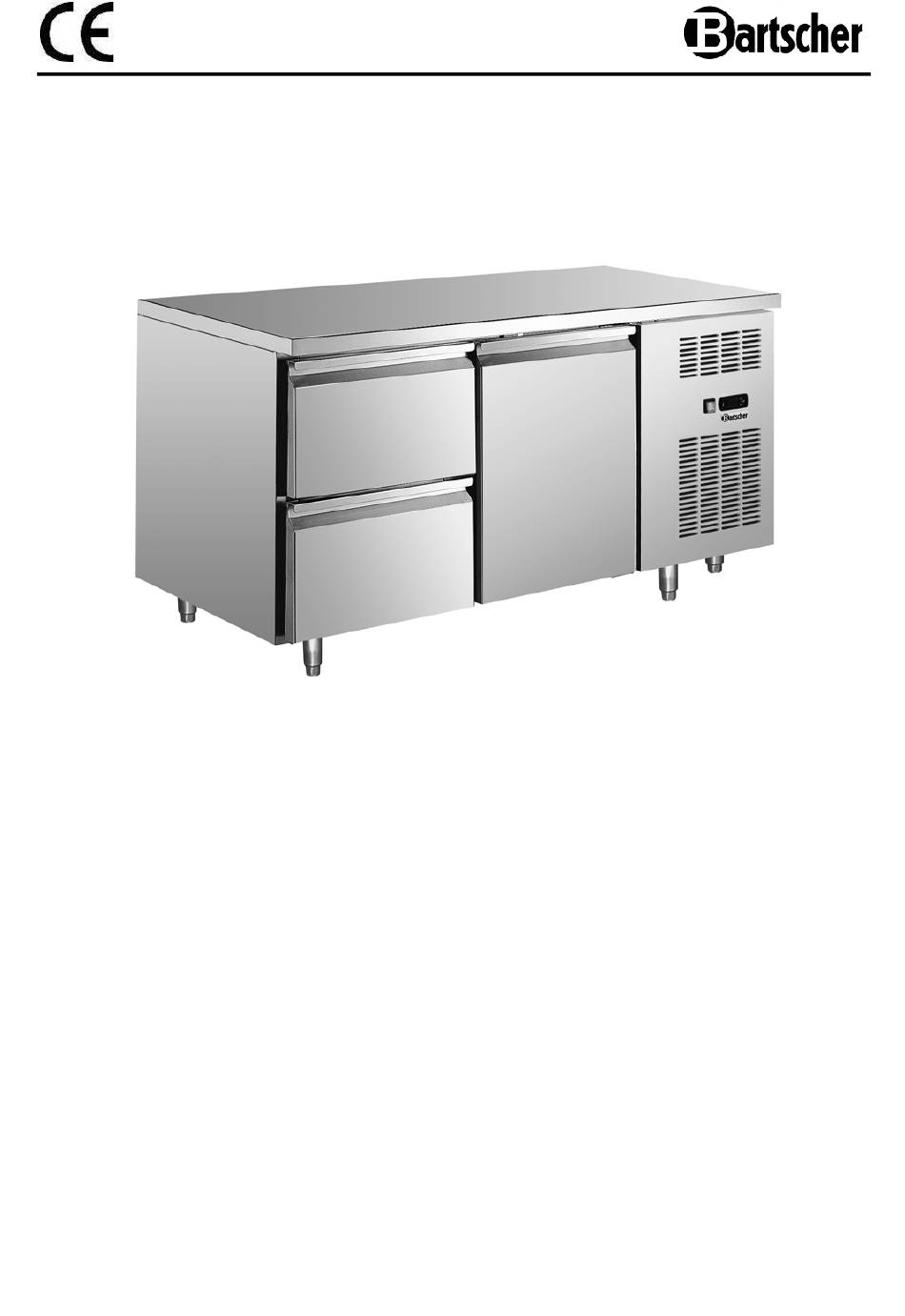

- Page 1 110.701 / 110.701MA 110.702 / 110.702MA 110.703 / 110.703MA 110.704 / 110.704MA 110.705 / 110.705MA 110.706 / 110.706MA 110.707 / 110.707MA 110.708 / 110.708MA V2/0612...
- Page 3 110.701 110.701MA 110.702 110.702MA 110.703 110.703 110.704 110.704MA...
- Page 4 110.705 110.705MA 110.706 110.706MA 110.707 110.707MA 110.708 110.708MA...
-
Page 5: Table Of Contents
6. Cleaning and maintenance 6.1 Safety advice 6.2 Cleaning 6.3 Safety instructions for maintenance 7. Possible Malfunctions 31-32 8. Waste disposal Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax: +49 (0) 5258 971-120 - 17 -... -
Page 6: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 7: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 8: Safety
2. Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 9: Intended Use
CAUTION! o The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device. -
Page 10: Delivery, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data
4. Technical data 4.1 Overview of parts ③ ② ④ ① ⑤ ⑧ ⑥ ⑦ ① Housing ② Work surface ③ ON/OFF switch with integrated control light ④ Ventilation ducts ⑤ Digital temperature regulator ⑥ Door ⑦ Drawer ⑧ Adjustable legs - 23 -... -
Page 12: Technical Specification
4.2 Technical specification Name Circulation-cooled tables 110.701 110.702 110.703 Article no.: 110.701MA * 110.702MA * 110.703MA * 2 doors, cooled 1 door, 4 drawers 2 drawers GN 1/1, 150 mm, Construction: GN 1/1, 150 mm, cooled cooled Coolant: R134a/400 g... -
Page 13: Installation And Operation
Name Circulation-cooled table 110.707 110.708 Article no.: 110.707MA * 110.708MA * 6 drawers GN 1/1, 9 drawers GN 1/1, Construction: 150 mm, cooled 100 mm, cooled Power: R134a/360 g Coolant: 320 W / 230 V Temperature range: 0 °C - 10 °C W 1875 W 1875 Dimensions (mm):... -
Page 14: Installation And Connection
WARNING! Hazard via electrical current! The device can cause injuries due to improper installation! Before installation the local power grid specification should be compared with that of the device (see type label). Connect the device only in case of compliance! Take note of the security advice! 5.2 Installation and connection CAUTION! - Page 15 • After turning the device on, the LED display will show the following symbols: . The factory pre-set temperature will also be shown. • During first use, allow the device to reach the desired temperature prior to placing any food products or beverages inside. Digital temperature regulator Display and functions Primary temperature settings are established at the factory and correspond to a working...
- Page 16 Button functions Tab. 2 Normal work mode Button Start Pressing Pressing buttons buttons individually together Longer than 3 sec.: ① Pressed alternating display of together – ON/OFF ON/OFF constant operation ③ 1 sec: Longer than 3 sec.: mode turned Programmin Defrost turned on / off on / off g version...
- Page 17 Defrost Automatic defrost The device automatically defrosts 3 times per 24 hours. The internal clock is activated the first time the device is turned on. If you want to reset the automatic defrost cycle, press and hold for over 3 seconds. The display will show the symbol The device will immediately begin automatic defrost, then the next defrost will begin in 8 hours.
-
Page 18: Cleaning And Maintenance
• To avoid unpleasant odors inside the cooled table, observe the recommended use by dates. • In the event of a power outage, avoid opening the doors and drawers as much as possible to avoid cold loss. • After a power outage or after removing the plug from its socket, do not reconnect the device for at least 5 minutes to a power source. -
Page 19: Safety Instructions For Maintenance
6.3 Safety instructions for maintenance o Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers. o In case of damage or malfunction, please contact your stockist or our customer service centre. -
Page 20: Waste Disposal
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
