CEM881 COM Express

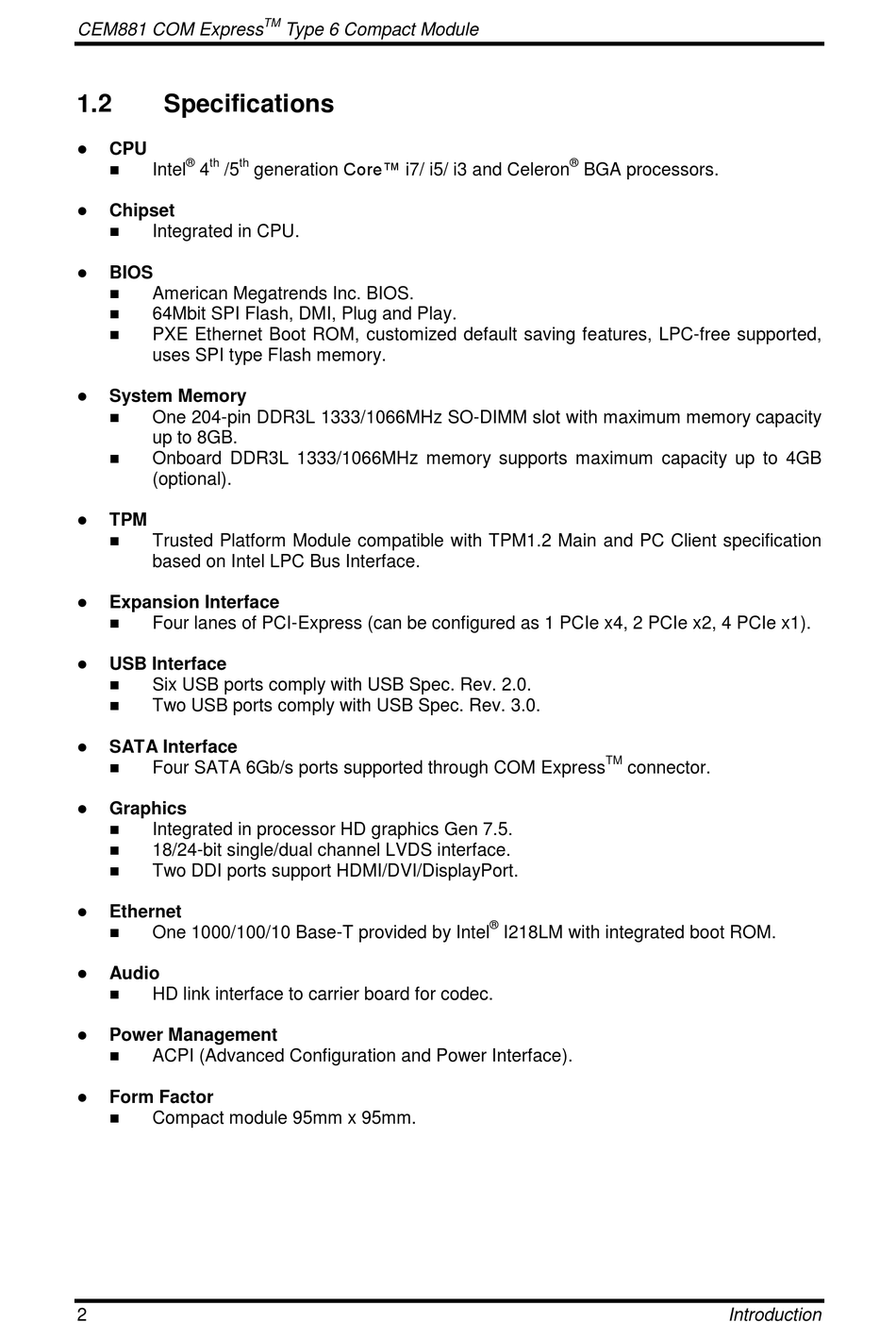

1.2

Specifications

 CPU
® th th
 Intel 4 /5

Chipset
 Integrated in CPU.
 BIOS
 American Megatrends Inc. BIOS.
 64Mbit SPI Flash, DMI, Plug and Play.
 PXE Ethernet Boot ROM, customized default saving features, LPC-free supported,
uses SPI type Flash memory.
 System Memory

One 204-pin DDR3L 1333/1066MHz SO-DIMM slot with maximum memory capacity
up to 8GB.
 Onboard DDR3L 1333/1066MHz memory supports maximum capacity up to 4GB
(optional).
 TPM
 Trusted Platform Module compatible with TPM1.2 Main and PC Client specification
based on Intel LPC Bus Interface.
 Expansion Interface
 Four lanes of PCI-Express (can be configured as 1 PCIe x4, 2 PCIe x2, 4 PCIe x1).
 USB Interface
 Six USB ports comply with USB Spec. Rev. 2.0.
 Two USB ports comply with USB Spec. Rev. 3.0.
 SATA Interface
 Four SATA 6Gb/s ports supported through COM Express
 Graphics
 Integrated in processor HD graphics Gen 7.5.
 18/24-bit single/dual channel LVDS interface.
 Two DDI ports support HDMI/DVI/DisplayPort.
 Ethernet

One 1000/100/10 Base-T provided by Intel
 Audio
 HD link interface to carrier board for codec.
 Power Management

ACPI (Advanced Configuration and Power Interface).
 Form Factor
 Compact module 95mm x 95mm.
2
TM
Type 6 Compact Module
generation Core™ i7/ i5/ i3 and Celeron
®
BGA processors.
TM
connector.
®
I218LM with integrated boot ROM.
Introduction
