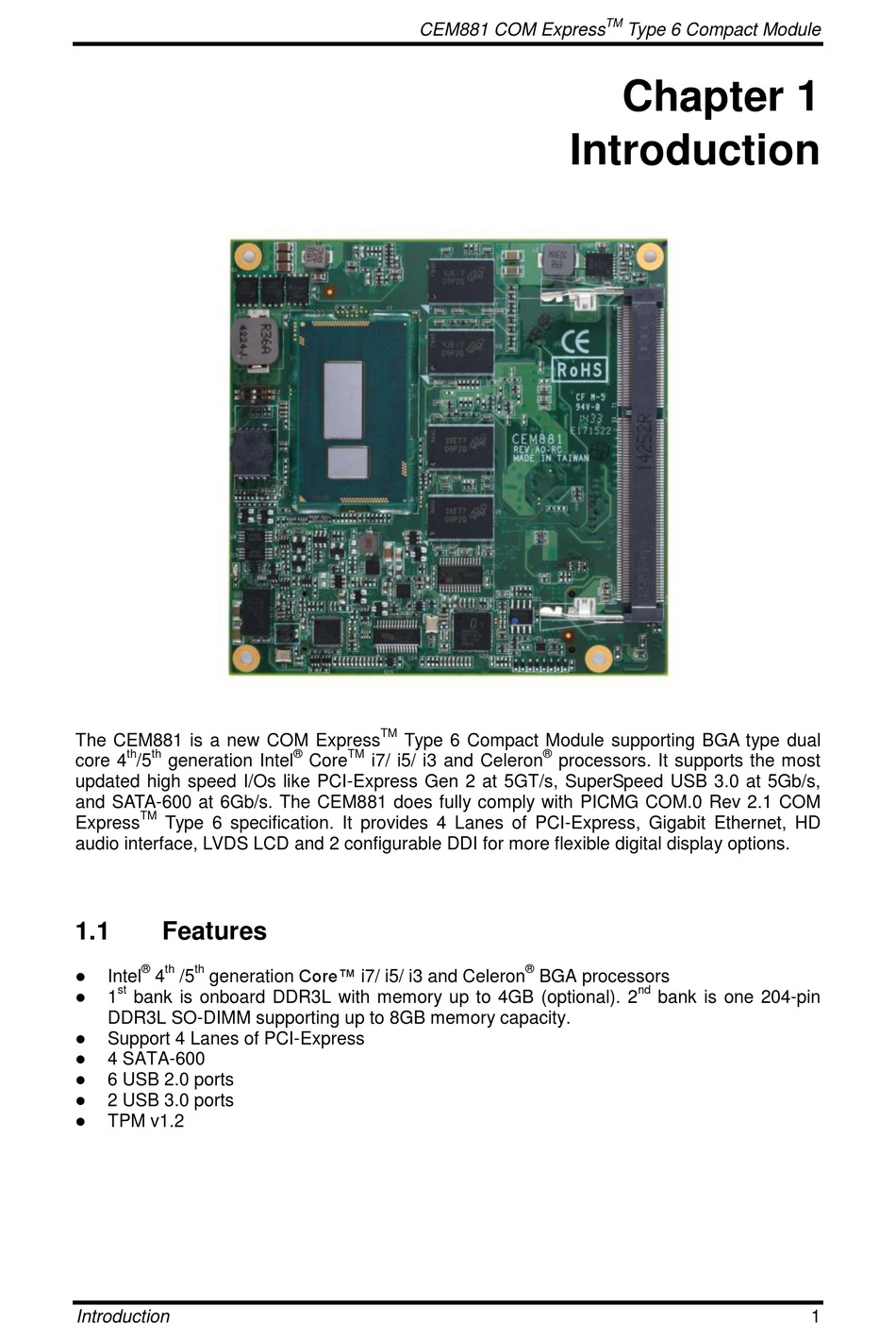

The CEM881 is a new COM Express
th th
core 4 /5 generation Intel
updated high speed I/Os like PCI-Express Gen 2 at 5GT/s, SuperSpeed USB 3.0 at 5Gb/s,
and SATA-600 at 6Gb/s. The CEM881 does fully comply with PICMG COM.0 Rev 2.1 COM
TM
Express Type 6 specification. It provides 4 Lanes of PCI-Express, Gigabit Ethernet, HD
audio interface, LVDS LCD and 2 configurable DDI for more flexible digital display options.
1.1

Features

® th th
generation Core™ i7/ i5/ i3 and Celeron
 Intel 4 /5
st
 1 bank is onboard DDR3L with memory up to 4GB (optional). 2
DDR3L SO-DIMM supporting up to 8GB memory capacity.

Support 4 Lanes of PCI-Express
 4 SATA-600
 6 USB 2.0 ports
 2 USB 3.0 ports
 TPM v1.2
Introduction
CEM881 COM Express
TM
Type 6 Compact Module supporting BGA type dual
® TM
Core i7/ i5/ i3 and Celeron
TM
Type 6 Compact Module
Chapter 1
Introduction
®
processors. It supports the most
®
BGA processors
nd
bank is one 204-pin
1
