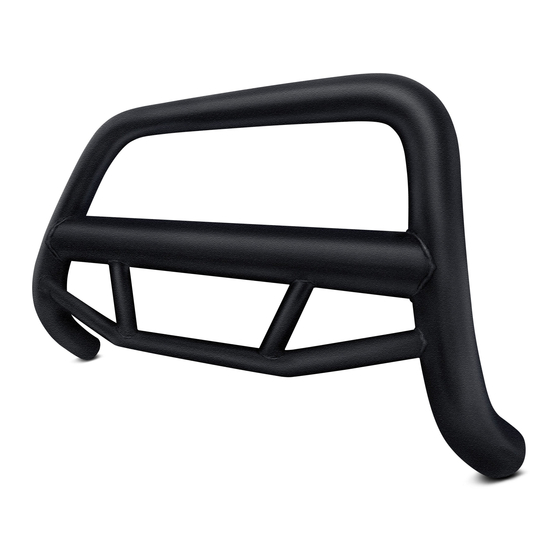

- Page 1 MAX T BULL BAR FOR 2007-2014 Toyota Fj Cruiser (BBMAX12T+MT01) INSTALLATION INSTRUCTIONS MAX T BULL BAR FOR 2007-2014 Toyota Fj Cruiser (BBMAX12T+MT01) PART # MBT-MT0112 Page 1 of 8...
-
Page 2: Before Installation
MAX T BULL BAR FOR 2007-2014 Toyota Fj Cruiser (BBMAX12T+MT01) Before Installation Please read the instruction completely for easy installation, which will also help you to avoid scratches or other potential damages to your appealing car. The figures here are for reference only and may have differences with the actual product you received, however they share the same assembly way. -
Page 3: Installation Steps
MAX T BULL BAR FOR 2007-2014 Toyota Fj Cruiser (BBMAX12T+MT01) STANDARD PARTS LIST: ○ ○ Nylon Lock Nut M10 Flat Washer D10 ○ ○ Hex Bolt M10_35 Spring Washer D8 ○ ○ Hex Bolt M8_35 Flat Washer D8 ○ ○ Large Flat Washer D10 Hex Bolt M10_110 ○... - Page 4 MAX T BULL BAR FOR 2007-2014 Toyota Fj Cruiser (BBMAX12T+MT01) STEP 1: Start installation at the driver side, front of the vehicle. Remove the factory skid plate if equipped. Starting behind the front bumper on the driver side, locate the section of rectangular frame channel attached to the back of the bumper, (Fig 1).
- Page 5 MAX T BULL BAR FOR 2007-2014 Toyota Fj Cruiser (BBMAX12T+MT01) (2) 10mm x 110mm Hex Bolts (2) 10mm x 34mm Flat Washers Front Fig 2 Fig 1 STEP 2: Repeat Step1 for the passenger side Frame Mounting Bracket installation. (2) 10mm x 34mm Large Flat Washers (2) 10mm Nylon Lock Nuts Front Front...
- Page 6 MAX T BULL BAR FOR 2007-2014 Toyota Fj Cruiser (BBMAX12T+MT01) Front (2) 8mm Hex Bolts (2) 8mm Spring Washers (2) 8mm Flat Washers Fig 5 STEP 4: With assistance, line up the Tube Mounting Brackets on the Bull Bar with the outside of the Frame Brackets.
- Page 7 MAX T BULL BAR FOR 2007-2014 Toyota Fj Cruiser (BBMAX12T+MT01) STEP 6: Install License Plate Bracket. a. Connect License Plate Bracket 1 on bull bar with (2) Assembly Bolts M6_20. b. Connect License Plate Bracket 1 and License Plate Bracket 2 with (2) Hex Button Head Bolts M6_20, (2) Flat Washers D6, (2) Spring Washer, (2) Hex Nuts M6.
- Page 8 MAX T BULL BAR FOR 2007-2014 Toyota Fj Cruiser (BBMAX12T+MT01) Complete Installation NOTE Any damages and losses caused by improper installation and application, goes beyond our quality warranty. Page 8 of 8...
