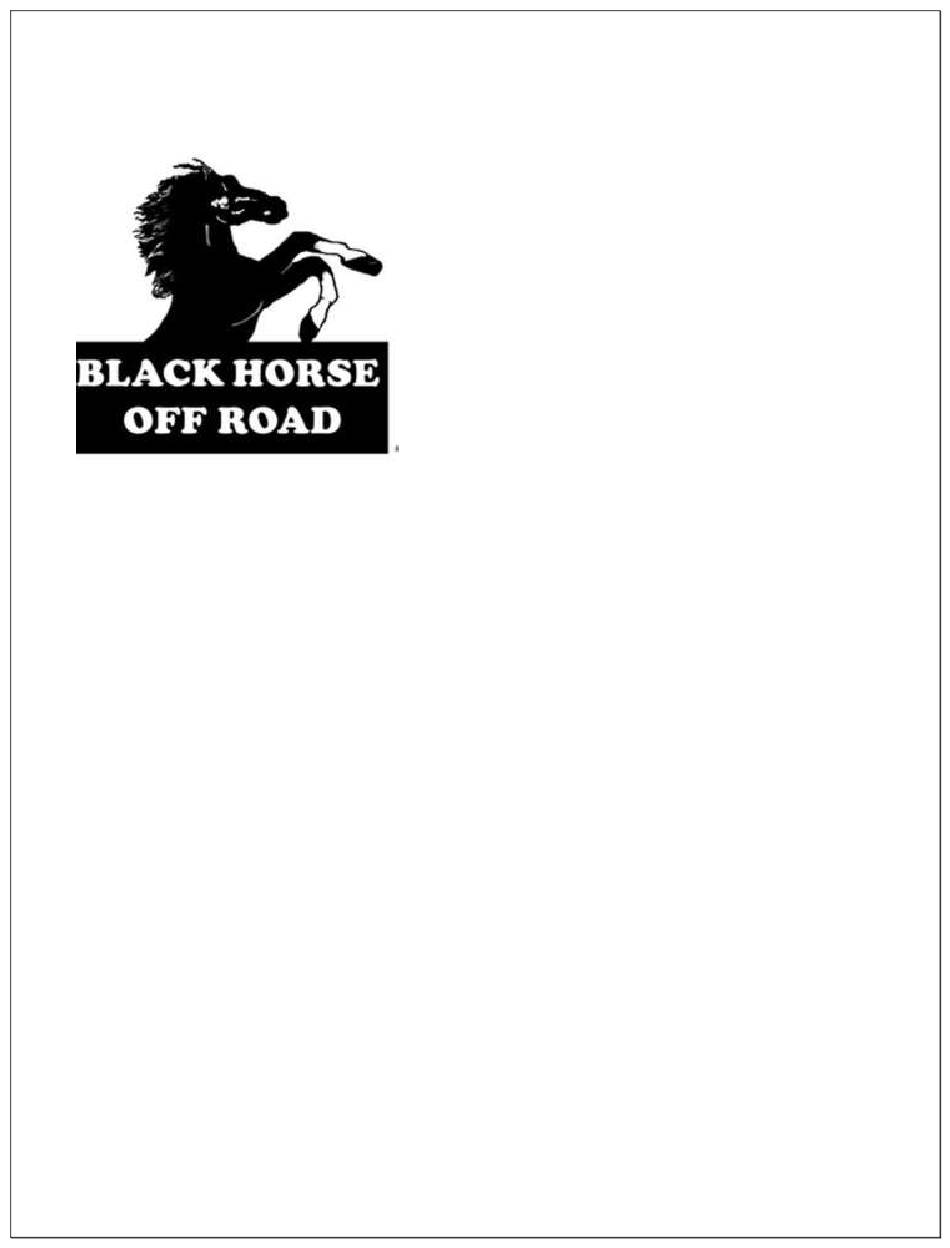

- Page 1 MAX BULL BAR FOR JEEP PATRIOT 08-18 INSTALLATION INSTRUCTIONS MAX BULL BAR FOR JEEP PATRIOT 08-18 PART # MBS-JEB9001 Page 1 of 4 4/21/11 Rev1 (DP)
- Page 2 MAX BULL BAR FOR JEEP PATRIOT 08-18 PARTS LIST: 1 Bull Bar 6 12mm Lock Washers 1 Center Bracket 4 12mm Hex Nuts 1 Driver/Left Mounting Bracket 3 10-1.50mm x 70mm Hex Bolts 1 Passenger/Right Mounting Bracket 3 10mm Lock Washers 1 Top Bracket 3 10mm x 27mm OD x 3mm Flat Washers 10mm Nut Plates (Use for models w/plastic...
- Page 3 MAX BULL BAR FOR JEEP PATRIOT 08-18 on the Center Bracket, (Figure 5). Insert (1) 10mm x 70mm Hex Bolt, (1) 10mm Lock Washer and (1) 10mm Flat Washer through the Bracket, Spacer and into the Nut Plate, (Figure 5). Repeat this step for the two outer mounting locations on the Center Bracket.
- Page 4 MAX BULL BAR FOR JEEP PATRIOT 08-18 Cut 3-1/2” openings where indicated to 10mm Nut Plate clear mounting tabs on Cross Bar. Double-check location before cutting. Front Front Fig 3 Fig 4 12mm x 50mm Hex Bolt 12mm Lock Washer Tube Spacer 12mm Flat Washer 10mm Nut Plate...
