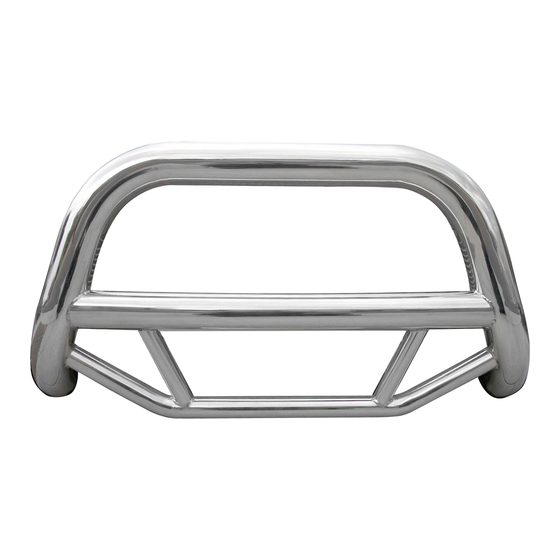

- Page 1 MAX T BULL BAR FOR 2017-2020 Ford F250/F350/F450/F550 SUPER DUTY INSTALLATION INSTRUCTIONS MAX T BULL BAR FOR 2017-2020 Ford F250/F350/F450/F550 SUPER DUTY PART # MBT-MF103 Page 1 of 7...
- Page 2 MAX T BULL BAR FOR 2017-2020 Ford F250/F350/F450/F550 SUPER DUTY Before Installation ⚫ Please read the instruction completely for easy installation, which will also help you to avoid scratches or other potential damages to your appealing car. ⚫ The figures here are for reference only and may have differences with the actual product you received, however they share the same assembly way.
- Page 3 MAX T BULL BAR FOR 2017-2020 Ford F250/F350/F450/F550 SUPER DUTY ○ ○ Hex Nut M6 Assembly Bolt M6_20 ○ ○ Flat Washer D6（6x12x1.6mm） Hex Button Head Bolt M6_20 ○ ○ Spring Washer D6 Allen Wrench S=4 Installation Steps Installation Figure: STEP 1: Start installation at the driver/left side, front of the vehicle.
- Page 4 MAX T BULL BAR FOR 2017-2020 Ford F250/F350/F450/F550 SUPER DUTY STEP 2: Select the driver side Mounting Bracket. Determine procedure for your model year. 2017-19 models only: a. Select (1) Spacer Plate, (Fig 4). Place the Spacer over the holes for the bumper bolts, between the bumper and the Bracket.
- Page 5 MAX T BULL BAR FOR 2017-2020 Ford F250/F350/F450/F550 SUPER DUTY 2020 models only: Reuse the factory bumper bolts to attach the Mounting Bracket to the bumper, note no Spacers are required. STEP 3: Make sure there is clearance between the top and bottom of the Bracket and the opening in the bumper.
- Page 6 MAX T BULL BAR FOR 2017-2020 Ford F250/F350/F450/F550 SUPER DUTY STEP 7: Install License Plate Bracket. a. Connect License Plate Bracket 1 on bull bar with (2) Assembly Bolts M6_20. b. Connect License Plate Bracket 1 and License Plate Bracket 2 with (2) Hex Button Head Bolts M6_20, (2) Flat Washers D6, (2) Spring Washers D6, (2) Hex Nuts M6.
- Page 7 MAX T BULL BAR FOR 2017-2020 Ford F250/F350/F450/F550 SUPER DUTY Complete Installation NOTE Any damages and losses caused by improper installation and application, goes beyond our quality warranty. Page 7 of 7...
