Page 1: Installation Instructions

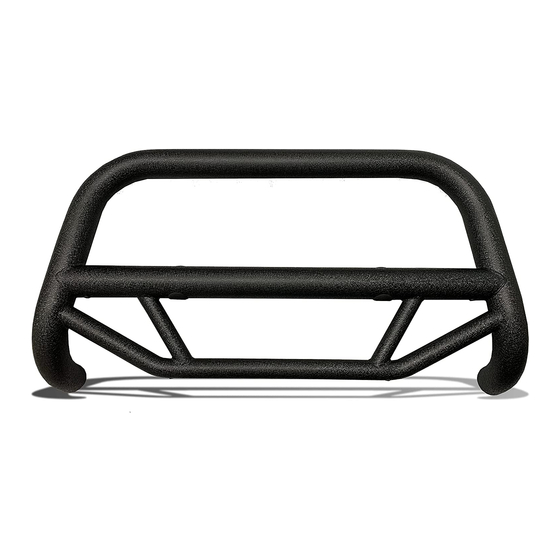

MAX T BULL BAR FOR 2019-2020 Dodge Ram 1500 (BBMAX12T+MR15) TEL：1-866-XANATOS INSTALLATION INSTRUCTIONS MAX T BULL BAR FOR 2019-2020 Dodge Ram 1500 (BBMAX12T+MR15) PART # MBT-MR1512 Page 1 of 9... -
Page 2: Before Installation
MAX T BULL BAR FOR 2019-2020 Dodge Ram 1500 (BBMAX12T+MR15) Before Installation ⚫ Please read the instruction carefully before starting installation, which will help you to avoid scratches or other potential damages to your appealing car. ⚫ The figures here are for reference only and may have differences with the actual product you received, however they share the same assembly way. - Page 3 MAX T BULL BAR FOR 2019-2020 Dodge Ram 1500 (BBMAX12T+MR15) ○ ○ Support Bracket (R) Bracket 1 License Plate ○ ○ Bracket 2 License Plate 8mm PVC Plastic Retainers ○ ○ M6_20 Blot Plates M8x30 Combo Bolts ○ ○ Hex Bolts M6_20 Hex Bolts M12_35 ○...
-
Page 4: Installation Steps
MAX T BULL BAR FOR 2019-2020 Dodge Ram 1500 (BBMAX12T+MR15) Installation Steps Installation Fig. STEP 1: Start installation under the front bumper. Carefully remove the plastic lower air dam attached to the bottom of the bumper. Do not remove the electronic “active air dam” behind the bumper if equipped. Pay close attention to the type and location of all factory hardware for reinstallation. - Page 5 MAX T BULL BAR FOR 2019-2020 Dodge Ram 1500 (BBMAX12T+MR15) Front Body bolt (Fig 1) Driver/left mounting location pictured from behind bumper STEP 3: Next, Remove the (2) factory hex bolts attaching the bumper to the bumper bracket, (Fig 2). Select the driver/left Frame Mounting Bracket.
- Page 6 MAX T BULL BAR FOR 2019-2020 Dodge Ram 1500 (BBMAX12T+MR15) Loosen but do not remove the hex bolt from the bottom of the frame, (Figs 1 & 5). Select the driver/left Support Bracket, (Fig 4). Insert the slotted end of the Bracket under the hex bolt. a.
- Page 7 MAX T BULL BAR FOR 2019-2020 Dodge Ram 1500 (BBMAX12T+MR15) Line up the lower end of the Support Bracket with the slot in the Frame Bracket. Attach the Support Bracket to the Frame Bracket with (1) 8mm x 30mm Hex Bolt, (2) 8mm Flat Washers, (1) 8mm Lock Washer and (1) 8mm Hex Nut, (Fig 4).
- Page 8 MAX T BULL BAR FOR 2019-2020 Dodge Ram 1500 (BBMAX12T+MR15) (2) 12mm x 35mm Hex Bolt (4) 12mm Flat Washers (2) 12mm Lock Washers (2) 12mm Hex Nuts Front (Fig 7) Attach Guard to Mounting Brackets STEP 9: Stand back from the vehicle and check to see that the Guard is centered and level on the vehicle and adjust as necessary.
- Page 9 MAX T BULL BAR FOR 2019-2020 Dodge Ram 1500 (BBMAX12T+MR15) STEP 11: Reinstall the air dam using the factory hardware. NOTE: It may be necessary to loosen the Bracket hardware to reinstall the air dam. Installation pictured without the air dam For instruction purposes only STEP 12: Reinstall the Guard as described in Step 8.
