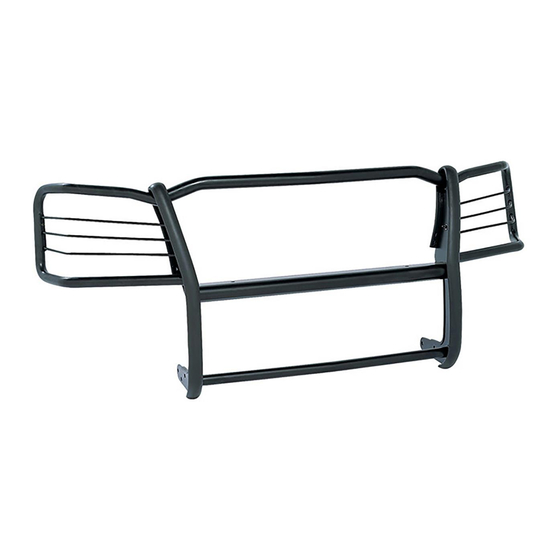

- Page 1 BLACK MODULAR GRILLE GUARD FOR FORD F250/F350/F450/F550 SUPERDUTY 11-16 INSTALLATION INSTRUCTIONS BLACK MODULAR GRILLE GUARD FOR FORD F250/F350/F450/F550 SUPERDUTY 11-16 PART # 17FB26MA Page 1 of 7 8/23/10 (DP)
-
Page 2: Parts List
BLACK MODULAR GRILLE GUARD FOR FORD F250/F350/F450/F550 SUPERDUTY 11-16 PARTS LIST: NAME NAME ○ ○ Bush Guard Wing L Guard ○ ○ Bush Guard Wing R Bracker（L） ○ ○ Bracker（L） Bracker（R） ○ ○ Nut M8 Bracker（R） ○ ○ Spring washer D8 Big washer D8 ○... - Page 3 BLACK MODULAR GRILLE GUARD FOR FORD F250/F350/F450/F550 SUPERDUTY 11-16 ○ ○ Spring washer D12 Big washer D12 ○ ○ Hex bolt M12_40 Flat washer D12 ○ Hex Allen Wrench S=5 Firstly,install the bush guard wing(L&R) to the guard as the picture shown. Spring Washer D8 Hex Bolt M8 Nut M8...
- Page 4 BLACK MODULAR GRILLE GUARD FOR FORD F250/F350/F450/F550 SUPERDUTY 11-16 Passenger/Right Driver/Left Side Side Frame Frame Mounting Mounting Bracket Bracket Complete Installation Passenger/Right Lower Driver/Left Lower Mounting Bracket Mounting Bracket PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 5 BLACK MODULAR GRILLE GUARD FOR FORD F250/F350/F450/F550 SUPERDUTY 11-16 included (6) 12mm x 40mm Hex Bolts, (12) 12mm x 37mm OD Large Flat Washers, (6) 12mm Lock Washers and (6) 12mm Hex Nuts, (Figure 5). Do not tighten hardware at this time. 8.
- Page 6 BLACK MODULAR GRILLE GUARD FOR FORD F250/F350/F450/F550 SUPERDUTY 11-16 Driver Side Installation Pictured Front Remove (2) factory hex nuts Remove (2) factory hex nuts Front Fig 3 (2) 12mm x 40mm Hex Bolts (4) 12mm 24mm STD OD Flat Washers (2) 12mm Lock Washers (2) 12mm Hex Nuts (Fig 4) Viewed from behind bumper...
- Page 7 BLACK MODULAR GRILLE GUARD FOR FORD F250/F350/F450/F550 SUPERDUTY 11-16 Driver Side Installation Pictured Transfer measurement from Figure 6 to top of air dam Fig 6 Clip for factory screw Fig 7 Front Fig 8 Front Measurement from top of Bracket to bumper (see Fig 8) Do not cut through the top or bottom edges Measurement from bottom of of the air dam.
