Javad HPT435BT JL How To Set Up page 4

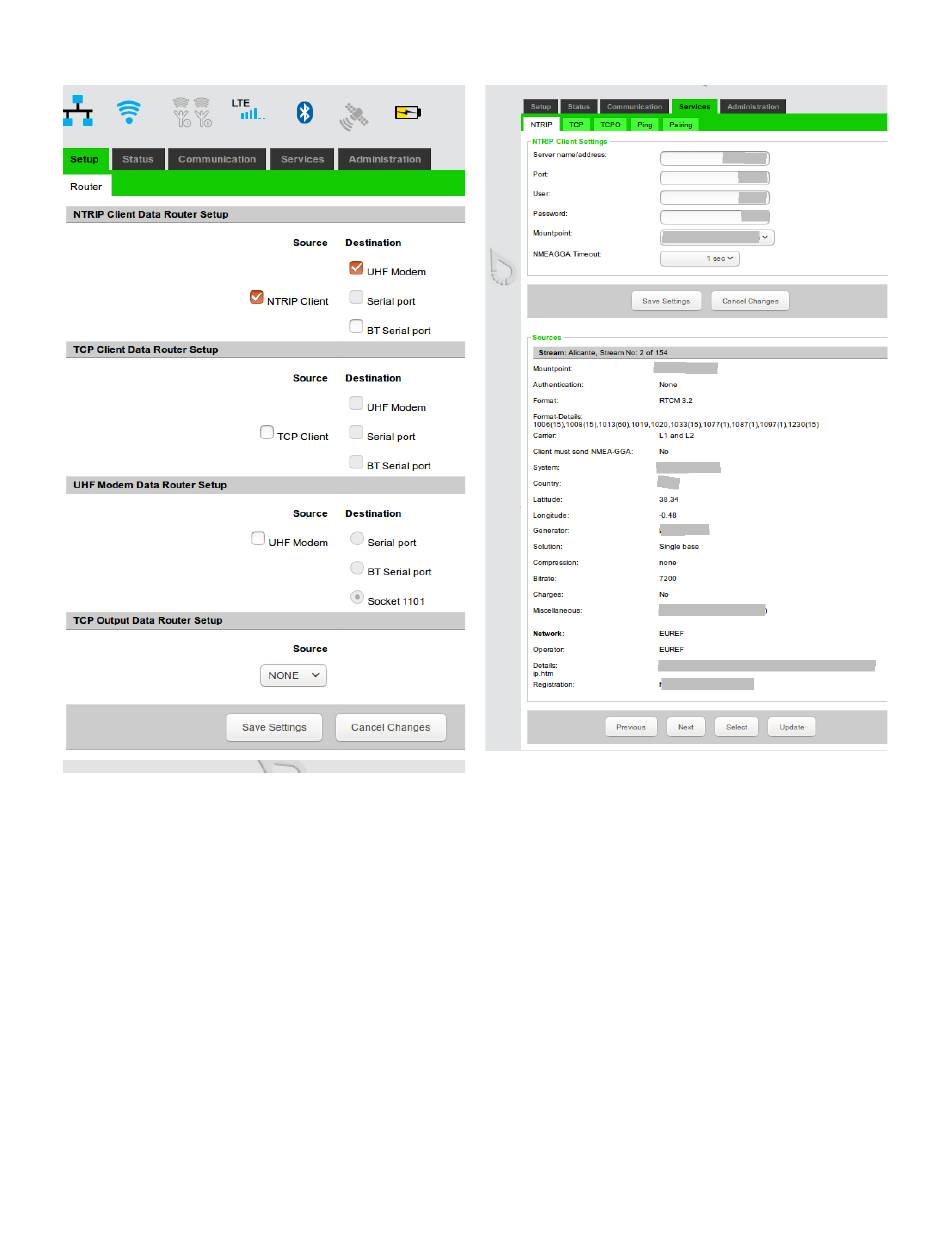

Figure 6. HPT435BT JL NTRIP Data Router tab
5. Setup NTRIP Client
• In the Services/NTRIP tab set the following
parameters: "Server name/address", "Port",
"User" , "Password".
• Click "Save Setting" and wait until finish.
• Click '"Update" and select "Mountpoint" .
• Click "Save Setting" and wait until finish
(Figure 7).
HOW TO
Figure 7. HPT435BT JL NTRIP configuration tab
• If the Ntrip caster needs NMEA-GGA which
you can see in picture 8 (field Client must
send NMEA-GGA is "Yes"), needed activate
GNSS from the Communication/Power Man-
agement tab.
• Detailed connection status you can check in
the Status/NTRIP tab (Figure 8).
