Javad HPT435BT JL How To Set Up page 3

• The detailed connection status you can
check in the Status/GSM tab (see Figure 4).
It is possible also to connect HPT435BT JL to the
Internet via LAN or Wi-Fi using any Wi-Fi router,
MiFi device or even smart-phone configured in
hot spot mode.

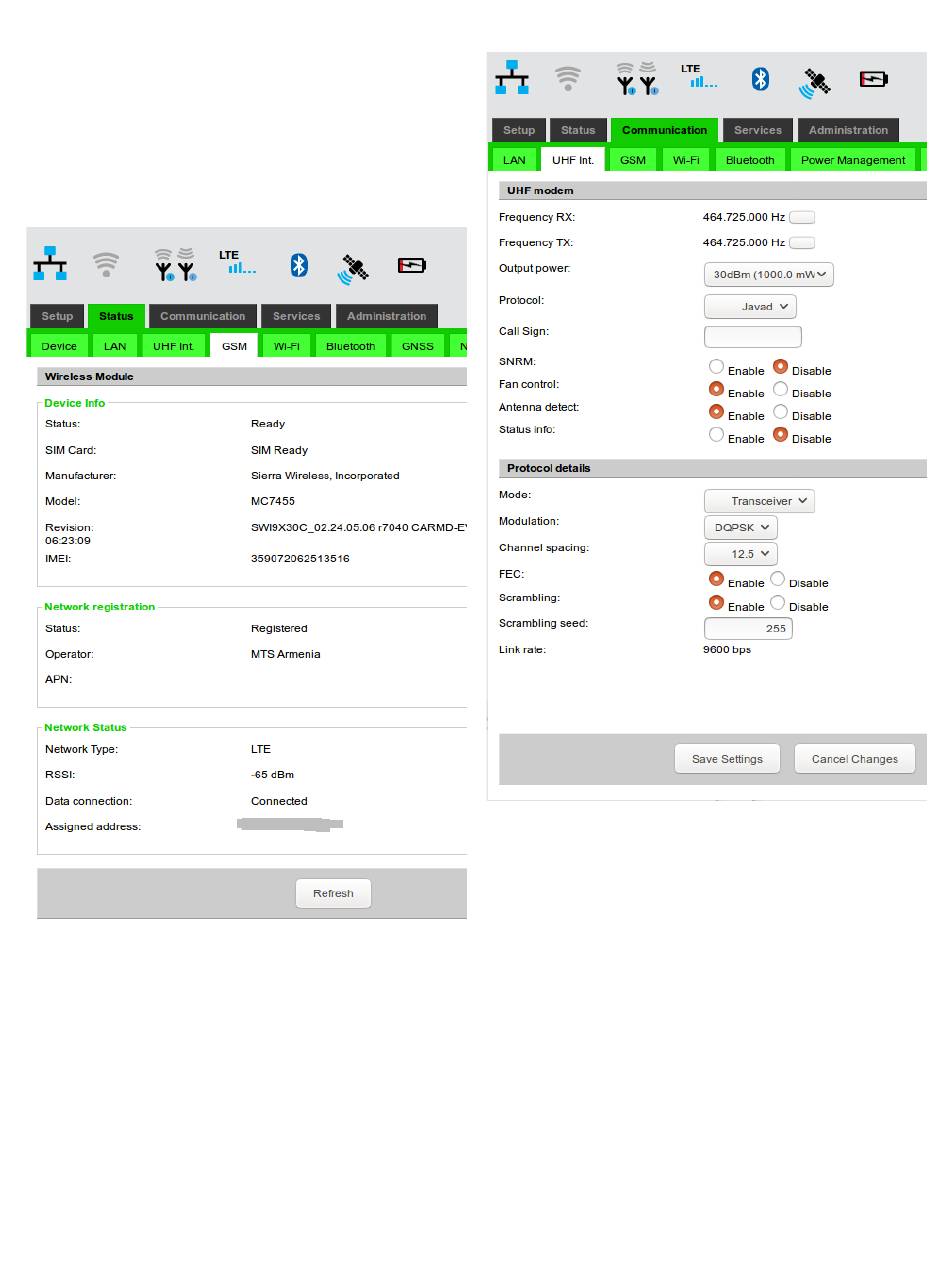

Figure 4. HPT435BT JL GSM Status tab
3. Setup UHF
• In the Communication/UHF Int. tab select
Modem parameters (Figure 5).
Figure 5. HPT435BT JL UHF Int. tab
• In the Communication/Power Management
tab activate the UHF interface (see Figure 3
on page 2).
4. Setup Data Router
• In the Setup/Router tab select following
parameters "NTRIP Client" as Source and
"UHF" as Destination.
• Click "Save Setting" and wait until finish
(Figure 6).
