Javad HPT435BT JL How To Set Up page 2

Setup HPT435BT JL to provide RTK
data received via NTRIP Client
This document describes how to configure
HPT435BT JL to provide the RTK data received
via NTRIP Client to UHF.
The following are the steps of configuration of
HPT435BT JL:
1. Connect to HPT435BT JL via web interface (see
"HPT435BT JL User Manual" for the details).
2. Perform the Cellular (GSM ) configuration:
• In the Communication/GSM tab set the PIN
code and APN parameters if necessary (Fig-
ure 1).

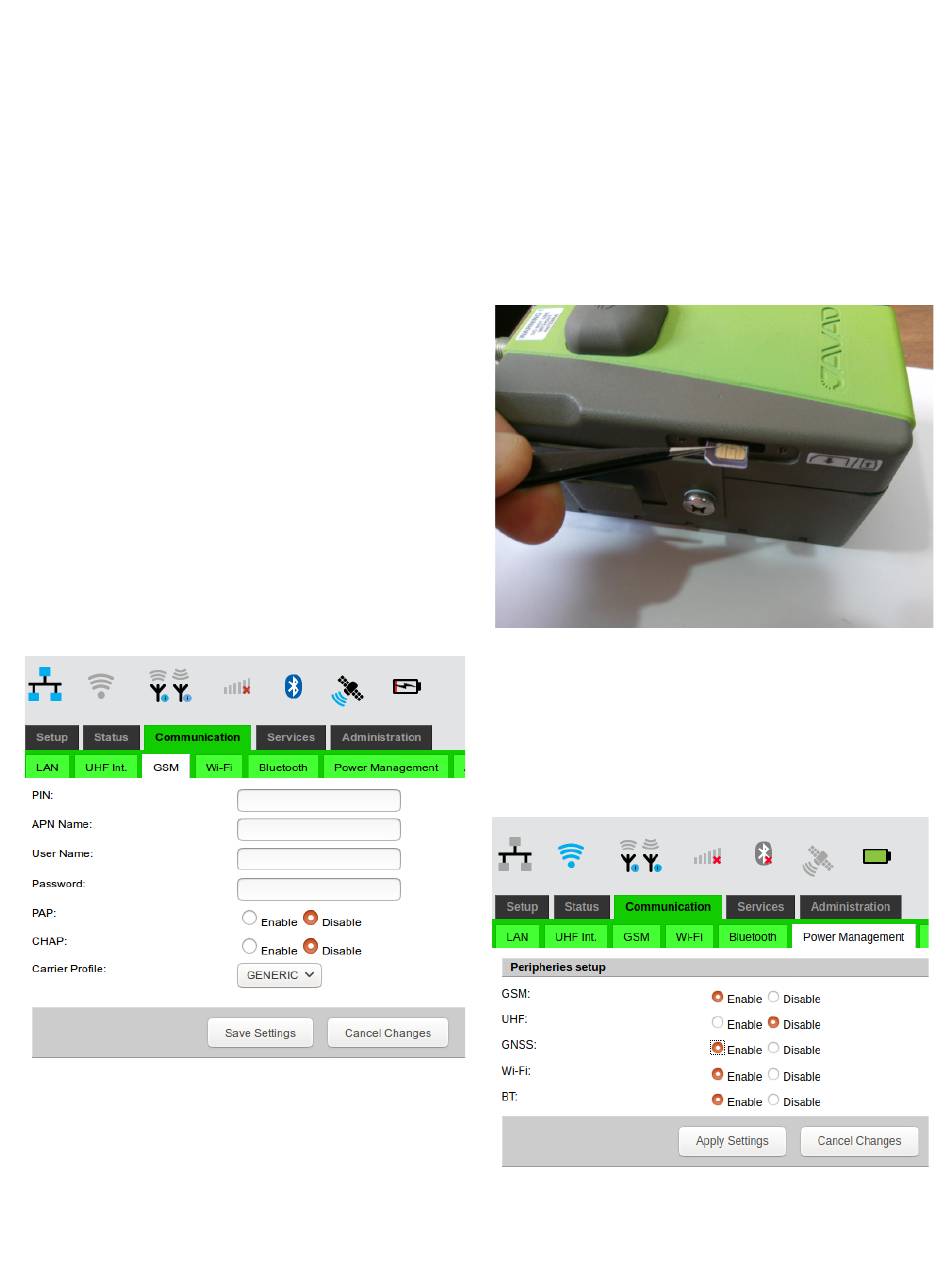

Figure 1. HPT435BT JL GSM configuration tab
• Use tweezers to install or remove the micro
SIM card. Insert the SIM card to its slot. The
first slot from the green top cover is for mi-
cro-SIM; the second slot is for micro-SD (Fig-
ure 2).
to UHF
Figure 2.
tion
• In the Communication/Power Management
tab activate the GSM interface (Figure 3). And
wait for registering in the network and Inter-
net access availability .
Figure 3.
HPT435BT JL micro SIM card installa-
HPT435BT JL Power Management tab
