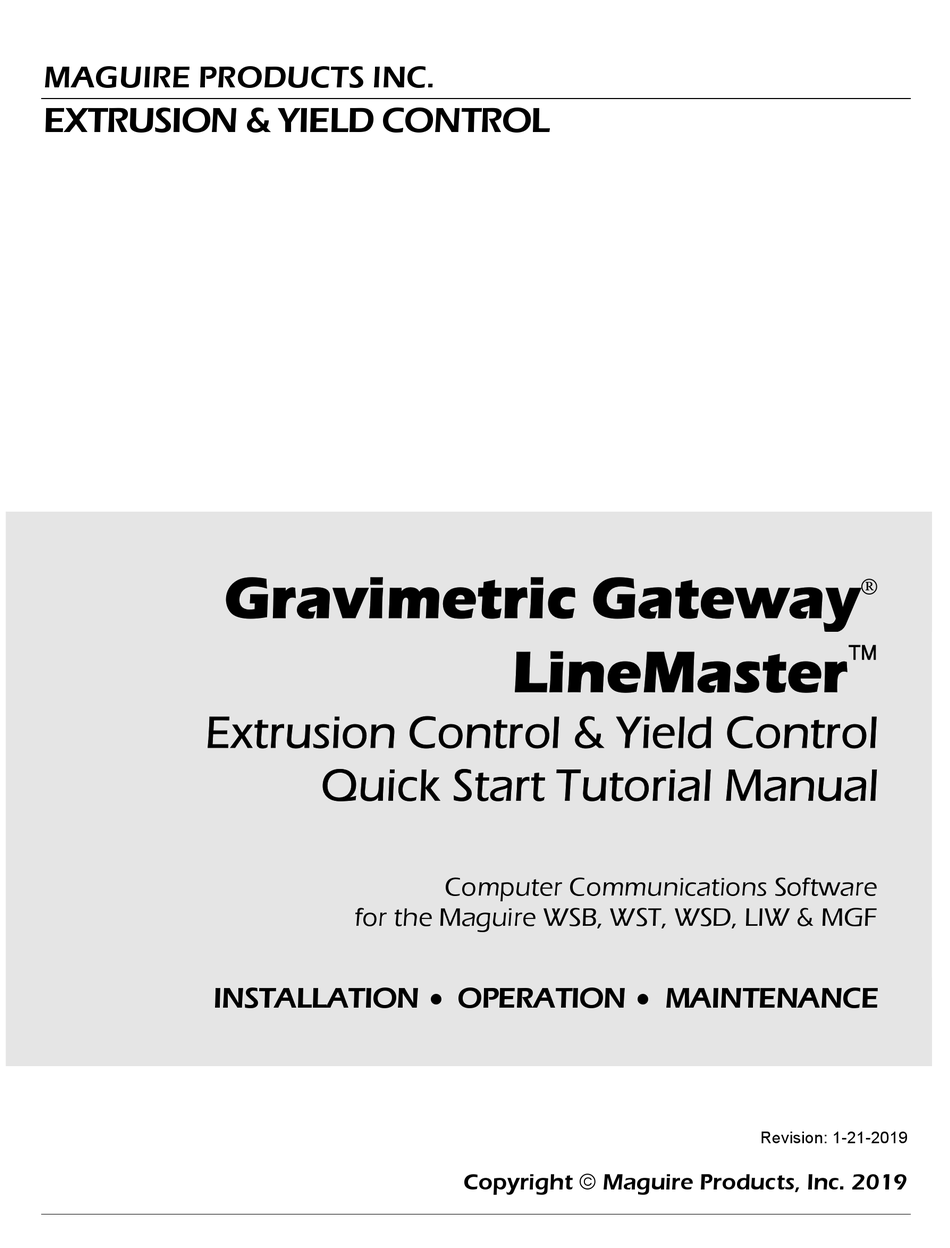

MAGUIRE PRODUCTS INC.
EXTRUSION & YIELD CONTROL
Gravimetric Gateway
LineMaster
Extrusion Control & Yield Control
Quick Start Tutorial Manual
Computer Communications Software
for the Maguire WSB, WST, WSD, LIW & MGF
INSTALLATION  OPERATION  MAINTENANCE
Revision: 1-21-2019
Copyright  Maguire Products, Inc. 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gravimetric Gateway LineMaster and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MAGUIRE Gravimetric Gateway LineMaster

Summary of Contents for MAGUIRE Gravimetric Gateway LineMaster

  • Page 1 EXTRUSION & YIELD CONTROL Gravimetric Gateway   LineMaster Extrusion Control & Yield Control Quick Start Tutorial Manual Computer Communications Software for the Maguire WSB, WST, WSD, LIW & MGF INSTALLATION  OPERATION  MAINTENANCE Revision: 1-21-2019 Copyright  Maguire Products, Inc. 2019...
  • Page 2 Maguire Products, Inc. LineMaster...
  • Page 3 To avoid errors and to ensure trouble-free operation, it is essential that these operating instructions are read and understood by all personnel who are to use the equipment. Should you have problems or difficulties with the equipment, please contact Maguire Products Inc. or your local Maguire distributor.

  • Page 4: Table Of Contents

    Maguire Products, Inc. LineMaster Table of Contents: LineMaster Overview LineMaster Kits and Components Parts Identification LineMaster Kits LineMaster Installation Safety Warnings Loss-In-Weigh Hopper Installation General Wiring Installation Notes XC-1 – Extrusion Control Installation XC-1 – Extrusion Control Wiring Diagram XC-2 – Yield Control X or Yield Control T Installation XC-2 –...

  • Page 5: Linemaster Overview

     Increased line productivity with fast start-up and reduced production scrap  Quick product changeover  Alarms and user security WEIGHT MEASUREMENT OPTIONS Basic Extrusion Control with Maguire ® Blender Extrusion line throughput may be determined by monitoring material consumption as recorded by the batch weighing process of the blender divided by the time the batch takes to be consumed.
  • Page 6 The weight consumption data can be reported to one of two control options: Enhanced Extrusion Control with a Maguire blender integrates the extrusion control functions into the blender controller for a single point of control. The second option is Enhanced LIW Extrusion Control, which utilizes LineMaster Control Operator Interface (XCC) to be used as a stand-alone solution for throughput or yield control.
  • Page 7 A brief overview of G2 A Gravimetric Gateway Server (G2 Server) provides communication with all Maguire controllers for data collection and control. The G2 software enables communication directly from the server with one or more blender or loss-in-weight controllers to connect remotely from anywhere over a TCP/IP network using the Gravimetric Gateway Client software.
  • Page 8 Maguire Products, Inc. LineMaster REDUCE RESIN CONSUMPTION WITH ENHANCED GRAVIMETRIC EXTRUSION YIELD CONTROL The diagram on the following page illustrates a 3-layer film line utilizing LineMaster Extrusion Control. Loss-in-weight hoppers are mounted on 3 extruders that are feeding the die producing the film bubble.
  • Page 9 Maguire Products, Inc. LineMaster...
  • Page 10 Maguire Products, Inc. LineMaster ® Overview - XC-1 LineMaster Throughput Control (lb/hr or kg/hr) Monitors throughput - Adjusts extruder drive speed to maintain product weight per hour aspc0910 LIW w/ XCC EXTRUDER XCD-X Product Drive Speed Control Component Installation The system is comprised of a mass flow hopper assembly, a controller with operator interface and a drive speed control package.
  • Page 11 Maguire Products, Inc. LineMaster Typical Start-up Upon a first time start-up of the process, the throughput control system is placed in the Manual Mode. The LIW controller learns the rate of the material flow through the mass flow hopper within 45 seconds and enters the logarithmic value in the control parameters.
  • Page 12 Maguire Products, Inc. LineMaster ® Overview - XC-2X LineMaster Extrusion Yield Control w/ Extruder Drive Control Monitors process throughput and take-off speed, controls extruder drive speed to maintain product yield (weight per length) aspc2210 aspc0910 LIW w/ XCC Encoder XCE-01...
  • Page 13 Maguire Products, Inc. LineMaster Typical Start-up Upon a first time start-up of the process, the yield control system is placed in the Manual Mode. The LIW controller learns the rate of the material flow through the mass flow hopper within 45 seconds and enters the logarithmic value in the control parameters.
  • Page 14 Maguire Products, Inc. LineMaster ® Overview - XC-2T LineMaster Extrusion Yield Control - Take-off Drive Control Provides control of haul-off to maintain weight per length via feedback from encoder mounted on downstream haul-off aspc0910 Line Speed Control XCD-T aspc2210 LIW w/ XCC...
  • Page 15 Maguire Products, Inc. LineMaster drive to maintain the desired product yield. The reaction of the LIW system to the process rate change is almost instantaneous and will settle at the desired yield within 45 seconds of the process reaching the final speed.
  • Page 16 Maguire Products, Inc. LineMaster ® XC-3 LineMaster Yield Control – Extruder & Take-off Drive Control Monitors throughput and line speed. Adjusts extruder and line speed to maintain product weight per length. Requires XC-C LineMaster computer controller and is typically used for multi-layer co- ex applications.
  • Page 17 Maguire Products, Inc. LineMaster Upon a first time start-up of the process, the yield control system is placed in the Manual Mode. The LIW controller learns the rate of the material flow through the mass flow hopper within 45 seconds and enters the logarithmic value in the control parameters. The controller will display the learned yield rate and indicate the process can be switched into the Auto or Locked Mode.

  • Page 18: Linemaster Kits And Components

    Maguire Products, Inc. LineMaster LineMaster Kits and Components Parts Identification Extruder Speed Control Take-off Speed Control LineMaster Controller Encoder, Encoder Wheel 100 foot cable 24 volt power supply Maguire LIW 5 Maguire LIW 10 Maguire LIW 20 Maguire LIW 40...

  • Page 19: Linemaster Kits

    Maguire Products, Inc. LineMaster LineMaster Kits Depending on the application your kit may include the following: o Extrusion Control – LineMaster Controller, Extruder Speed Control Interface, Cabling and strain relief. o Yield-X - LineMaster Controller, Extruder Speed Control Interface, Cabling, cable strain relief, mounting hardware, 24 Volt Power Supply, Encoder, Encoder Wheel (12 inch circumference), Encoder Cable.

  • Page 20: Linemaster Installation

    Maguire Products, Inc. LineMaster  LineMaster Installation In this section: Safety Warnings  Loss-In-Weigh Hopper Installation  General Wiring Installations Notes and Considerations  XC-1 – Extrusion Control Installation  XC-2 - Yield Control X or Yield Control T Installation ...

  • Page 21: Loss-In-Weigh Hopper Installation

    Maguire Products, Inc. LineMaster Unpacking and Setup Unpacking - Removing from Carton Cut sides and top flaps, unscrew screws and washers from the sides at the skid. Remove carton, remove cardboard tray at the top of the carton. Cut and remove plastic wire ties from the LIW hopper located at the top of the hopper inside the black frame member.
  • Page 22 Maguire Products, Inc. LineMaster Install LIW Controller Unpack the LIW controller and hang the controller box to the Controller Mount plate located on the side of the LIW frame. Have the controller using the protruding screw heads on the back of the controller and the notches on the mount plate. The controller can be secured in place using one ¼-20 x ¾...

  • Page 23: General Wiring Installation Notes

    Maguire Products, Inc. LineMaster General Wiring Installations Notes: Wire Installations – Preventing Interference or Damage When installing communication wires, be sure to avoid any sources of interference such as vacuum loader lines (discharged static), high voltage lines and transformers and florescent lights. You should avoid these...
  • Page 24 Maguire Products, Inc. LineMaster Wiring Consideration The wiring of your communication lines is very important for reliable operation. To minimize problems, consider the following: Communication lines are low voltage lines. Be sure that these lines are not bundled to any high voltage lines.

  • Page 25: Extrusion Control Installation

    Maguire Products, Inc. LineMaster XC-1 – Extrusion Control Installation The XC-1 kit involves the installation of the following components:  LineMaster Controller  Extruder Drive Control  Cabling  Optional 24 volt power supply Install the XCD-X Extruder Drive Control in your desired location.

  • Page 26: Extrusion Control Wiring Diagram

    Maguire Products, Inc. LineMaster XC-1 – Extrusion Control Wiring Diagrams...
  • Page 27 Maguire Products, Inc. LineMaster...

  • Page 28: Yield Control X Or Yield Control T Installation

    Maguire Products, Inc. LineMaster XC-2 - Yield Control X or Yield Control T Installation The XC-2 kit involves the installation of the following components:  LineMaster Controller  Extruder Drive Control  Take-Off Drive Control  Control Cabling  Mounting hardware ...

  • Page 29: Yield Control X Or Yield Control T Wiring Diagram

    Maguire Products, Inc. LineMaster XC-2 - Yield Control X or Yield Control T Wiring Diagrams...
  • Page 30 Maguire Products, Inc. LineMaster...

  • Page 31: Yield D Installation

    Maguire Products, Inc. LineMaster XC-3 – Yield D Installation The XC-3 kit involves the installation of the following components: LineMaster Controller  Extruder Speed Control Interface  Take-off Speed Control Interface  LineMaster Cabling  Mounting hardware  24 Volt Power Supply ...
  • Page 32 Products does not supply Ethernet components. With serial networks, Maguire Products can supply pre-terminated standard lengths of serial cable and connector boxes. Please speak to a Maguire sales person or review the Pre-sales Guide on our website for more information. http://www.maguire.com/page.php/g2manuals.htm...

  • Page 33: Yield D Wiring Diagram

    Maguire Products, Inc. LineMaster XC-3 – Yield D Wiring Diagrams...
  • Page 34 Maguire Products, Inc. LineMaster...

  • Page 35: Linemaster Operation

    Maguire Products, Inc. LineMaster  LineMaster Operation Standalone Operation – Standalone operation uses the hardware only to control the equipment. G2 Software Operation – G2 software operation uses both the hardware and G2 software to control the equipment. Standalone Operation...
  • Page 36 Maguire Products, Inc. LineMaster Adjustments When in the locked mode, manual adjustments to the rate of throughput can be entered through the LineMaster (XCC) Controller. Adjustments can be made two ways: Incremental Adjustments Incremental adjustments are made using the up and down arrows on the keypad of the LineMaster (XCC) Controller.

  • Page 37: Yield Control X Or Yield Control T

    Maguire Products, Inc. LineMaster XC-2 - Yield Control X or Yield Control T XC-2 offers the ability to maintain a product’s weight per length (lb/ft or gm/M) by monitoring the process throughput against the line speed. An XCE Digital Encoder mounted on a take-off device monitors the line speed.
  • Page 38 Maguire Products, Inc. LineMaster Adjustments When in the locked mode, manual adjustments to the rate of grams per length (g/l) can be entered through the LineMaster (XCC) Controller. Adjustments can be made two ways: Incremental Adjustments Incremental adjustments are made using the up and down arrows on the keypad of the LineMaster (XCC) Controller.
  • Page 39 Maguire Products, Inc. LineMaster YLDT Mode 4. With the LineMaster Take-off Speed Control in the MANUAL position, turn main power of LineMaster (XCC) Controller ON. Display will read: 0.0 g/l YLDT UNLOCKED 5. Once the Extruder is running, material will start to flow through the Loss-in-weight hopper.

  • Page 40: Yield D

    Maguire Products, Inc. LineMaster LOCK Options On the LineMaster (XCC) Controller keypad, between the up and down arrows, is a LOCK key. This LOCK key can be used to Lock grams per length (g/l), overriding the LineMaster Extruder Speed Control MANUAL / LOCK switch.

  • Page 41: Gravimetric Gateway Software (G2)

    The Gravimetric Gateway® Server, G2 Server, is the name we give to the server software written exclusively for the MAGUIRE Weigh Scale Blenders. The G2 Server enables you to communicate directly from the server with one or more WSB controllers or connect remotely from anywhere over a TCP/IP network using the Gravimetric Gateway®...
  • Page 42 Communication Network The communication network to the Maguire WSB, LIW, MGF controllers can be serial or Ethernet depending on how they are equipped. WSB Controllers produced from 1992 to 2006 (6811 processor, red display) are equipped with serial only.

  • Page 43: G2 Software Setup And Operation

     Security Key for Licensed Mode  G2 Server Start Up  G2 Client Start Up  Adding your Maguire Weigh Scale Blenders to the software (WSB, LIW, MGF)  Serial Communication Network Setup  Ethernet Communication Network Setup G2 Software Installation From the download or installation CD or USB, run G2-5.3.6-FULL-Setup.exe or...
  • Page 44 Plug the G2-SA (G2-SK) into an available COM port on the G2 Server Computer. USB Security Key - Maguire part # G2-SA-E or G2-SK-E. Connects to a USB port on the G2 Server. Serves as the security key in Licensed Mode. For installations using Ethernet only communication to the blenders.
  • Page 45 G2 Client - Setup and Using the Software First-Time setup of the G2 software includes the following steps within the G2 Client. Basic Setup:  Adding the Maguire Blenders  Setting the End of Day Time  Setting the Retrieval Times Advanced Setup: ...
  • Page 46 Special Functions, Setup, Blender I.D. Setting the IP address - The IP Address of a Maguire controller must be set as a static IP address. DHCP is an option but the IP must remain static for ongoing communication from the G2 software.
  • Page 47 Maguire Products, Inc. LineMaster Adding Maguire Controllers to G2 You must add your Maguire controllers to the G2 software. G2 will not auto-detect WSBs, LIWs or MGFs. This is done in the Edit / Blenders Screen of the G2 Client program. In the G2 Client menu, select Edit, then Blenders.
  • Page 48 Maguire Products, Inc. LineMaster Creating Lines Lines are groups of LIW hoppers that work together to produce a product. For XC-3 Multi-Layer Yield Control using the G2 Yield Screen, one or more LIW hoppers must be part of a Line for the Yield Screen to be able to control that Line.
  • Page 49 Maguire Products, Inc. LineMaster Adding Line Recipes (optional) Line Recipes allow for multiple downloads of recipes to multiple blenders in a single click. This is optional. Recipe download typically are downloaded using the “Download To Blender” Screen. To enter a line, click “Edit”, then “Line Recipe” in the Client menu. Line Enter a Line Recipe name.
  • Page 50 (100-65536) and an optional description. Select the Recipe Type. For blenders, use either 4 or 12 software. LIW (Loss-In-Weigh) and MGF (Maguire Gravimetric Feeder) are also G2 compatible. The row number on the left side of the screen represent the hopper number in the blender.
  • Page 51 Color in 12-Software recipes becomes type Additive. Enter the desired setting for that material. Settings follow the rules of the Maguire blenders. Regrinds, colors and additives by default use a setting with whole numbers and tenths. If the setting uses 100ths (i.e.
  • Page 52 Maguire Products, Inc. LineMaster Setup Requirements Before the Co-Extrusion process can be used in G2, the following requirements must be met. Steps 2 through 6 are outlined in the Quick Start Guide. For information on YDLX (single extruder), YDLT (single extruder), or YLDD (co-extruders), refer to your Blender Manual.
  • Page 53 Maguire Products, Inc. LineMaster Generating Data Reports When a blender is added to the G2 software and G2 is able to communicate with the blender, two types of data will be collected from the blender automatically. The first is tag based reporting. G2 will collect Material Usage reports based on tags assigned to the blender.
  • Page 54 (no title). For more information on G2 program usage or additional reporting information see the complete G2 manual located on the G2 installation CD or USB. The G2 program as well as complete documentation can be found on our website: www.maguire.com...
  • Page 55 Maguire Products, Inc. LineMaster Using the LineMaster Yield Screen Yield Control offers to the operator, the ability to control Co-Extrusion Lines consisting of 1 to 7 extruders while intelligently controlling the downstream Take-Off equipment. Yield Screen - Startup Process: In the G2 Client, select from the menu above, Control then Yield to open the Yield Screen. In the Yield Screen, select your line from the dropdown menu in the upper-right.
  • Page 56 Maguire Products, Inc. LineMaster XC-3 Startup – Using G2’s Yield Screen Before startup, make sure material is available at the fill valve of the Loss-in-weight hopper. Setting Voltages for each Extruder 1. With the LineMaster Extruder Speed Control in the MANUAL position, turn main power of LineMaster (XCC) Controller ON Display will read: 0.0 K/h EXTRUSION UNLOCKED...
  • Page 57 Maguire Products, Inc. LineMaster 7. All LineMaster Extruder Speed Controls can now be put into the LOCK position to maintain the current rate of throughput and yield. In LOCK position, automatic adjustments to the (0-10v) extruder voltage and (0-10v) Take-off are made by the LineMaster (XCC) Controller to maintain the locked rate of throughput and yield.
  • Page 58 Maguire Products, Inc. LineMaster LOCK Options through the G2 Yield Screen On the G2 Yield Screen Current Throughput and Yield can be Locked. Clicking any of the layer throughput fields will display a keypad panel with a Lock or Unlock button (depending on the current state).
  • Page 59 Maguire Products, Inc. LineMaster XC-3 with Gauge Control using G2’s Yield Screen Gauge control allows G2 to control the individual layers by volume and by percent using the layer’s specific gravity to calculate each layers gauge. G2 Setup for Gauge Control To enable Gauge Control in the G2 Client, go to Main/Setup then the System Tab.
  • Page 60 Maguire Products, Inc. LineMaster a given material in the Specific Gravity field. Click Add/Update to save changes to a material. Once a Specific Gravity has been entered for all lines, the actual percent per layer will be displayed. If the actual is not the correct percent that you will be running, a target can be entered.

  • Page 61: Controller Description

    Maguire Products, Inc. LineMaster Controller Description – Controls and Outputs Front Panel  KEYPAD  DISPLAY KEYPAD See Keypad functions on page 66. DISPLAY 40 Character Vacuum Fluorescent Display (VFD) Displays the current rate, internal parameters, and other information and prompts to assist the operator.
  • Page 62 This port can be used for computer or PLC communications to the controller. Data can be gathered from the controller or commands sent to the controller using either Maguire’s Gravimetric Gateway software or using the MLAN Protocol. The Gravimetric gateway Software (G2) allows downloading settings and retrieval of information and will produce reports for those customers who wish to take advantage of this feature.
  • Page 63 Notes about printing to a USB drive When saving printout information to a USB drive, the USB drive must contain a folder named maguire and within the folder, a file labeled PRINTER.TXT must be present. It is this file, PRINTER.TXT that printout functions appended to.
  • Page 64 Maguire Products, Inc. LineMaster FILL VALVE OPEN/CLOSE Switch This switch opens or closes the Fill Valve above the LIW Hopper. This switch is used to manually control the Fill Valve during maintenance or emptying of the LIW Hopper. Controller - Right Side ...

  • Page 65: Communications

    Located on the left side of the controller are two communication ports, a Serial port and an Ethernet port. Through these communication ports information can be sent to or gathered from the Maguire LIW Controllers. The standard protocol for communication with the Maguire LIW Controllers is the MLAN Protocol or Modbus TCP.

  • Page 66: Controller Keypad

    Maguire Products, Inc. LineMaster LIW Controller Keypad – Description of Functions There are two operation Modes are available: NORMAL and PROGRAM. NORMAL operating mode - When power is turned on, the unit is in this mode. Only the VIEW, CE, EXIT keys are available in this mode. The keypad, arrow keys and lock key are available when running in Normal mode and in “Lock”.
  • Page 67 Maguire Products, Inc. LineMaster Keypad Entry Keypad adjustments are made using the keypad button located above the up and down arrows on the keypad. Pressing the keypad button, will display: ENTER TARGET _ _ _ _ _. Enter the value of grams per length (g/l) using all 5 digits (the last digit is in 10ths).
  • Page 68 Maguire Products, Inc. LineMaster KEYPAD - PROGRAM MODE In this mode, you may perform ALL of the functions available in MANUAL mode, plus additional functions that alter the logic with which the controller operates. The PARA key operates in this mode.

  • Page 69: Star Functions

    Maguire Products, Inc. LineMaster Star Functions Star Functions are only available in PROGRAM mode: EXTRUDER MODE - Extrusion and Yield Control, and Rate display. Press ( ,0,2) to turn on Extrusion or Yield control. The default display is EXTRUSION CONTROL.
  • Page 70 Maguire Products, Inc. LineMaster RSTR. ROM DEFAULTS. It will not prompt for confirmation. Resets immediately after 12 is pressed. Accessible in Program Mode Only. NOTE: The battery used for backup is a lithium battery that is part of an I.C. chip on the board.
  • Page 71 Maguire Products, Inc. LineMaster Model options are: LIW05 (Sets LLF to 2500, HLF to 5000) LIW10 (Sets LLF to 5000, HLF to 10000) LIW25 (Sets LLF to 10000, HLF to 25000) LIW40 (Sets LLF to 10000, HLF to 40000) DISPLAY Firmware Status and Checksum Press ( ,2,5) to display the Firmware status and checksum.
  • Page 72 Press the CE key to toggle between DHCP and static IP Address. Note: If you plan to use DHCP be aware that software connecting to the Maguire Controller typically requires a known IP address that does not change, therefore your DHCP server will most likely need to maintain the same IP for the controller.
  • Page 73 Maguire Products, Inc. LineMaster Backdoor Password Press ( ,8,6) to select a new "Back Door" password for your software. Display will say BACKDOOR PASSWORD Select (0-9): 00000. Enter 00001 up to 00009 to select one of nine new backdoor passwords. Contact us for the actual number.
  • Page 74 Press ( ,9,3) to initiate a software update from the USB Drive. Pressing ,9,3 will cause the controller to search the USB drive for a folder named maguire and 3 files within the folder maguire named: UPDATER.BIN, 912WFxxxxx.crc, and 912WFxxxxx.s28. Updated software is available from Maguire Products free of charge and can be obtained by calling our office or visiting us on the web www.maguire.com.

  • Page 75: Parameters

    A new summary print is triggered by either time (minutes in PRT parameter) or a change to LIW status, change to target throughput or an alarm. A maguire folder must be present on a flash drive plugged into the controller.
  • Page 76 Maguire Products, Inc. LineMaster Load-cell parameters - DO NOT CHANGE THESE These four parameters are set to match the characteristics of the type of load cells used in your system. DO NOT ALTER THEM. LCL and LCH are the acceptable LOW and HIGH limits of load cell output expressed as raw signal counts per gram of weight.
  • Page 77 Maguire Products, Inc. LineMaster Extrusion Control - Upper Adjustment Limit XUL sets an upper limit to how far the software can adjust the extruder speed (control voltage) once in the LOCK mode. If while in LOCK mode this limit is exceeded, then the adjustment is NOT made, and the ALARM is turned on.
  • Page 78 Maguire Products, Inc. LineMaster Alarm status for G2 communications Controller Alarms if the G2 software does not collect totals after a period of time (offline alarm). Maximum Extruder Output For Extrusion Control, this parameter stores the extruder throughput rate that can be expected when control voltage is set to it's maximum output of 10 volts.
  • Page 79 Maguire Products, Inc. LineMaster Low Flow Stability Second by second weight reading of the load cells to accumulate a steady rate of throughput. In applications with rates below 5 lbs/hr you may need to increase this value in seconds. Default 1 second weight sampling rate.

  • Page 80: Alarms

    Maguire Products, Inc. LineMaster Alarm List Max XCV The MAX XCV alarm will occur in the locked mode if the calculated voltage exceeds 10.00 VDC at the extruder. After the occurrence of this alarm the system will automatically unlock and hold the last known voltage. To reset you must cycle the Manual / Lock switch.

  • Page 81: Load Cell Zero Weight Calibration

    Maguire Products, Inc. LineMaster Load Cell Zero Weight Calibration This unit was properly calibrated for zero and full weight at the factory to match the load cells specific to the LIW model. It should not be necessary to re-calibrate during installation.

  • Page 82: Load Cell Full Weight Calibration

    Maguire Products, Inc. LineMaster Load Cell Full Weight Calibration This unit was properly calibrated at the factory to match the load cells that were supplied with it. Before doing a Full Weight Calibration, you must first do a Zero Weight Calibration, (see previous section).

  • Page 83: Updating Controller Firmware

    Updating Controller Firmware USB Drive Update 1. Updating firmware uses a standard USB drive. There are 3 files that are required to perform a software update to the LIW Controller. These files may be requested from Maguire Products and are labeled: UPDATER.BIN 912WFxxx.crc...

  • Page 84: Liw Model Specifications And Dimension Drawings

    Maguire Products, Inc. LineMaster LIW Model Specifications and Dimension Drawings Throughput Dimensions – inches (mm) Capacity Weight Model Range cu.ft. (liters) lbs. (kg) Lb/hr (kg/hr) 5 - 300 23.5 12.0 14.2 18.2 6.0 x 6.0 LIW-05 (8.5) (2.2 – 136) (596.9)
  • Page 85 Maguire Products, Inc. LineMaster...
  • Page 86 Maguire Products, Inc. LineMaster...
  • Page 87 Maguire Products, Inc. LineMaster...
  • Page 88 Maguire Products, Inc. LineMaster...
  • Page 89 Maguire Products, Inc. LineMaster...
  • Page 90 Maguire Products, Inc. LineMaster...
  • Page 91 Maguire Products, Inc. LineMaster...
  • Page 92 Maguire Products, Inc. LineMaster...

  • Page 93: Warranty

    Maguire Products, Inc. LineMaster Warranty – Exclusive 5-Year MAGUIRE PRODUCTS offers THE MOST COMPREHENSIVE WARRANTY in the plastics auxiliary equipment industry. We warrant each product to be free from defects in material and workmanship for 5 years from the date delivery.
