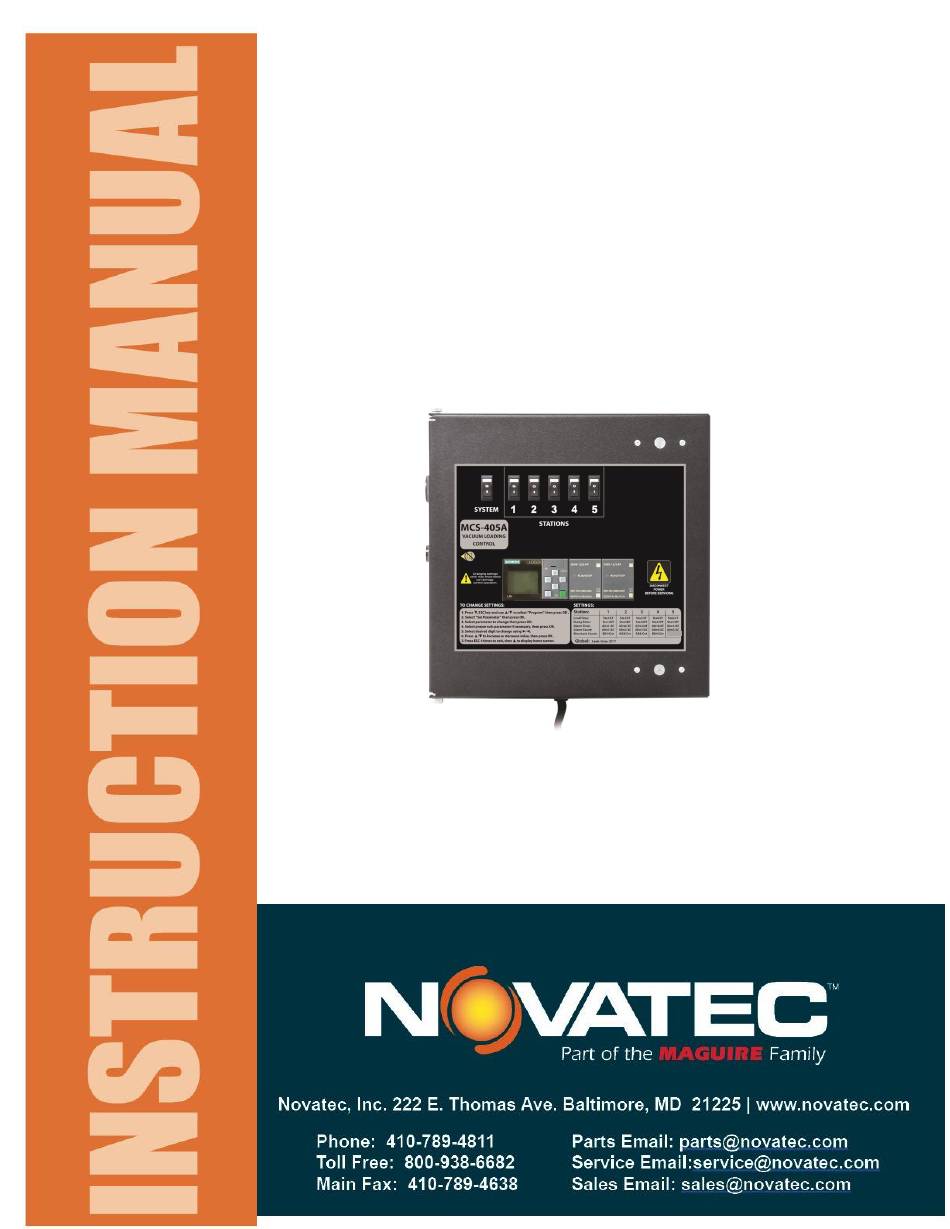

- Page 1 MCS-405A FIVE STATION CONTROL PACKAGE MCS-405A IM 13 OCT 2018 © NOVATEC, Inc. 2018 All Rights Reserved...
- Page 2 MCS-405A IM 13 OCT 2018 NOTES: Please record the following information, which is specific to this piece of equipment, in the space provided. Our Parts/Service Department will need these numbers to properly respond to any of your requests. Instruction Manual: MCS-405A IM 13 OCT 2018 Model #:___________________________ Serial #____________________________ DISCLAIMER: NOVATEC, Inc.
-
Page 3: Table Of Contents
MCS-405A IM 13 OCT 2018 Contents 1.0 DRAWING LIST ........................ 3 2.0 PRINCIPLE OF OPERATION ................... 4 3.0 UNPACKING AND INSPECTION ..................4 4.0 INSTALLATION ........................ 4 4.1 General ......................... 4 4.2 Vacuum Power Unit ..................... 5 4.3 Station Valve ........................ 5 4.4 Cyclone Filter ....................... -
Page 4: Principle Of Operation

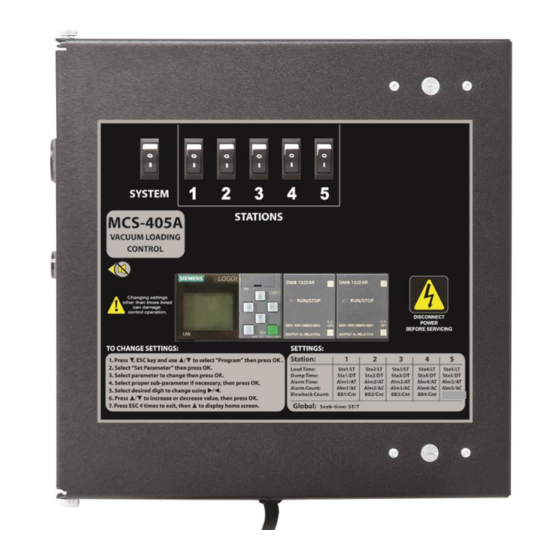

MCS-405A IM 13 OCT 2018 2.0 PRINCIPLE OF OPERATION Novatec MCS-405A CONTROLLERS are designed to operate a single vacuum power unit to convey material to a maximum of six stations. Each vacuum receiver may be turned on individually with its separate ON/OFF switch. It will sequentially load each station that needs material and skip each station that is full. -
Page 5: Vacuum Power Unit
MCS-405A IM 13 OCT 2018 4.2 Vacuum Power Unit Locate so that access to the secondary filter element mounted to the vacuum power unit is available. Secure to floor or platform as necessary. Attach high voltage (check nameplate) to the motor starter (located in the motor starter junction box mounted to the vacuum power unit) from a field supplied disconnect switch or to the optional combination starter with fused disconnect... -
Page 6: Electical Installation
MCS-405A IM 13 OCT 2018 5.0 ELECTICAL INSTALLATION WARNING: IMPORTANT INFORMATION Danger! Disconnect all voltage before inspecting or servicing the equipment. Only properly trained, qualified technicians should operate or service the equipment. All national and local electrical, building, and safety codes need to be followed. Proper grounding of all equipment is important. -
Page 7: Wiring For Mcs-405A - 24 Volt Dc
MCS-405A IM 13 OCT 2018 8. Station valve solenoid. Connect wire (wire number 21,22,23,24,25 in drawing) from the output terminal on the PLC (Q1, Q2, Q3, Q4, Q5) to the respective station valve solenoid. Connect the station valve solenoid to (wire number 2 in drawing) to terminal number 2 on the terminal block. -
Page 8: Operation
MCS-405A IM 13 OCT 2018 6.0 OPERATION 6.1 General Push the SYSTEM switch to the "ON" position. Enable the desired stations by switching the individual ON/OFF STATION switches to the “ON” position. The vacuum power unit motor will then start and load material to the first empty station for a time that is adjustable by changing the Load Time value in the “SETTINGS”... -
Page 9: Proportioning Or Purge Control
MCS-405A IM 13 OCT 2018 6.2 Proportioning or Purge Control Although this controller cannot control purge or proportioning, an additional control box can be added for each station, for these functions. Refer to the appropriate manual for detailed instructions. 6.3 Preset Parameter Values The MCS-405A controller is preset at the factory with the following values. -
Page 10: Load Time: Pmp/Lt
MCS-405A IM 13 OCT 2018 7.1 Load Time: Pmp/LT Measured in seconds, this is the amount of time the vacuum pump will run to load material into the vacuum receiver. Too little time will result in insufficient loading. Too much time will pack the loader full of material, prematurely blinding the filter and possibly clogging the conveying line. -
Page 11: Warranty
MCS-405A IM 13 OCT 2018 10.0 WARRANTY - Effective 7 FEB 2018 NOVATEC, INC. offers COMPREHENSIVE PRODUCT WARRANTIES on all of The provisions in equipment specifications are descriptive, unless our plastics auxiliary equipment. We warrant each NOVATEC manufactured product expressly stated as warranties. The liability of Novatec to the to be free from defects in materials and workmanship, under normal use and purchaser, except as to title, arising out of the supplying of the said service for the periods listed under “Warranty Periods”. - Page 12 Exclusions: Routine maintenance/replacement parts are excluded from the warranty. These include, but are not limited to: hoses, desiccant, filters, filter elements, wiper seals, gaskets, dew point sensors, infrared lamps, motors, internal solenoids, fuses and motor brushes. Use with abrasive materials will void the warranty of any standard product. Wear resistant options may be available to extend usable service life with abrasive materials.
