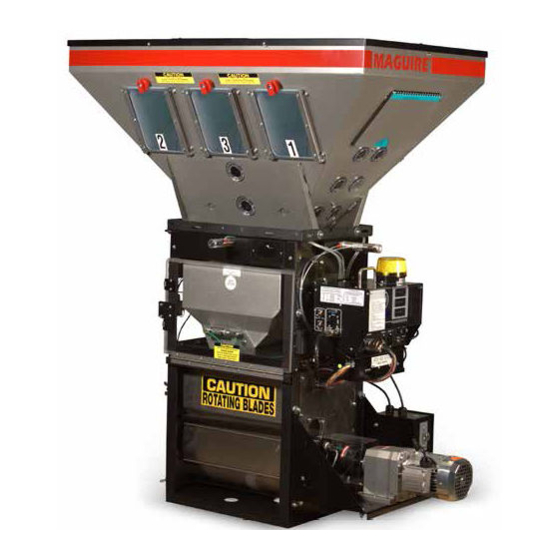

Page 1 Weigh Scale Blender 4088 TSC  MAGUIRE WEIGH SCALE BLENDER  4088 Touch Screen Controller FLEXBUS Lite  Receiver Control System INSTALLATION  OPERATION  MAINTENANCE Original Instructions Manual Copyright  Maguire Products, Inc. 2020 Revision Date: February 24, 2020...
Page 2 Use this space to record information about your Maguire Weigh Scale Blenders: Serial Number Date of Purchase Model Number ID IP Address Notes:...
Page 3 The information contained within this manual including any translations thereof, is the property of Maguire Products Inc. and may not be reproduced, or transmitted in any form or by any means without the express written consent of Maguire Products Inc.
Page 4: Table Of Contents
Introduction EC Declaration of Conformity ______________________________________ 6 Getting Started – Read this page! ___________________________________ 7 Safety Notifications and Safety Hazards______________________________ 8 Blender Parts Key _______________________________________________ 10 Controller Parts Key _____________________________________________ 19 Touchscreen Overview __________________________________________ 20 Flexbus Lite Integrated Loading System Flexbus Lite Table of Contents and Overview _______________________ 122 Flexbus Lite Setup and Configuration _____________________________ 123 Blender Setup and Installation...
Page 5 Navigating Parameters ___________________________________________ 54 Parameters – General – Explanation _______________________________ 56 Parameters – Component – Explanation ____________________________ 60 Parameter Default Settings _______________________________________ 62 Saving Parameters ______________________________________________ 64 Monitoring System Accuracy ______________________________________ 73 Cycle Printout Information ________________________________________ 73 Interpreting the Cycle Printout ____________________________________ 74 Troubleshooting with the Printout _________________________________ 75 Parameter Settings Printout _______________________________________ 79 Load Cell Calibration ____________________________________________ 32...
Page 7: Getting Started - Read This Page
Getting Started – Important! Safety Notifications and Page: 8 HAZARDS exist on this unit. Safety Hazards Read Safety Notifications and Safety Hazards. Blender Part Identification Page: 10 Identifying key parts and what they do. Assembly and Installation Page: 12 Assembly and installation instructions. Instructions Wiring Considerations Page: 16...
Page 8: Safety Notifications And Safety Hazards
Safety Notifications Electrical lockout points. Disconnect electric before opening or servicing. Use Power Lockout Tagout. Pneumatic lockout points. Disconnect compressed air supply before opening or servicing. Use Air Lockout Tagout. CAUTION - Always wear safety glasses when using this equipment. SAFETY INTERLOCK SWITCH The ACCESS DOOR is equipped with a safety interlock switch that prevents the mix motor from running and the slide...
Page 9 Safety Hazards HAZARD - ROTATING MIX BLADE Mix Blades are driven with substantial Torque. Never place your hand in the Mix Chamber while the blades are rotating. SERIOUS INJURY WILL RESULT HAZARD - SHARP MIX BLADES Over time, Mix Blades may become RAZOR SHARP. ALWAYS be careful when TOUCHING or CLEANING these blades.
Page 10: Blender Parts Key
Blender Parts Key...
Page 11 1. Auger Feeder – Screw Feeder for feeding in small percentage materials such as Colors and Additives 2. Fixed Material Hopper – Material Hopper for main materials to be dosed by the slide gates 3. Removable Hopper – Removable Material hopper for small percentage materials such as Colors and Additives 4.
Page 12: Assembly And Installation Instruction
5. FLOOR STAND or VACUUM TAKEOFF ASSEMBLY: optional RED INSTRUCTION STICKERS will assist you during assembly. LIFT HANGERS are available to allow lifting the blender with a strap or chain. Contact Maguire if you require them. Weight of each model is listed on page: 121.
Page 15 Slide the WEIGH BIN into position. It rests behind the clear-hinged access window. On models 100, 200, and 400 install weigh bin with the air cylinder to the left. On models 900, 1800, 2400 and 3000 install weigh bin with the air cylinder towards you. On Micro Blenders, install the weigh bin with the load cell hanger to the left.
Page 16: Wiring Considerations
Wiring Considerations The wiring of your blender is very important to its proper operation. Electronics are very susceptible to voltage spikes, static discharges and electromagnetic fields, all of which are very common in plastics factories. To MINIMIZE these things, consider the following. ...
Page 17: Selecting The Correct Model
Model Selection Controllers are programmed to control all sizes of Weigh Scale Blenders. The MODEL number that your unit is set for will be displayed across the status bar of the controller's Home Screen. All Weigh Scale Blender controllers come from factory pre-configured for the model blender they are attached to.
Page 18 WARNING: Changing Model will set all parameters and settings to factory defaults. Changing the model will reset the controller's blender configuration settings and parameters to the defaults for the selected model. System configuration and preferences will be retained through a model change. Change the model of the blender controller: Press Display will show the password keypad screen.
Page 19: Controller Parts Key
The Maguire Touchscreen Controller is designed to retrofit onto older Maguire Weigh Scale Blenders. The Maguire Touchscreen Controller has all of the features of the earlier 6811 (red display) and 12-12 (blue display) controllers and easily installs on all existing Weigh Scale Blenders.
Page 20: Touchscreen Overview
Home Screen Title Bar Component Setpoint Hopper number Name Type Hoppers 9 - 12 START/STOP Button Specialized Operations Weigh Bin Mix Chamber High / Low Limits Print Center Nav bar Title Bar - The title bar displays: Model, current Operating Mode (blender, dispenser or Totalizer), date and time, Ethernet and USB status.
Page 21 Nav Bar Home Screen Pressing the Home Screen button from any other screen will return the operator to the main Home Screen. Alarm and Event Alarm and Event Log displays a history of alarms and other events with a date and time stamps and description. Live Diagnostics Live Diagnostics displays a cycle summary of detailed diagnostics information scrollable back through a history of...
Page 22 Turning on Material Type Outputs This controller can control up to TWELVE (12) components; 1 through 12. Labeled: Component 1 through Component 12. Each Component is either a hopper or a feeder. All models are preset with their model specific component outputs turned ON. Components can be turned on or off.
Page 23 ADDITIVE (PERCENT OF ALL NATURALS) Components designated ADDITIVE will be added as a percentage of all the NATURALS added together. For example: If component 4 is an ADDITIVE at 5 percent, then the above example now looks like this: Component 1, REGRIND, SET= 20, 20 percent, Component 2, NATURAL, SET= 10, 15.2 percent, Component 3, NATURAL, SET= 40, 61.0 percent, Component 4, ADDITIVE, SET= 05.0, 3.8 percent.
Page 24: Setting The Modes Of Operation
Modes of Operation Mode of Operation - Allows selection of the General Mode that the Blender will run in including: Blender (WSB, up to 12 components), Dispenser (WSD), or Totalizer with on-screen accumulated totals (WST). Additive as % of Natural or All Materials are % of Total Batch - This screen also allows selection of the blending Mode of Operation as: % of Natural or % of Total Batch.
Page 25: Enabling Hopper Types
Enable and Set Hopper Type / Operation: Display will prompt for a password. Press Then press: (default: 22222) Press Blender Configuration Display will show the Device Configuration categories. Press Component Types Display will show the Component Type / Operation screen. Change Component Types: Press Component Navigation...
Page 26: Example Of Making Settings
Examples of Making Settings Below are listed 4 different examples for possible settings users can make with the Maguire blender. Each example uses this formula: Rs = Regrind setting Ra = Regrind actual Regrind = Rs * Full weight As = Additive setting...
Page 27 Example 3: Blender: WSB 100 Series with 1000g Batch Materials: % of Batch % of Batch % of Batch % of Batch Application: All components as set as proportions of 100% of the batch. The total should always add up to 100%. When using settings that are % of total, always use all Regrind material types.
Page 28: Entering Component Settings
Entering Component Settings Settings are entered from the Home Screen by pressing any of the enabled component hoppers shown on the home screen. Press One of the hoppers Display will show the Component Setup screen. Press Display will show the Component Setpoint screen. Press To navigate through all enabled components.
Page 29: Check Out Procedure And Diagnostics
Check Out Procedure As you go through this procedure, if WHAT SHOULD HAPPEN, doesn't happen, see next section, DIAGNOSTICS, for what to check. MB/100/200 series models (3K load cells), display all weights in 1/10 grams (xxxx.x). 400/900/1800 series models (10K load cells) display weights in FULL grams, NO decimal point (xxxxx).
Page 30 Device number 1 will operate. Component 1 PRESS Press "1" repeatedly to observe operation. Device number 2 will operate. Component 2 PRESS Press "2" repeatedly to observe operation. For each dispense valve on your WEIGH SCALE BLENDER. REPEAT THIS SEQUENCE Up to 12 outputs are possible numbered Component 1 through to Component 12.
Page 31 Check Out Procedure Diagnostics If display fails to come on at all: Check power to blender controller. Check your model numbers on the Red Metal Tag: If model number is not correct for you unit: see the next page, SELECTING CORRECT MODEL. If display field located center screen shows randomly drifting numbers: check to see load cells are plugged in.
Page 32: Load Cell Calibration
Load Cell Zero Calibration If your load cells already display a weight close to zero, plus or minus 10 grams, you may skip this section. Weight readings tare at the beginning of each cycle. The acceptable plus/minus weight reading range is model specific and is set in the TH (Tare High) and TL (Tare Low). Above TH or below TL will display a Tare High/Low error and the blender will not run.
Page 33: Material Flow Rate Calibration
Material Flow Rate Calibration If material is changed or hardware is changed (example: 1/2" auger changed to a 1" auger) and material meters at a much lower or higher rate than expected, the software may take 10 to 20 cycles to fully adjust. During this time cycles will take longer. The software will SELF ADJUST the flow rate or a Material Flow Rate Calibration can be done to set the flow rate immediately.
Page 34: Micro Pulse Instructions
Micro Pulse Instructions This section contains Micro Pulse information for a few selected models. MICRO PULSE Micro Pulse valves are available on models: WSB MB with optional VERTICAL VALVE MICRO PULSE valves. WSB 122 / WSB 140m2 with optional SLIDE GATE MICRO PULSE valves. WSB 131 / WSB 140m1 with optional SLIDE GATE MICRO PULSE valves.
Page 35: Regrind Control
Regrind Control Regrind Control is a set of parameters that enhance control of regrind. PRN 00000 - Percent of Regrind to be Treated as Natural First digit: 0 = adds, 1 = subtracts ... additive to or from the regrind. Second digit: Regrind component.
Page 36 Full Explanation of Regrind Control Parameters Percent of Regrind to be Treated as Natural Allows for adding some ADDITIVE to one of the REGRIND portions. PRN can also be used to subtract a portion of ADDITIVE to reduce the overall total of ADDITIVE (typically used to compensate for over-colored regrind).
Page 37 The last digit determines the adjustment rate. Zero in the last position means make the full adjustment immediately. Any value from 1 to 9 indicates the percentage adjustment that will be made each cycle when the level sensor condition changes. See RHL below for examples.
Page 38 RLC last digit is set to zero, (RLC 10000). The "Regrind" thumbwheel switch is set to 25 percent (025). The Software logic is as follows: If material level is high, above the high sensor, the HIGH sensor is COVERED, (returns NO signal); Regrind runs at the HIGH setting;...
Page 39: Instructions For Normal Operation
Instructions for Normal Operation Operation: 1. Fill HOPPERS. 2. Turn POWER ON. Verify correct Settings, Types and Mode of Operation. 3. Press START Button. Blender will operate automatically, dispensing material until level sensor is covered. Use the STOP Button to stop the blender. Turn POWER off only on final shutdown. After several days of proper operation: Save the current configuration including all parameters to the User Backup Settings for future retrieval just in case software problems develop later.
Page 40 Restoring Parameters from Backup If software related problems develop later or a firmware update is applied to the controller, this routine will restore the last saved configuration of the blender stored within User Backup Settings. Press Display will prompt for a password. (default: 22222) Then press: Press System Configuration...
Page 41: Specialized Operations
Specialized Operations Specialized Operations are features accessible directly on the home screen. These features include: a quick access clear totals button on the VIEW totals screen, internal recipes, batch mode operation, setting tags for operator, recipe and work order and FAST mode used for increasing throughput speed.
Page 42 Specialized Operations - Full Explanation Clear View Totals Enable this feature to enable the CLEAR totals button on the View Totals screen. Pressing this button will: reset all component totals on-screen, reset all component totals in communication registers, and reset the cycle count back to zero. A clear bit in the Get Totals command will be set to 1.
Page 43 Recipes Database When enabled a button labeled RECIPE will display on the controller main screen. This option allows operators to create, store, edit and load up to 99 detailed recipes within the blender’s onboard recipe database. The recipe database can be exported edited and imported into any WSB 4088 controller.
Page 44 When recipe number 100 - 65535 is loaded from the TAG screen or communications, the controller will only set the recipe number. The Maguire G2 Software can be used to trigger an auto-download of a recipe to the blender from the G2 recipe database when the recipe number is set to 100-65535.
Page 45: Dispense Station
Dispense Station In Dispense Station Mode, material is dispensed up to a target weight and then the Dispense Station stops and alarms. Dispense Station is enabled under System Configuration, Mode of Operation. When in Dispense Station mode, a button labeled "Dispense Station" will be at the bottom center of the Home Screen.
Page 46: Operator Access
Operator Access When enabled Operator Access will limit access to functions of the blender (selected by the admin) by prompting for the operator password. All other functions of the blender will be restricted. Default Operator Access password is: 11111. Also see Changing Passwords below. Display will prompt for a password.
Page 47: Change Passwords
Changing Passwords Access to the controller is limited by one or two passwords. Access to Setup information is restricted by an Admin Password (default password is: 22222). If Operator Access is enabled (see above), access to commonly used functions are further restricted with the Operator Password. If security is important and restricted access is desired, it is important to change the passwords.
Page 48: Communications
502. For more information on Modbus TCP, see the Maguire Modbus register mapping document. MLAN Protocol (Maguire Local Area Network) – MLAN is a protocol consisting of commands that allows two-way communications to the Maguire Weigh Scale Blenders. All Maguire Weigh Scale Blenders dated back to 1992 contain the essential MLAN commands for basic control and data collection while newer Maguire controllers contain additional commands for enhanced control and data collection.
Page 49 Setting the IP Address, Subnet Mask, Gateway Press Display will prompt for a password. (default: 22222) Then press: Press Display will show the System Configuration categories. Press Communications Display will show the System Communications categories. Press TCP/IP Configuration Display will show the TCP/IP Configuration screen. On this screen, enter the IP Address, Subnet Mask and Static IP Default Gateway using the keypad to enter the number...
Page 50: Automated Control
Automated Control Automated Control is enabled using Modbus register 40151 or from the Setup menu under: Setup, System Configuration, Communications, Automated Control. Enabled or Disabled. When enabled, Automated Control gives enhanced start and stop control of the blender over Modbus TCP and status feedback of the blenders current state.
Page 51: Setup Menu - Brief Explanation
Setup Menu Map – Brief Explanation This section contains a brief explanation of the Setup menu. For detailed information see Setup Menu Full Explanation starting on page 53. ► Setup (password protected) – Settings and Options Menus ► Blender Configuration – Blender specific settings ►...
Page 52 ► User Settings - Save / Restore User entered Settings ► Restore Factory Defaults - Restores factory loaded settings ► Factory Access - Factory Access Only ► Firmware Updates - Reads USB drive for updates, selects and updates firmware. Contact Maguire Products Inc. for updates.
Page 53: Menu Map - Full Explanation
Setup Menu – Full Explanation Setup is a password protected area for accessing Blender or System specific configuration settings. Setup is accessible from the main screen by pressing: Press Display will prompt for a password. (default: 22222) Then press: Parameters – All WEIGH SCALE BLENDER controllers operate according to certain internal PARAMETERS.
Page 54: Parameters Introduction
Blender Configuration Parameters Setup > Blender Configuration > Parameters Parameters Introduction Parameters – All WEIGH SCALE BLENDER controllers operate according to certain internal PARAMETERS. Because customer requirements vary widely, we have made a wide range of parameters accessible for change through the touchscreen.
Page 55 Regrind Control Regrind % to treat as Natural Regrind Level Control High / Low Level Control Additive Control Additive as a Percent of Total Percent of Additive to Regrind Mixer Control Mix Time Jog Time Air Drive Mixer Timing Flow Control Delay Open Load Cell Limits Load Cell Low Load Cell High...
Page 56: Parameters - General -Explanation
Parameters – General –Explanation 200 series settings shown as example settings DLY 02000 CYCLE START DELAY - Delay before cycle start. (milliseconds) Time in milliseconds that the sensor must be uncovered before cycle start. Minimum of 02000 (ms) is recommended. With low throughput, increasing DLY may allow better mixing if needed.
Page 57 RAC 000000 Regrind Auto Control This is a Six-digit parameter. 1st digit is the regrind component 2nd and 3rd digits are the cycle count Last 3 digits are the % to increase current setting by. Example: 110100 - Regrind #1, 10 cycles increase setting by 100%. Current setting 25%, increases to 50%.
Page 58 BER - Grams over weight to abort a component dispense. This parameter prevents over filling the weigh bin. A component dispense aborts when weight exceeds target by BER value. Remaining components dispense normally. 1 in the last position (00201), causes USB printout of cycle data when abort occurs. Typically, no change is required.
Page 59 MCT – Monitor Cycle Time Alarm For Throat Mount Applications Only Alarms if cycle exceeds normal cycle time by multiplier or by time in seconds. 00000 = Inactive First two digits (02xxx) is multiplier of previous cycle time. Last three digits (xx060) is time in seconds over previous cycle time. Silence Alarm button or next cycle resets the alarm.
Page 60: Parameters - Component - Explanation
Component Parameters Explanation There are 12 Groups of parameters, one group per component. In parameter printouts the first digit in the parameter name is the component number. RP 00010 Retry by Percent - Shortage RD 00300 Retry by Gram - Shortage RP is the shortage expressed as a PERCENT of the target dispense weight and RD is the shortage expressed in GRAMS.
Page 61 WT Weight Dispense Rate (grams/second) TI Time Set AUTOMATICALLY by the Flow Rate Calibration routine WT and TI set the flow rate or dispense rate of each material. These can be set manually, set by the Flow Rate Calibration routine, and adjust automatically after each cycle.
Page 62: Parameter Default Settings
Parameter Default Settings Here is a complete list of the "default" entries for all parameters as they are provided in the original program, and as they will appear after a CLEAR ALL or a model change. The Model 220 list is the ORIGINAL BASE list.
Page 63 Default Component Parameters: Component 1 is the base list for all components. Other component lists show only the changes from list 1. Component Blender Model: Parameters: 3Kg Base Load Cells 10Kg Base Load Cells 220/240 1840 420 / 440 (1 & 2) (VV) (2”x3”...
Page 64: Saving Parameters
Saving Parameters If the changes you have made are PERMANENT, SAVE them in the “User Backup Settings”. A "Restore User Settings" will clear all data from memory and replace it with information stored in the “User Backup Settings”. So it is a good idea to have an exact copy of User Settings stored in the “User Backup Settings”...
Page 65 Restoring Parameters from Backup If software related problems should develop later, RETRIEVE this correct copy of the parameters from the backup. This clears corrupted data from RAM and corrects most software problems. To Retrieve: Press Display will prompt for a password. (default: 22222) Then press: Press System Configuration...
Page 66 Blender Configuration - Continued Specialized Alarms Setup > Blender Configuration > Specialized Alarms Weigh Bin Loosing Weight Alarm – When enabled, if the weigh bin weight drops more than 20 grams during a cycle this alarm will sound. This serves to detect and report a weigh bin problem, such as material leaking from the bottom of the bin.
Page 67 Progressive Metering – Progressive Metering allows for more accurate dispenses of selected components. However, cycle time will be extended by a few additional seconds. In normal operation blenders target a dispense of the full requested amount in one try. This almost always works, and generally will fall within acceptable upper and lower error limits.
Page 68: Load Cell Recalibration - Zero / Full Calibration
Option: end with bin full to tell the controller to end a cycle when the weigh bin is EMPTY or end with the bin FULL. The BIN FULL option is only for special installations where the sensor has been relocated BELOW the mix chamber and the instructions to do otherwise. Weight Bin Dump Options –...
Page 69 This unit was properly calibrated at the factory to match the load cells that were supplied with it. If you are going to recalibrate, note the following. The proper sequence is given below. BE SURE the load cell plug is plugged into the side of the controller. BE SURE the weigh bin is hanging from the load cells freely.
Page 70 System Configuration Modes of Operation Setup > System Configuration > Modes of Operation Modes of Operation - Blender Modes:  Blender – Blending up to 12 components  Dispenser – Operates Blender as a Weigh Scale Dispenser (WSD).  Totalizer – Operates Blender as a Weigh Scale Totalizer (WST). ...
Page 71 Print Cycle History – Prints diagnostic data of the last 250 cycles to USB. Can be printed as fixed width plain text file or as a CSV file with or without the column headers (titles). Print Totals Interval - Enables automatic print of totals to USB at a specified interval (see PRT parameter).
Page 72 Alarm and Event Log – Also accessible from the home screen alarm button. Displays the Alarm and Event Log screen. This screen shows the stored history of alarms, critical events, power on events, and other events. Press the upper or lower half of the event display windows to page up or page down. Alarms can be silenced from this screen.
Page 73: Monitoring System Accuracy
Monitoring System Accuracy Cycle Printout Information The best way to monitor system accuracy is to connect a USB Flash Drive to the USB port and turn the Print Cycle Diagnostics ON. The controller will then automatically print full output information after every cycle to a file on the USB Flash Drive in a plain text file format or CSV spreadsheet format.
Page 74: Interpreting The Cycle Printout
Interpreting the Cycle Printout 10 or 20 cycles of data can tell a lot about blender performance. The following explains how to interpret the data. A single cycle printout looks like this: * 11/03/18 * *16:17:53* **ID# 051** 000000 RECIPE 00000 OP 000 **1 R 20.0** **2 N...
Page 75: Troubleshooting With The Printout
Troubleshooting with the Print Diagnostics TOTAL BATCH WEIGHT: Check the TOTAL batch weight to confirm the blender model. 2000 grams indicates 200 series model. 400, 1000, and 2000 gram totals indicate models that use 3 K load cells, which means output information is in 1/10's of grams.
Page 76 In the component 4 column, 1600 and 32000 indicate a flow rate of 50 grams per second. DATA line 3 dispense weight of 0.0 for component 4 and the component 4 is set to 00.0 percent confirming that component 4 is not dispensing material. The following information will help you determine what devices are in place on a blender.
Page 77 DISPENSE TIMING: (DATA line 3) The second number is the number of milliseconds calculated to dispense the material. If these times are consistent but the weight of the first dispense varies, then the material does not flow well, or consistently. Another possibility is excessive vibration or interference with the weigh bin.
Page 78 Accuracy on a percentage basis, cycle to cycle, will suffer. This may very well be acceptable as long as overall usage percentages are still accurate. BAILOUT: (line 4) If bailouts occur, vibration is usually the cause and these bailouts may be causing other problems. Raise the value of the BAL parameter to 200 or 300 grams to reduce or eliminate unnecessary bailouts.
Page 79: Parameter Settings Printout
Print Parameters, Print Alarm and Events, Print All. Press Print Parameters System will print parameters to USB to a file labeled: PRINTER.TXT located in a folder named “maguire”. Press To save and exit or press the red X to cancel and exit.
Page 80 ASCII with a file name as W<ID>CERT.txt. (example: W001CERT.txt for ID number 1). Each unique ID number will have a new file create within the maguire folder. For optimal accuracy, a zero and full weigh calibration is highly recommended prior to printout.
Page 81: Material Usage Printout
Material Usage Printout Pressing the VIEW key on the Home screen followed by the Print to USB button will cause all material usage totals to be printed. These totals are since the last time printed, and since the last time cleared. The printout looks like this: DATE TIME...
Page 82: Troubleshooting - What To Do
Print Parameters, Print Alarm and Events, Print All. Press Print Parameters System will print parameters to USB to a file labeled: PRINTER.TXT located in a folder named “maguire”. Press To save and exit or press the red X to cancel and exit.
Page 83 Typically, problems are indicated by an alarm condition on the Blender controller’s display with an audible alarm and a flashing strobe light. The following alarm troubleshooting chart will describe the alarm condition and possible causes and solutions. Alarm Display: Troubleshooting: COMPONENT ALARM Problem: Hopper / component out of material.
Page 84 ZERO TARE ALARM Problem: Load Cells outside of acceptable Calibration. (former: DUMP ALARM) Weigh bin empty weigh above tare high upper limit (TH parameter) or below tare lower limit (TL parameter). If above TH (upper limit) weigh ALARM CODE:15 bin dump valve opens and closes repeatedly. Possible causes: There is material in the weigh bin that will not dump out.
Page 85 ALTERNATE COLOR ALARM Alert Alarm: Alternate Liquid Color, Component Switch. ALARM CODE:24 The Alternate Liquid Color option allows automatic switch over from Liquid Color component 10 to liquid color component 11 when component 10 runs out (switch over continues from 11 to 10 and so on).
Page 86: Typical Problems
Typical Problems These problems are based on phone calls that we have received from Weigh Scale Blender users. The display does not read close to zero when power is turned on, bin empty (plus or minus 10 grams).  The load cells are not plugged in. ...
Page 87  The slide gate is sticking slightly. With the hopper empty and air disconnected, move the slide manually to see that it moves freely. If material does not flow easily a bridge breaker may be required. Load Cell weight readings are not holding steady. They vary as much as 100 grams from second to second.
Page 88: Mix Problems
Mix Problems Customers with mix problems have several options available. Decrease the batch size by lowering the FUL parameter value. This does two things. First, it causes the components to be dispensed in smaller, more frequent batches, which places more and smaller layers of material into the mix chamber. Second, it lowers the level of material in the mix chamber immediately after a dispense.
Page 89 If you are having mix problems with air drives, be sure the blades moves a full 270 degrees (3/4 turn) with each sweep. If they do not, try the following: Increase the air pressure. If the gauge pressure drops more then 5 pounds during operation of the blades, the air supply line is too small.
Page 90: Increasing Throughput
Increasing Throughput A correctly sized blender should have throughput that always exceeds your process requirements. If, for some reason, your blender is not keeping up, here are a few ways to increase throughput. 1. If your blender is equipped with a flow control slide gate, under the blender, this will reduce throughput up to 25 percent.
Page 91: Normal Operating Sequence
Turn POWER ON: A boot up splash screen displays showing MAGUIRE WSB with the current firmware version displayed in the lower right corner. A status bar and Synchronizing with WSB displays at the bottom. The controller should then display the home screen. The weigh bin weight reading will display at the center of the home screen on the image of the weigh bin.
Page 92 ADDITIVES third: The ADDITIVE dispenses occur last in the sequence. Each dispense must meet requirements set by internal parameters. MATERIAL RUNS OUT: If any material runs out or is not enough to meet criteria set by parameters then the process will NOT CONTINUE past this component. RETRIES of this dispense will occur indefinitely until the full dispense occurs or the STOP button is pressed followed by the ABORT button.
Page 93: Verifying Load Cell Function
VERIFYING LOAD CELL FUNCTION Most Problems are related to LOAD CELL function. There are several ways to VERIFY that the load cells are functioning properly. The slightest touch on the weigh bin should result in a change in the readout. If this is not the case, something is wrong.
Page 94: Load Cell Raw Signal Readout
Load Cell Raw Signal Readout Press Setup, System Configuration, Diagnostics, Load-Cell Diagnostics to check this RAW number for several seconds. Load cells put out a very small voltage that varies slightly as the load cell is deflected. This voltage is converted to a pulse train and these pulses are counted for 1 full second to determine a weight load with a range of counts from 0 to approximately 249,850.
Page 95: Backup, Restore, Factory Reset
Backup, Restore, Factory Reset Locations of stored Blender settings and their purpose There are 3 memory areas where Blender settings are stored. These options are accessible by pressing Setup, System Configuration, Resets, User Settings. 1. Restore User Settings - The current settings in use. When you make parameter changes and/or enable features, the changes (if any) are recorded into the user-settings when you exit OPTIONS mode.
Page 96: Updating Controller Firmware
If necessary, the firmware in the WSB can be updated using a firmware update supplied by Maguire Products. Firmware updates use the USB port located to the right of the control screen. The following instructions detail how to do a firmware update.
Page 97: Hardware Maintenance
HARDWARE MAINTENANCE AIR PRESSURE Set AIR PRESSURE to about 80 PSI for best accuracy. However, lower pressures will work. If you plant air fluctuates, set the regulator to the low end so that the dispense valves always see a consistent pressure. Lubricated air is NOT recommended.
Page 98 There are no components of your blender that require periodic maintenance. However, over the years, blenders may be subjected to abuse or difficult conditions, and accuracy can suffer. To maintain control over the cost of expensive color and additives, you must maintain accuracy. We recommend that blenders be examined once a year, and all necessary repairs be made to insure continued accuracy.
Page 99: 17 Pin Amphenol Connector Pin Assignments
17 pin Amphenol connector Pin assignments This table describes the pin assignment to device of the 17 pin Amphenol connector with factory wire color assignment. 17 pin Amphenol connector This pin goes to the to drive this external device: wire color outside world through this connector: 17 pin Amphenol connector...
Page 100: Technical Drawings, Electrical Diagrams, Pneumatic Diagrams
Technical Drawings...
Page 112 FCA INSTALLATION DIAGRAM...
Page 113 WSB 4088 IO wiring diagram 120V...
Page 114 D-WSB-E0001 - Electrical Diagram, WSB Export, Single Phase...
Page 115 D-WSB-E0002 - Electrical Diagram, WSB Export, 3-Phase...
Page 116 D-WSB-E0003 - Electrical Diagram, WSB Export, 1800 3-Phase...
Page 117 D-WSB-E0004 - Electrical Diagram, WSB Export, Maxibatch...
Page 118 D-WSB-P0001 - Pneumatic Diagram, WSB, with Non-Removable Hoppers...
Page 119 D-WSB-P0002 - Pneumatic Diagram, WSB, with Removable Hoppers...
Page 121: Dimensions And Weight By Model
WSB Model Dimensions and Weight Model Overall Dimensions Overall Weight WSB-MB 16x16x23.5 (in), 410x410x600 (mm) 50 lb/23 kg WSB-100 28.5x26.5x32(in), 730x670x820 (mm) 150 lb/68 kg WSB-140 28.5x26.5x32(in), 730x670x820 (mm) 150 lb/68 kg WSB-220 32.5x26.5x42 (in), 826x673x1067 (mm) 220lb/100/kg WSB-221 32.5x26.5x42 (in), 826x673x1067 (mm) 260lb/118kg WSB-222 32.5x26.5x42 (in), 826x673x1067 (mm)
Page 122: Flexbus Lite Table Of Contents And Overview
Flexbus Lite Integrated Loading System The Flexbus Lite Loading System is integrated into the Maguire 4088 Weigh Scale Touchscreen Controller enabling local control of a single pump and up to 9 receivers. This chapter describes the Flexbus Lite Loading System.
Page 123: Flexbus Lite Setup And Configuration
Flexbus Lite Home Screen Overview Live View Panel (gray area) - Displays the live view of Receivers Navigation Menu Home Screen Display Pump Event Log and Alarm History Switch to WSB Home Screen Setup (password protected) Receivers Pump Navigation / Setup of all Receivers Setup of Pump Flexbus Lite Setup and Configuration Flexbus Lite uses a MAC address to individually identify each Flexbus pump and...
Page 124 Flexbus, a T-drop, a position hub, pump module, and necessary cabling. Please see the Flexbus Lite component map on page 140 for setup details. How to enabled Flexbus Lite in the Maguire Weigh Scale Blender Press Display will prompt for a password. (default: 22222)
Page 125 Flexbus Lite System Setup Screen Pump assignment is set through the SETUP screen. The setup screen is accessed by pressing the Setup button on the right side of the screen. On the HOME Pressing the SETUP button prompts for a password. screen, PRESS: Enter the password (default password is 22222) 22222...
Page 126: Flexbus Pump Assignment
Pumps must be assigned before Receivers. Flexbus Lite (part of the Maguire 4088 TS Weigh Scale Blender) controls a single pump. The Flexbus System can control of to 5 pumps. If you have two or more pumps (Flexbus only), turn...
Page 127 While in the Setup screen you can go straight to setting up Receivers without re-entering the password. To enter the Receivers assignment screen. Next Page for Receivers Assignment PRESS: instructions. Otherwise, to exit SETUP... PRESS: To exit the Setup screen.
Page 128: Receiver Assignment
Receiver Assignment NOTE: If you are already entered into SETUP, skip the password step and go to the below. On the HOME Pressing the SETUP button prompts for a screen PRESS: password. Enter the password (default password is 22222) 22222 PRESS: Press to confirm password.
Page 129: Receiver Configuration
Receiver Configuration The Receiver configuration screen is accessible from the Home screen. Pressing a receiver on the Home Screen, takes you to the Receiver's Configuration screen. The receiver that you are configuring is identified by the Receiver's ID number on the receiver images on this screen.
Page 130 Load Retry - The number of times the receiver will try to successfully load material and satisfy the sensor. Exceeding this retry count will cause the receiver to alarm. Dump Time - The time in seconds that the receiver will remain open during the dump cycle.
Page 131: Pump Configuration
Pump Configuration Pressing the pump button in the right navigation takes you to the Pump overview screen and then pressing a pump in this overview screen will open the Pump's Configuration screen. The pump that you are configuring is identified by the pump's ID label on the pump's image on this screen.
Page 132 Pump Control Pump Status Panel - This panel displays messages and pump status and allows the pump to be turned OFF or ON. The pump symbol can display the following states: Pressing the pump symbol toggles the pump OFF or ON. Message will display PUMP OFF.
Page 133 Pump Configuration Fields Blowback - Blowback is a pulse of air to clear the filter. Blowback has two configuration fields. Skip cycle defines the number of Bypass cycles skipped between each blowback pulse. Default for Skip Cycle is 10. Setting Skip Cycle to 0 (zero) will pulse every time.
Page 134: Removing Receivers Or Pumps
Removing Receivers from the configuration If a receiver needs to be removed from the configuration, it can be removed using this procedure. On the HOME Pressing the SETUP button prompts for a screen PRESS: password. Enter the password (default password is 22222) 22222 PRESS: Press...
Page 135: Flexbus System Setup Options
Set Date and Time Set Screen Brightness Update Receiver and Pump Firmware Requires a firmware update provided by Maguire Products Inc. Copy firmware (.XUF file) to USB and insert USB into the controllers USB port. Press this Update button. Press the green check to start the update.
Page 136: Flexbus Main Screen Details
Flexbus Lite Main Screen Live Status Panel Navigation Menu Displays the live status of all receivers. See below for receiver symbol representation. Returns to Home screen from any screen. Display Pump Changes the Live view panel to the Pump Alarm History Displays red when there is an alarm notification.
Page 137 What the Receiver Symbols Represent: Receiver is online and idle. Lost communication with receiver. Cause may be receiver's power is off or a disconnected communication wire. Receiver is inactive. Receiver is alarming. Virgin material filling Regrind material filling receiver. receiver. Demand for material.
Page 138: Flexbus Wiring Diagram
Flexbus Lite Wiring Diagrams...
Page 140: Flexbus Lite Component Map
Flexbus Lite Component Map...
Page 141: Decommissioning And Disposal
We welcome comments and suggestions on ways we can improve this manual. For additional information, or to download the latest copy of this manual or any other Maguire manual, please visit our website or contact us directly. Web: www.maguire.com...
Page 142: Warranty
MAGUIRE PRODUCTS neither assumes nor authorizes any other persons to assume for it any other liability in connection with the sale of its Weigh Scale Blenders.
Page 143: Technical Support And Contact Information
Tamworth Staffordshire B775DY Tel: + 44 1827 265 850 Fax: + 44 1827 265 855 Email: info@maguire-europe.com Maguire Products Asia PTE LTD Main Office 15 Changi North Street 1 #01-15, I-Lofts Singapore 498765 Tel: 65 6848-7117 Fax: 65 6542-8577 E-mail:...

This manual is also suitable for:

Flexbus lite

MAGUIRE Weigh Scale Blender 4088 TSC Installation Operation & Maintenance

Introduction

Introduction

Blender Setup and Installation

Blender Operation

Blender Troubleshooting and Maintenance

Flexbus Lite Integrated Loading System

Quick Links

Chapters

Troubleshooting

Need help?

Questions and answers

Related Manuals for MAGUIRE Weigh Scale Blender 4088 TSC

Summary of Contents for MAGUIRE Weigh Scale Blender 4088 TSC

This manual is also suitable for:

Table of Contents
