SECTION 8
8.5

Replacing the Power Supply

Parts Required:
Power Supply Replacement Kit P/N 186-0216
All repairs to the BIS VIEW Monitoring System should be made only
by a qualified Biomedical Engineering Technician or other authorized
personnel.
POWER SUPPLY IS INTERNALLY FUSED. REPLACE POWER
SUPPLY ONLY WITH ASPECT MEDICAL SYSTEMS BIS VIEW
POWER SUPPLY.
To replace the power supply, you will need a Philips #2 screwdriver. Follow the instructions
below:
1. Unplug A/C line cord from the BIS VIEW monitor.
2. Lay the monitor screen-side-down on a scratch-free work surface so that the
Battery/Power Supply cover is accessible.

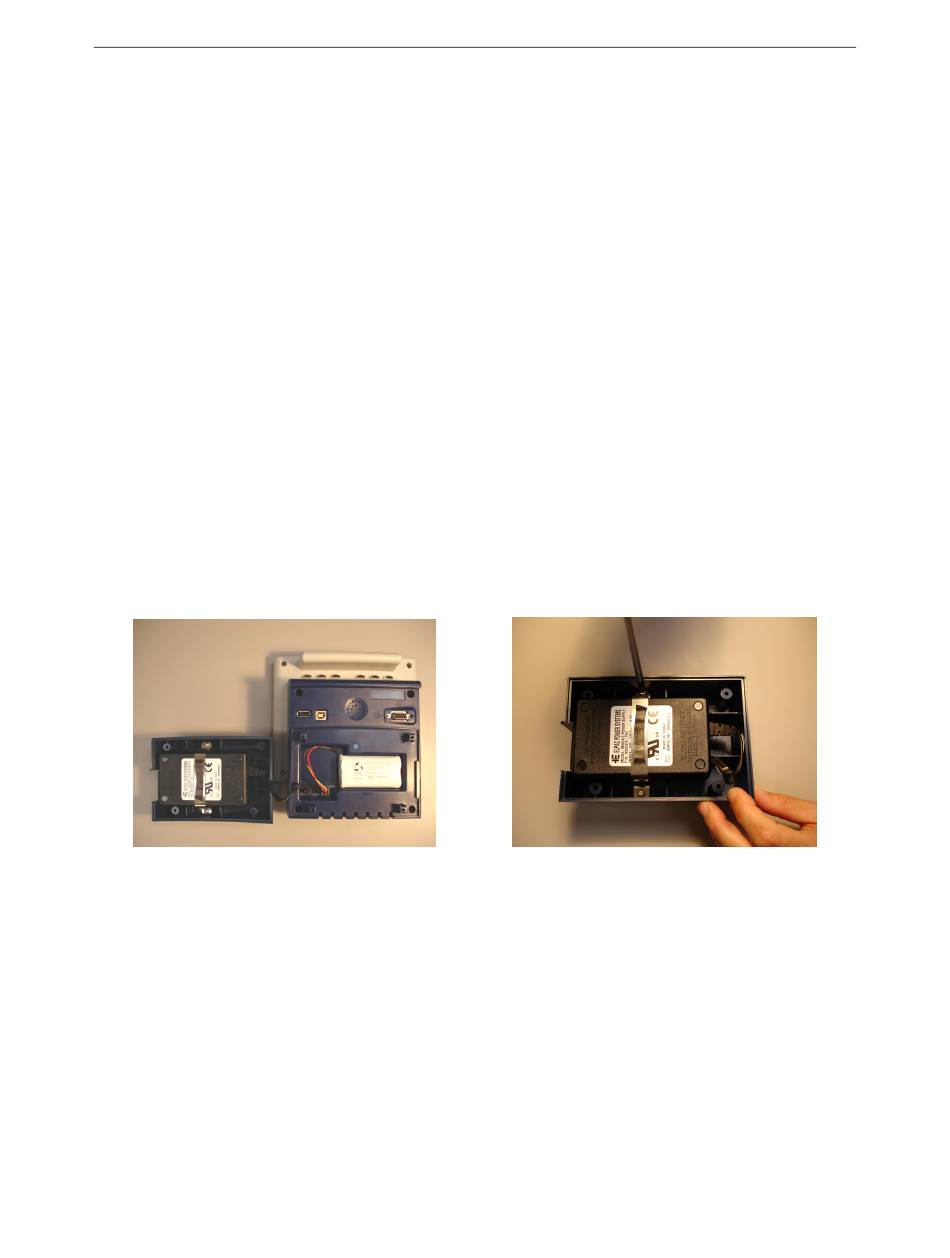

3. Remove 4 screws from the Battery/Power Supply cover and remove the cover. The
power supply is located inside the cover.
4. Unplug (squeeze and pull to remove) the battery and the power supply connectors.
5. Remove screws from the power supply bracket and remove the old power supply.
6. Insert new power supply into the cover, lining up the A/C power receptacle with the
cutout in the cover.
7. Replace power supply bracket and install screws (hand-tighten only).
8. Reconnect the power supply.
9. Reconnect the battery.
10. Replace the cover and 4 screws (hand-tighten only) and reconnect the A/C power
cord.
SERVICING THE BIS VIEW MONITORING SYSTEM
Caution:
WARNING:
8-4
Tools Required:
Philips #2 screwdriver
