SECTION 2
_______________________________________________________________________

2.2.2 The BISx and Patient Interface Cable (PIC)

The BISx receives, filters, and processes patient EEG signals. It is located close to the
patient's head where the EEG signal is less subject to interference from other medical
equipment.
Monitor Interface
Cable
The BISx is shown in Figure 4. Its long flexible Monitor Interface Cable connects to the
front of the monitor. The Patient Interface Cable (PIC) connects the BIS sensor to the
BISx.
The attachment clip on the BISx is used to secure it in a convenient location near the
patient's head.
2.3

Instrument Identification

BIS VIEW Monitor
Monitor identification information is permanently marked on the rear panel. This
information includes instrument model and serial numbers, power ratings, cautions, and the
Aspect Medical Systems shipping address.
BISx
The BISx identification information is permanently marked on its rear panel. This
information includes instrument model and serial numbers and cautions.
PIC
The Patient Interface Cable lot number is stamped on the cable itself.
Software Revision Numbers
Software revision numbers may be displayed by selecting [System Configuration] from the
Diagnostics Menu.
BIS VIEW MONITORING SYSTEM OVERVIEW

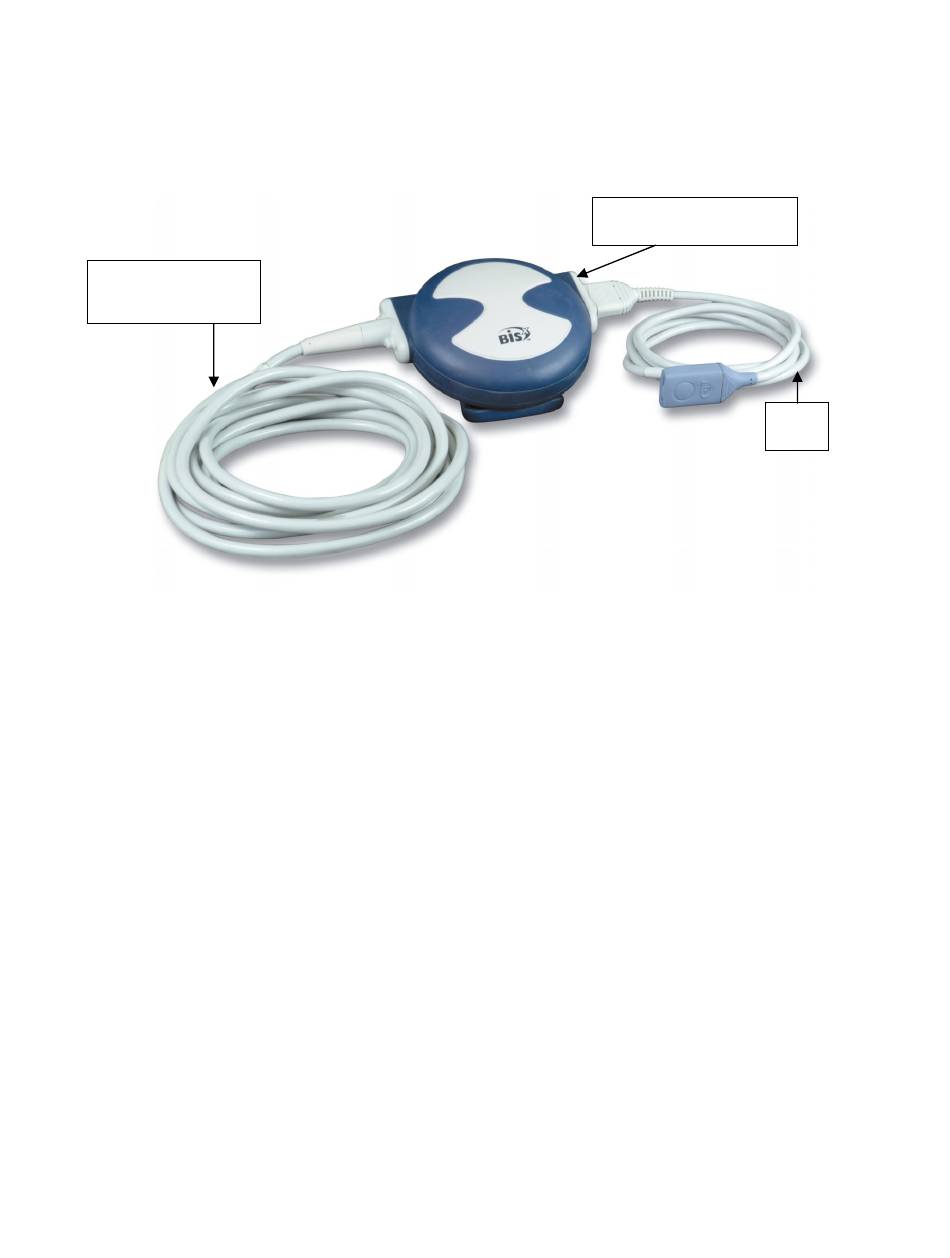

Figure 4 - The BISx and PIC

2-4
Bulkhead Connector
PIC
