Figure 3 - Rear Panel - Aspect BIS VIEW Service Information Manual

SECTION 2
_______________________________________________________________________
USB Port
(Type A)
USB Port
(Type B)
Battery/Power
Cover
Supply
Rear Panel

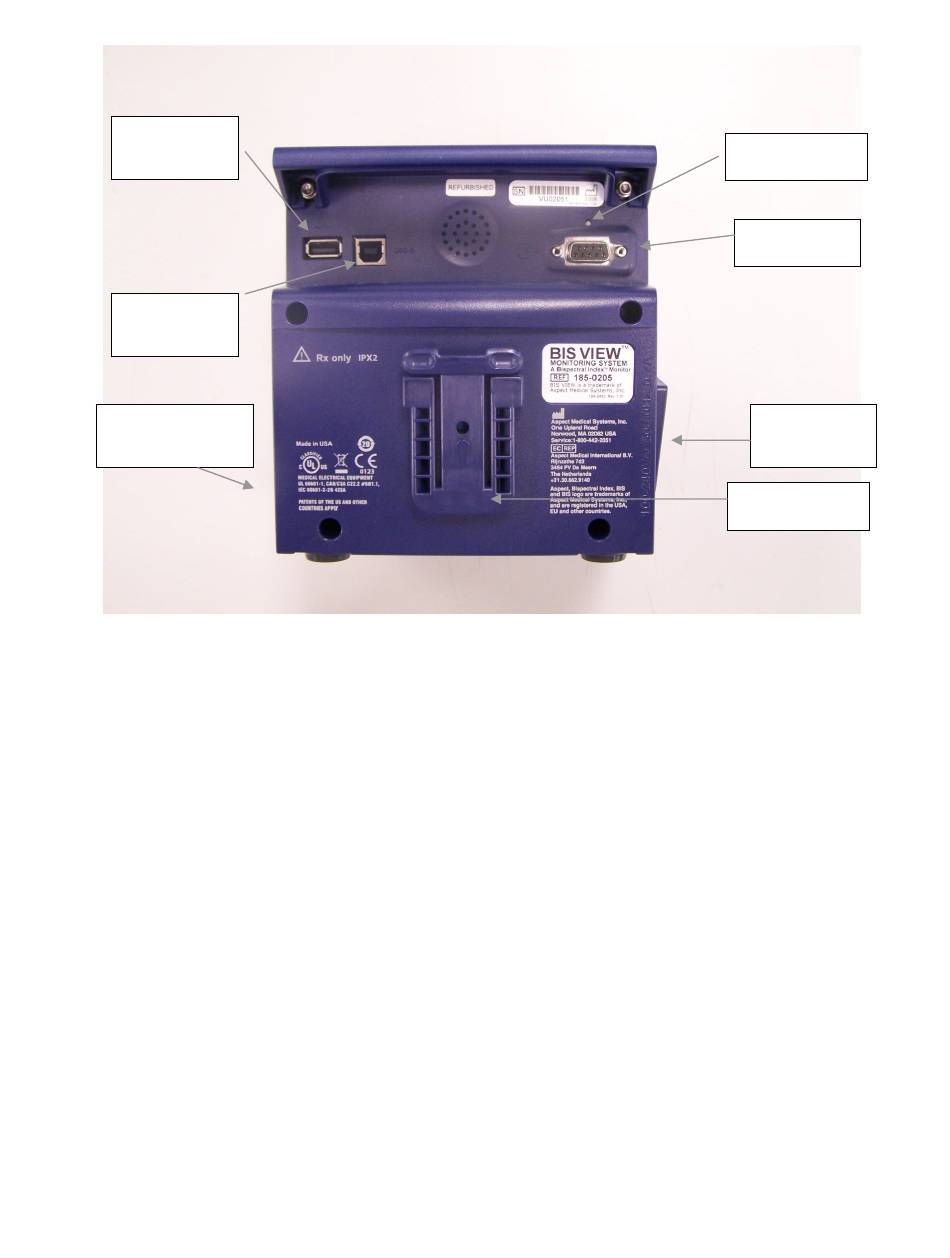

The rear panel components are pictured in Figure 3. They include: two USB ports (Type A
and B), the clamp shoe, an RS-232 port, the Reset button, the Battery/Power Supply cover,
and the power cord receptacle.
The clamp shoe allows the monitor to slide into the pole clamp so that it can be attached to
a ½" – 1 ½" diameter vertical pole.
BIS VIEW MONITORING SYSTEM OVERVIEW

Figure 3 - Rear Panel

2-3
Reset Button
Serial Port
Power Cord
Receptacle
Clamp Shoe
