2 BIS VIEW MONITORING SYSTEM
OVERVIEW
2.1 Introducing the BIS VIEW Monitoring
System
The BIS VIEW Monitoring System processes raw EEG signals to produce a single number,
called the Bispectral Index, or BIS, which correlates to the patient's level of hypnosis. It
operates from an AC power source of 100V to 240V, 50/60Hz, and provides approximately
45 minutes of automatic back-up battery power.
The monitor is menu-driven. A detailed description of how the BIS VIEW Monitoring
System works is included in the BIS VIEW Operating Manual. Please refer to the BIS VIEW
Operating Manual for additional information.
BIS Sensor

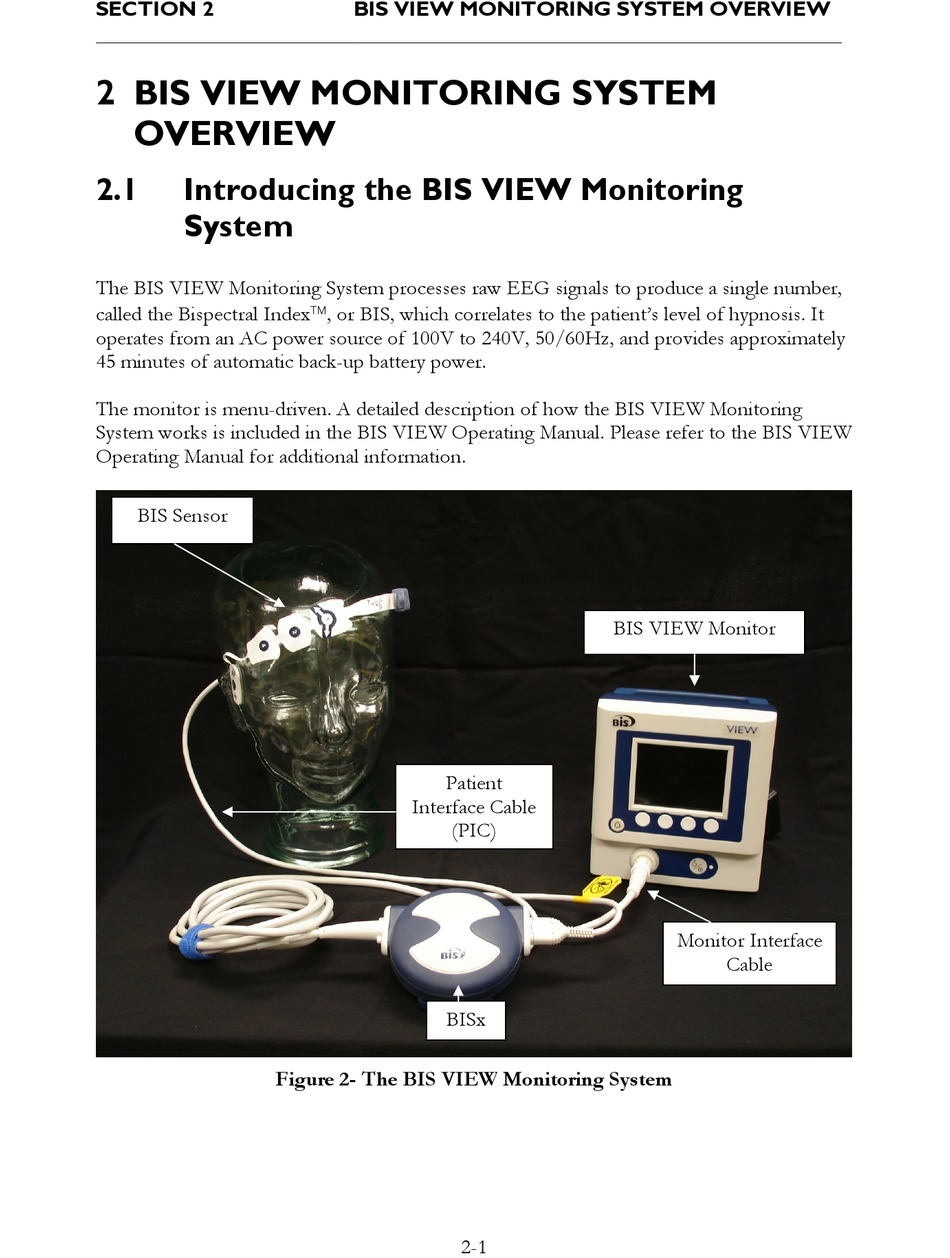

Figure 2- The BIS VIEW Monitoring System

BIS VIEW MONITORING SYSTEM OVERVIEW

Patient
Interface Cable
(PIC)
BISx
2-1
BIS VIEW Monitor
Monitor Interface
Cable
