Thank you for your purchase of an Elite Screens edge frame projection screen.

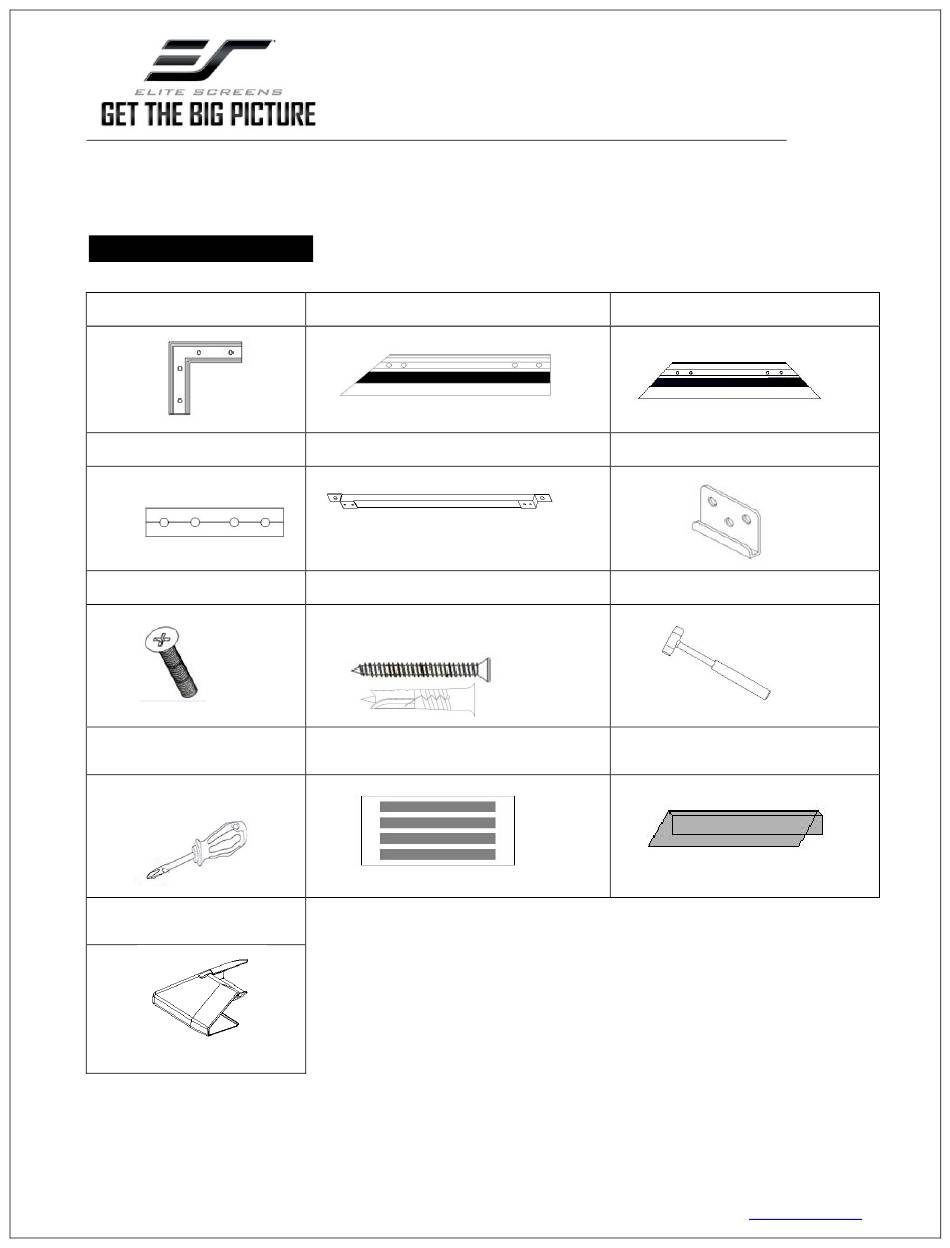

Hardware and Parts List
Please make sure all parts listed below are included before installation.
A. Elbow joint x4 pcs
D. Center joints x2 pcs
G. M5x15 screw x24 pcs
J. Screwdriver x1 pc
M. Corner sleeve x4 pcs
Rev.10252019MZ
Edge Frame Projection Screen
B. Top/Bottom horizontal fame x4 pcs
E. Center Support bar x1-2 pcs
(135"-150"x2pcs)
H. M5x50 screws and anchor x6 pcs
K.
Black Tape x1 bag
1
User's Guide
C. Left/Right vertical frame x2 pcs
F. Wall brackets x2-3 pcs
I. Rubber hammer x1 pc
L.
Bezel trim x6 pcs
www.elitescreens.eu

Advertisement

loading
Need help?

Need help?

Do you have a question about the Edge Frame and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens Edge Frame

Summary of Contents for Elite Screens Edge Frame

  • Page 1 Edge Frame Projection Screen User’s Guide Thank you for your purchase of an Elite Screens edge frame projection screen. Hardware and Parts List Please make sure all parts listed below are included before installation. A. Elbow joint x4 pcs B. Top/Bottom horizontal fame x4 pcs C.

  • Page 2: Frame Assembly

    Edge Frame Projection Screen User’s Guide Frame Assembly 1. Insert the center joint into one of the ½ horizontal frames (B) and fasten it with the two M5x15 screws (G). 2. Insert the other ½ horizontal frame piece to the center joint and fasten also using two M5x15 screws.
  • Page 3 Edge Frame Projection Screen User’s Guide Horizontal long frame (B) push push Vertical short frame (C) 6. Join the remaining horizontal long frame (B) with the frame built in the previous steps as shown below. Horizontal Long frame (B) push push Rev.10252019MZ...

  • Page 4: Screen Material Installation

    Edge Frame Projection Screen User’s Guide 7. Make sure all four corners are properly in place to form a perfect square. Then fasten the four angles with the M5x15 Screws (G). Four corners join correctly to form a perfect square. Use the included...
  • Page 5 Edge Frame Projection Screen User’s Guide 3. After all of the corners of the frame have been properly aligned, attach the material to the frame in the following order A→B→C→D (see instructions below for details). Attach the screen material to the corners as shown below.
  • Page 6 Edge Frame Projection Screen User’s Guide 5. Proceed to attach the rest of the material to the frame as described in the illustrations below. Grasp the middle of the screen material and attach it to the velcro strip on the frame...
  • Page 7 Edge Frame Projection Screen User’s Guide Screen Material Removal 1. Detach the velcro from the frame. 2. Gently pull back the material to release it from the velcro connections on the corners Pull back the screen material from the velcro connection along the edges of the frame to detach it.

  • Page 8: Notice To Installer

    Edge Frame Projection Screen User’s Guide Support bar installation (for models 135”- 150"): 1. Position the center support bar (E) and M6 hex screws in the areas of the frame shown in fig 1. (Each about one thirds the way in from the end of the frame.) Align the hole on each end of the support bar with the M6 hex screws located at the top and bottom frame sections.
  • Page 9 Edge Frame Projection Screen User’s Guide Since angular-reflective means that the projected image will reflect at the mirror- opposite angle, it is important to position the projector so that the viewer will get the best possible image. Step 1: Establish the general “eye level” of the viewers...
  • Page 10 NOTE: Make sure the bottom edge trim with the Elite Screens logo is installed on the correct side. The back of the material should be labeled with a DOWN sticker to indicate the material is facing in the down position.
  • Page 11 Edge Frame Projection Screen User’s Guide 3. After properly aligning all trim pieces, carefully remove trim piece A (see Figure 3 below). Remove the inside backing of the tape and place the trim piece in its original position on the frame. Repeat this step for the remaining trim pieces in the following order: B-C-D-E-F.

  • Page 12: Installation

    4. The design of the wall brackets allows the frame to slide over them through its sides. This is an important feature of the installation design as it allows your screen to be properly centered. For more information, support or your local Elite Screens contact, please visit www.elitescreens.eu...
