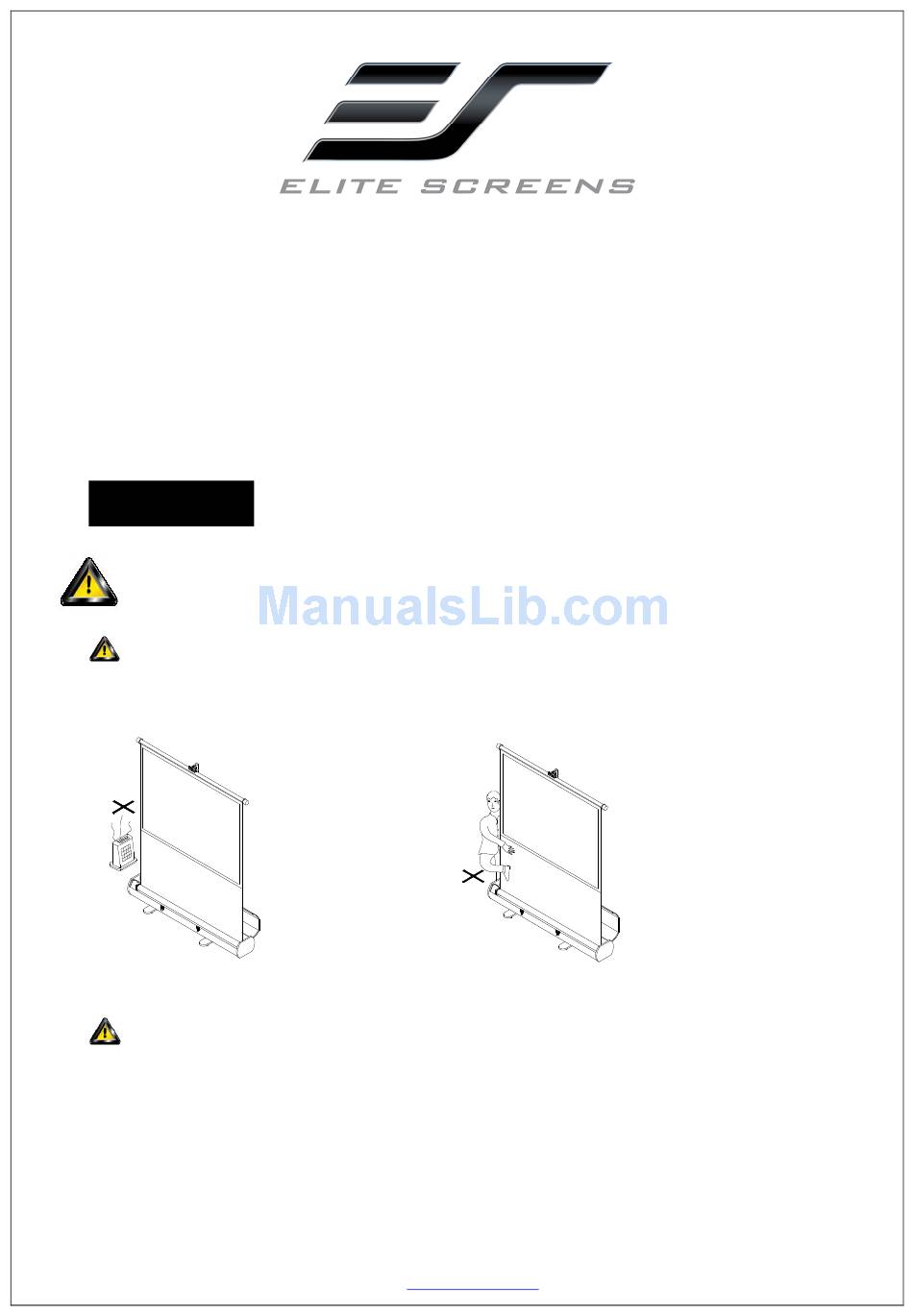

Precautions:
Warning! Screen damage can result from product mishandling if the following
precautions are not followed.
In accordance with practicing home fire safety and to avoid screen damage, do not place the
screen near or beside a fireplace or high temperature appliances such as a gas stove, BBQ or
heater. (Fig. 1)
Fig.1
Place the screen beyond the reach of children. (Fig.2)
Rev101912-JA

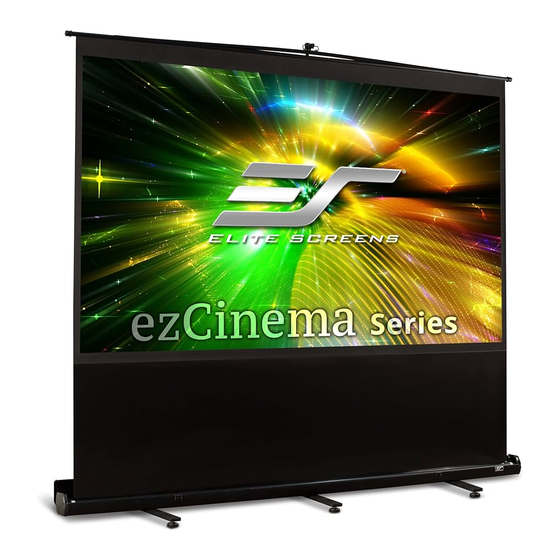

ezCinema Series
Portable Floor Pull-Up Screen
USER'S GUIDE
www.elitescreens.com
Fig.2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ezCinema Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens ezCinema Series

Summary of Contents for Elite Screens ezCinema Series

  • Page 1 Series Portable Floor Pull-Up Screen USER’S GUIDE Precautions: Warning! Screen damage can result from product mishandling if the following precautions are not followed. In accordance with practicing home fire safety and to avoid screen damage, do not place the screen near or beside a fireplace or high temperature appliances such as a gas stove, BBQ or heater.
  • Page 2 PARTS IDENTIFICATION: For models 100”, 120”, 135” and 150” Pull hook Upper scroll bar Note: Second telescoping Front rod available on 150” models only. Bracket Hook Black Masking Border Edge Small support rod Locking sleeve White projection surface Bottom Black Masking Big support rod Short Foot Cup Long Foot Cup...

  • Page 3: Setting Up The Screen

    Setting up the screen Installation: The ezCinema screen is designed to be used as an easy to operate portable screen for a variety of presentation environments. Its design enables it to be versatile for use in either classroom, conference room, home or patio presentations. When packed, the unit carries with ease and opens up for projection presentations within seconds.
  • Page 4 Installing the support rod: First, make sure that the hanging hook is pointing toward the front facing the same direction as the screen, then insert the square end of the telescopic support rod into the support plate as shown below. Support Plate Pull up the screen:...

  • Page 5: Adjusting The Screen

    Adjusting the screen: Hold the screen with the left hand when the screen has been stretched to the desired position, and then rotate the locking sleeve clockwise with the right hand until the telescopic rod is properly locked into position. Screen completely assembled Below diagrams just used for reference and may vary on your model.
  • Page 6 2. Retract the screen: Remove the pull hook from the support bracket by lifting it about 2 cm up and then hold on to the pull hook and lower the screen gently into the box. 3. Pulling out the telescopic support rod: After telescoping the small supporting rod to its shortest position and tightening the locking sleeve, take out the supporting rod from the support plate.
  • Page 7 4. Please use a clean cotton cloth or soft dust brush to remove any dust particles on the screen. 5. The screen material may be cleaned with mild soap and water on a soft cloth For more information, technical support or your local Elite Screens contact, please visit www.elitescreens.com...
