Aeon AcousticPro UHD Series
EDGE FREE® Fixed Frame Sound Transparent Projection Screen
User's Guide
Product Description: The Aeon AcousticPro UHD Series is a fixed frame projection screen that uses Elite's EDGE
FREE® technology. The EDGE FREE
design resembles a giant size flat panel TV display. The Aeon includes
®
Edge trim as an installation option to further enhance the frame appearance and absorb projector overshoot. An
optional LED backlighting kit is available for added visual appearance.
For more information on the LED kit please visit:
http://www.elitescreens.com/led

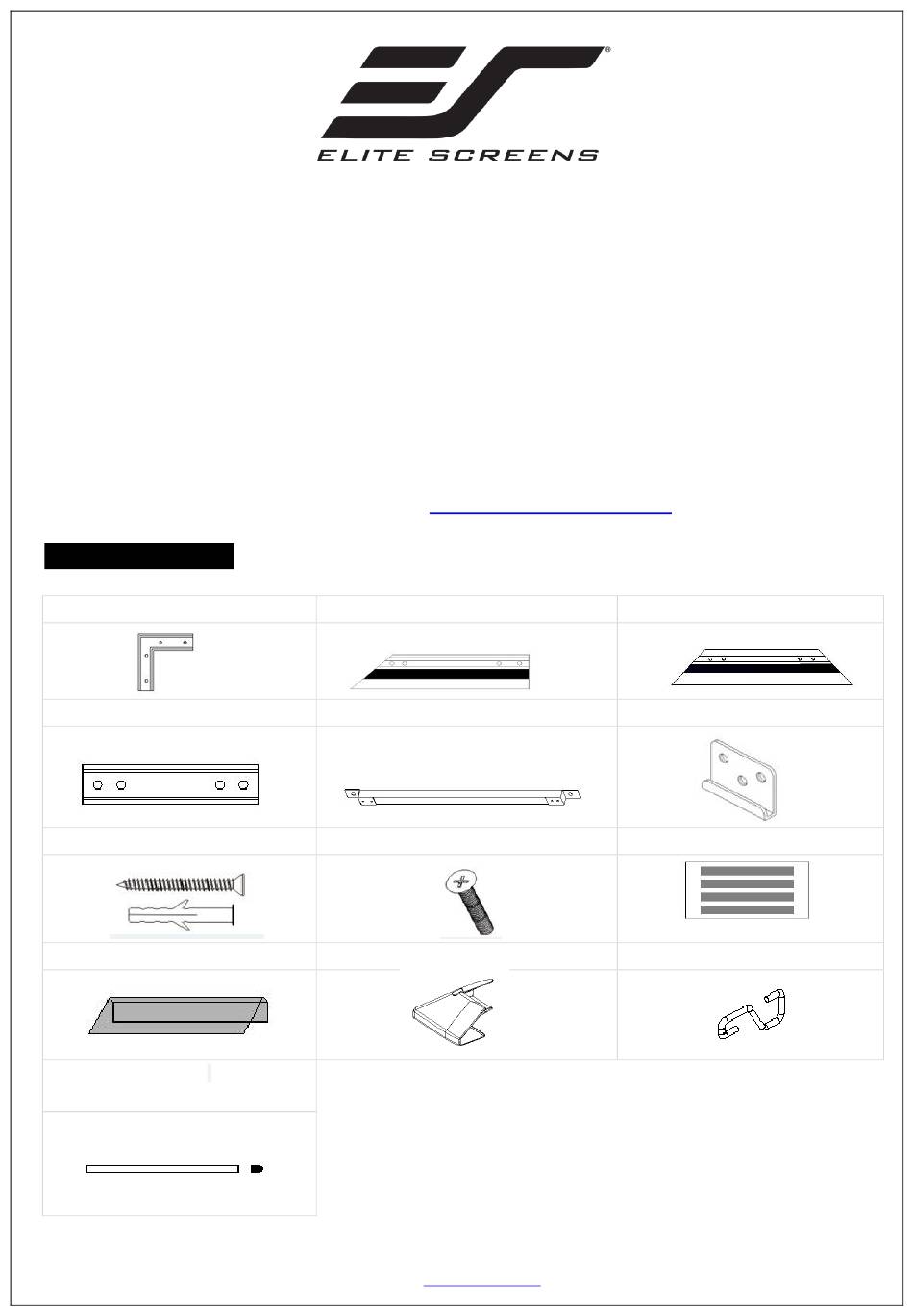

Hardware and Parts List
Please make sure all parts listed below are included before installation.
A. Elbow joint x 4 pcs
B. Top/Bottom horizontal fame x 4 pcs
C. Left/Right vertical frame x 2 pcs
D. Center joints x 2 pcs
E. Center Support bar x 1-2 pcs
F. Wall brackets x2-3 pcs
G. M5x50 screws and anchor x 6 pcs
H. M5x15 screw x 24 pcs
I. Black Tape x 1 bag
J. Edge trim x6 pcs
K. Plastic corner sleeve x 4 pcs
L. Hook
M. Fiberglass rod x 6 pcs &
Plastic sleeve x 12 pcs
Rev.041717-DR
www.elitescreens.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EDGE FREE Aeon AcousticPro UHD Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens EDGE FREE Aeon AcousticPro UHD Series

Summary of Contents for Elite Screens EDGE FREE Aeon AcousticPro UHD Series

  • Page 1 Aeon AcousticPro UHD Series EDGE FREE® Fixed Frame Sound Transparent Projection Screen User’s Guide Product Description: The Aeon AcousticPro UHD Series is a fixed frame projection screen that uses Elite’s EDGE FREE® technology. The EDGE FREE design resembles a giant size flat panel TV display. The Aeon includes ®...
  • Page 2 Frame Assembly 1. Insert the center joint into one of the ½ horizontal frames (B) and fasten it with the two M5x15 screws (H). 2. Insert the other ½ horizontal frame piece to the center joint and fasten also using two M5x15 screws. 3.

  • Page 3: Screen Material Installation

    6. Join the remaining horizontal long frame (B) with the frame built in the previous steps as shown below. push push Horizontal Long frame (B) 7. Make sure all four corners are properly in place to form a perfect square. Then fasten the four angles with the M5x15 Screws (H).
  • Page 4 Screen material back facing up Velcro 3. After all of the corners of the frame have been properly aligned, attach the material to the frame in the following order A→B→C→D (see instructions below for details). Attach the screen material to the corners as shown below. 3) Fold over second side 4) Repeat until all four 1) Stretch the screen...
  • Page 5 Note: Represents the screen material Note: The black shaded part represents the velcro on the frame. That Velcro end will ultimately attach with the other velcro end on the screen material. 5. Proceed to attach the rest of the material to the frame as described in the illustrations below. Grasp the middle of the screen material and attach it to the velcro strip on the frame Lay the Velcro end on the screen...
  • Page 6 Attach in the following sequence: a-b-c-d Screen Material Removal Follow the steps to properly remove the screen material from the frame. This procedure will ensure prolonging the life of the screen material. 1. Detach the velcro from the frame. 2. Gently pull back the material to release the material from the velcro connections on the corners. Pull back the screen material from the velcro connection along the edges of the frame to detach it.
  • Page 7 Align the M6 screws with the two holes. Support bar installation (for models 135” and above): 1. Position the center support bar (E) to the area of the frame shown in figure 1. Align the hole on each end of the support bar with the M6 hex screws on the top and bottom frames.
  • Page 8 Opening 2. Put the plastic sleeves on the fiberglass rods. 3. Insert the fiberglass rods (M) through the openings. The longer rods are used on the vertical edges of the screen material, and the shorter rods are used on the horizontal edges, as shown below. Black backing 4.
  • Page 9 Fehler! Fig.1 Fehler! Fehler! Arrow marks Fig.3 Fig.2 Example of properly affixed hook to frame. NOTE: Make sure the hooks are affixed correctly as they are not easy to remove from the black mesh backing once they have been affixed. 5.
  • Page 10 Next, stretch the black backing and affix to the hooks from the middle in the following sequence a→b→c→d Lastly, affix the black backing to the remaining hooks. Add more hooks as needed to achieve flatter results in the areas that are not flat. Edge trim Installation The Aeon fixed screen is EDGE FREE®, but you may install the Edge trim to provide it with an elegant thin bezel finish.
  • Page 11 NOTE: Make sure the bottom edge trim with the Elite Screens logo is installed on the correct side. The back of the material should be labeled with a DOWN sticker to indicate the material is facing in the down position. The Elite Screens logo should be installed on the DOWN side 3.

  • Page 12: Installation

    4. The design of the wall brackets allows the frame to slide over them through its sides. This is an important feature of the installation design as it allows your screen to be properly centered. For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com Rev.041717-DR...
