Flame Rod
Spark Plug
b i
urNer NstallatioN
Eclipse ExtensoJet v2 Installation Guide No. 230, 9/17/2008
Flame Rod
For detailed information on how to install and connect a flame rod,
refer to Bulletin/Info Guide 832.
Installing the Spark Plug
Install the spark plug into the opening in the rear cover.
Note:
Do not apply any grease to the threads of the spark plug.
You can cause bad grounding of the spark plug if you
apply grease to it. Bad grounding of the spark plug results
in a weak spark.
Dimensions
The burner attaches to the wall of the chamber with bolts or studs
welded to chamber wall through holes "C". For full information on
the dimensions, refer to specific datasheets.

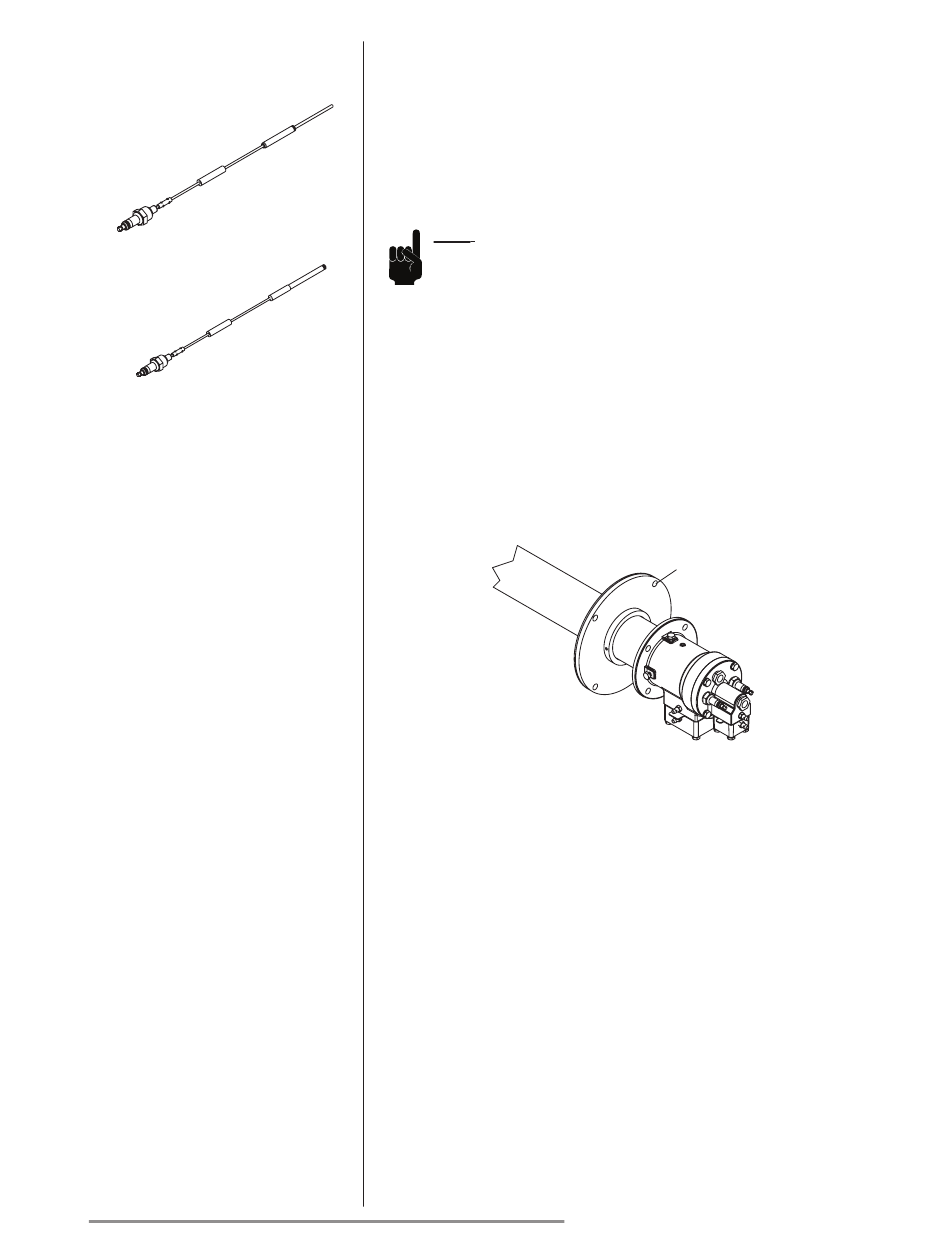

Figure 3.1 Burner Attachment
Chamber Wall
Make sure that the wall of the chamber is strong enough to carry
the weight of the burner. If necessary, reinforce the area where
you plan to install the burner to support the weight of the burner.
Avoid Losses
To make sure that heat does not go back to the casing of the
chamber, it is important that the radial clearance around the
combustor is filled with ceramic fiber.
