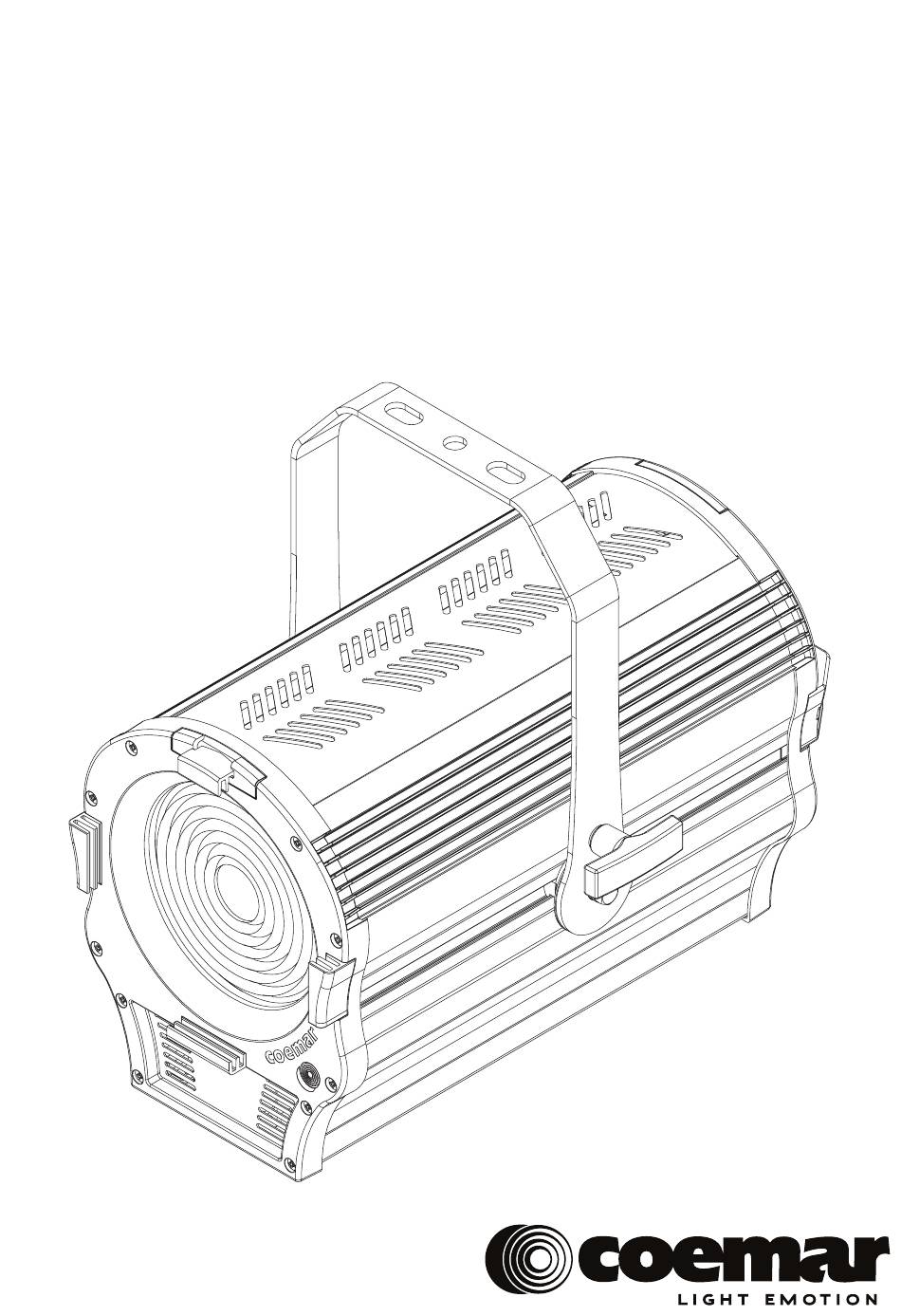

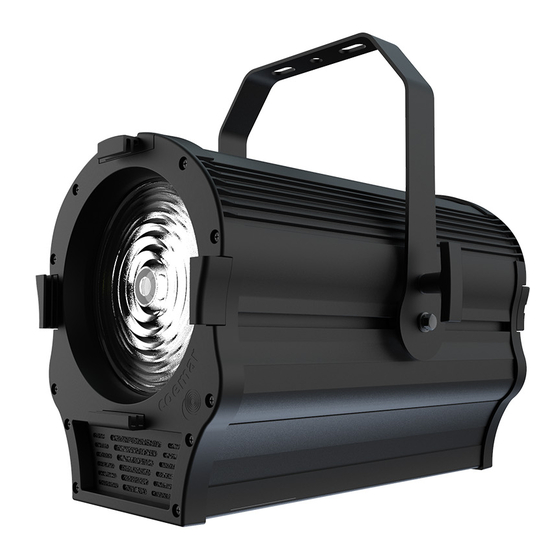

  • Page 1 Otello HD FullSpectrum...
  • Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Otello HD FullSpectrum: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation..........................Pag. 4 1.1 Packaging................................Pag. 4 1.2 Transportation..............................Pag. 4 2. General information..............................Pag. 4 2.1 Safety informations............................Pag. 4 2.2 Warranty conditions............................Pag. 5 2.3 EC Norms .................................Pag. 5 3. Product specifications ............................Pag. 6 3.1 Technical characteristics - Otello 6.........................Pag. 6 3.2 Technical characteristics - Otello 8........................Pag.

  • Page 4: Packaging And Transportation

    Ensure the packaging contains: 1 Otello HD FullSpectrum 1 Instruction manual 1 Main power plugs Transportation The Otello HD FullSpectrum should be transported in either its original packaging or in an appropriate flight case. . General information Safety informations Fire prevention: 1.

  • Page 5: Warranty Conditions

    3. The level of technology of Otello HD FullSpectrum requires the use of specialised person- nel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. Never con- nect the fixture if there is no earth connection.

  • Page 6: Product Specifications

    Product specifications Technical characteristics - Otello 6 Power supply 90-264 V, auto-sensing, 50/60 Hz Maximum current 0.98 A a 230 V - 1.86 A a 115 V Power factor Cosφ = 0.93 min. Max power consumption 210 W Red, Green, Blue, Cyan, Lime, Amber color mixing Color temperature CCT from 2.700 to 6.500 K Color Rendering Index (CRI)

  • Page 7: Projector Dimensions

    Projector dimensions Otello 6 *motorized zoom version Otello 8 *motorized zoom version...

  • Page 8: Unit's Main Components

    Unit’s main components Components description Adjustable yoke Yoke locking handle Fresnel lens Color frame holder...

  • Page 9: Back Panel Description

    Back panel description Display Plus button Menu button / Enter button Minus button Back button Color preset button Exit button PowerCon In DMX Out PowerCon Out DMX In...

  • Page 10: Installation

    Mechanical installation Otello HD FullSpectrum may be hung from an appropriate structure in any position or on tripod. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram.

  • Page 11: Powering Up

    180°C, Coemar cod. CV5311). Connection to mains power Otello HD FullSpectrum is equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (at 115 V) fixtures.

  • Page 12: Control Signal Connections

    • The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. • Otello HD FullSpectrum should not be powered through a dimmer as this may damage the internal switching power supply. • Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for the use of Otello HD FullSpectrum.

  • Page 13: Turning The Projector On

    512 controller. A second unit must be addressed as A0018, a third one as A035 and so on. The operation must be carried out on every Otello HD FullSpectrum which has an address different from A001. Altering the DMX address: 1.

  • Page 14: Dmx Chart

    . DMX chart DMX chart 17, 8 channels (motorized zoom version) channel function type of control effect decimal percentage master dimmer proportional adjust luminous output intensity from 0 to 100% - 255 - 100% proportional control of the color proportional - 255 - 100% percentage from 0 % to 100 %...
  • Page 15 no effect R24 - Scarlet red 10 - 34 R02 - Bastard amber 35 - 59 R313 - Light relief yellow 60 - 84 R18 - Flame 85 - 109 red tone step R331 - Shell pink 110 - 134 R25 - Orange red 135 - 159 R46 - Magenta...
  • Page 16 step no effect exalts the green color in the mixing and diminishes the proportional - 127 - 20% presence of magenta green saturation step no effect diminishes the presence of green in the mixing and exalts proportional 129 - 254 the magenta color step no effect...

  • Page 17: Dmx Chart Studio Mode (Motorized Zoom Version)

    DMX chart Studio mode (motorized zoom version) channel function type of control effect decimal percentage master dimmer proportional adjust luminous output intensity from 0 to 100% - 255 - 100% step 2.700 K - 24 proportional proportional value from 2.700 K to 3.200 K 25 - 39 step 3.200 K...

  • Page 18: Dmx Chart Rgb Mode (Motorized Zoom Version)

    DMX chart RGB mode (motorized zoom version) channel function type of control effect decimal percentage master dimmer proportional adjust luminous output intensity from 0 to 100% - 255 - 100% dimmer fine proportional fine dimmer control 16 bit - 255 - 100% proportional control of the color proportional...
  • Page 19 no effect no effect 10 - 22 reset of all the motors (only once) 23 - 35 step no effect 36 - 48 fan at low-noise speed 49 - special functions fan at studio speed 62 - 74 fan at auto-silent speed 75 - 87 proportional fan speed control...

  • Page 20: Dmx Chart 16, 7, 1 Channels (Manual / P.o. Version)

    DMX chart 16, 7, 1 channels (manual / P.O. version) channel function type of control effect decimal percentage 16 7 master dimmer proportional adjust luminous output intensity from 0 to 100% - 255 - 100% proportional control of the color proportional - 255 - 100%...
  • Page 21 no effect R24 - Scarlet red 10 - 34 R02 - Bastard amber 35 - 59 R313 - Light relief yellow 60 - 84 R18 - Flame 85 - 109 red tone step R331 - Shell pink 110 - 134 R25 - Orange red 135 - 159 R46 - Magenta...
  • Page 22 step no effect exalts the green color in the mixing and diminishes the proportional - 127 - 20% presence of magenta green saturation step no effect diminishes the presence of green in the mixing and exalts proportional 129 - 254 the magenta color step no effect...

  • Page 23: Dmx Chart Studio Mode (Manual / P.o. Version)

    DMX chart Studio mode (manual / P.O. version) channel function type of control effect decimal percentage master dimmer proportional adjust luminous output intensity from 0 to 100% - 255 - 100% step 2.700 K 10 - 24 proportional proportional value from 2.700 K to 3.200 K 25 - 39 step 3.200 K...

  • Page 24: Dmx Chart Rgb Mode (Manual / P.o. Version)

    DMX chart RGB mode (manual / P.O. version) channel function type of control effect decimal percentage master dimmer proportional adjust luminous output intensity from 0 to 100% - 255 - 100% dimmer fine proportional fine dimmer control 16 bit - 255 - 100% proportional control of the color proportional...

  • Page 25: Display Panel Functions

    ENTER button to access to any other function. By suitably using all the functions of Otello HD FullSpectrum, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;...

  • Page 26: Main Functions Menu

    10.3 Main functions menu By pressing the Enter key “ ” you enter Otello main menu. dimming curve Dimming curve: Different dimmer curves selectable: exponential (default), linear, logarithmic and halo. linear halo dim to warm Dim to warm: Inserts a softening of the dimmer dynamics and red shift.
  • Page 27 automatic fan mode Fan with automatic operating speed to guarantee maxi- Fan mode: mum light output in all conditions of use, ideal for live 3 different fan mode manually selectable. events, exhibitions and architectural installations. studio Fan at automatic operation speed with limited speed to guarantee silent operation of the product (moderately limited light output, will decrease in case of overheat) ideal for broadcast or theatre applications.

  • Page 28: Measure

    10.4 Measures BOARD temperature NOW: -°C -°C Temperature: MIN: -°C -°C Current temperature values of the fixture. MAX: -°C -°C history MIN: -°C -°C MAX: -°C -°C LED: LED module temperature. Board: electronic board temperature. History: history temperature of the LED and electronic board temperature.

  • Page 29: Firmware Version

    led status LED status: Percentage value of the LED status. unit life: fixture lifetime LED life: Fixture lifetime: module life: - Hour counter of the fixture. Unit life: hours of life of the fixture. LED life: LED module life. Module life: LED module life currently installed. Note: this items can be reset in case of LED module replacement.

  • Page 30: Color Presets

    10.5 Color presets By pressing the color preset button “ ”, on the rear panel, the user will enter the gels preset menu. intensity Intensity: Adjust the luminous output intensity. 2700 K white tone gels White tone gels: 3000 K This channel offers a preset library of various white CCT with a range that goes from 2.700 K and up to 10.000 K, manually selectable without the need of a...
  • Page 31 R24 - scarlet red color gels Factory gels: R02 - bastard amber This channel offers a preset library of various color gels. R313 - light relief yellow r18 - flame r331 - shell pink r25 - orange red r46 - magenta r08 - pale gold r27 - medium red r318 - mayan sun...
  • Page 32 r369 - tahitian blue r347 - belladonna rose r381 - baldassari blue r57 - lavander r55 - lilac r4790 - calcolor 90 magenta r92 - turquise r370 - italin blue create new gel green Add new gel: Create customized color gels. Once the color gel has been created, it will be possible to choose which of blue the factory gels to replace;...

  • Page 33: Special Functions Of The Fixture

    10.7 Error messages If a malfunction occurs, Otello HD FullSpectrum has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center.

  • Page 34: Maintenance

    Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. 11.4 Fuses Otello HD FullSpectrum has an automatic fuse that in most cases does not need to be replaced.

  • Page 35: And Answers

    . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: •...
  • Page 36 User notes ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 37 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 38 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
