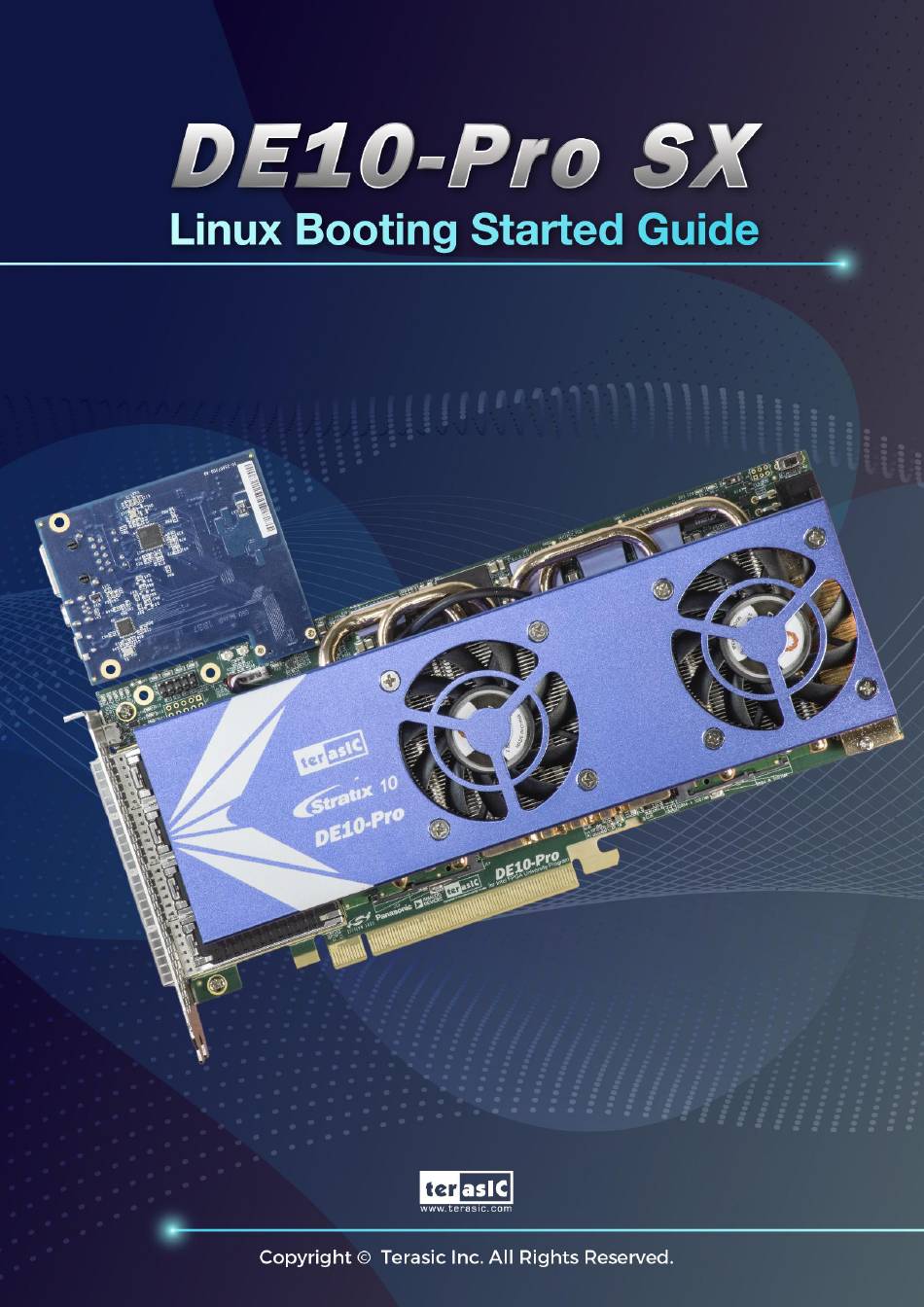

- Page 1 DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019...
-
Page 2: Table Of Contents
............................ 6 NSTALL THE ICRO 1.6 P DE10-P ........................9 OWER N THE BOARD 1.7 S UART T ..........................10 ETTING ERMINAL 1.8 A ................................. 14 PPENDIX ADDITIONAL INFORMATION ............................16 DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019... -
Page 3: Linux Booting On The De10-Pro Sx
UART, Gigabit Ethernet and USB OTG. Below shows that how to assemble the HPS daughter card to the DE10-Pro SX board. Connect the HPS daughter card to the 40-pin I/O connector (see ) of the DE10-Pro Figure 1-1 DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019... - Page 4 Lock the attachment screws to the HPS daughter card to secure it to the DE10-Pro SX(See Figure 1-2 Figure 1-2 Lock the attachment screws to the HPS daughter card DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019...
-
Page 5: Msel Settings
FPGA I/O and HPS. After the HPS initial is completed, the HPS will take over the rest of the boot flows. It will read the booting files from the Micro SD Card and boot the Linux on the DE10-Pro SX board. DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019... -
Page 6: Install The Microsd Card
If the user wants to copy or re-program the microSD card, you can download the Linux image file by referring to the link below: http://url.terasic.com/de10_pro_sx_linux_console Download the programming tool To program a microSD card Linux image you can use a free tool called Win32DiskImager.exe from http://url.terasic.com/win32diskimager... - Page 7 Figure 1-5 Win32 Disk Imager Install the MicroSD Card to the DE10-Pro SX board Users can install the Micro SD Card on the DE10-Pro SX by referring to Figure 1-6 DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019...
- Page 8 Figure 1-6 Steps for installing microSD card DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019...
-
Page 9: Power On The De10-Pro Sx Board
12V DC power supply, then turn on the power switch SW2 on the board to power on the DE10-Pro SX (See Figure 1-8 Figure 1-8 Power on the DE10-Pro SX form external Power DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019... -
Page 10: Setting U Puart Terminal
USB connector of DE10-Pro SX. (Connection setup is shown in Figure 1-9 2. Power on the board and open the computer device manager in Windows. You will find an unrecognized FT232R USB UART (See Figure 1-10 DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019... - Page 11 3. After the driver has been correctly installed, the USB Serial Port is recognized as a port such as COM5 (Open the device manager to know which COM port assigned in your computer). DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019...
- Page 12 “Open” to open the terminal window. Note that the “COM5” on the Serial Line column needs to be modified according to the actual com port on the user's computer. DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019...
- Page 13 Figure 1-12 Putty Window 3. After the board is successfully booted, the Linux will ask for the login name. Type "terasic" for account name and type “123” for the password (See Figure 1-13 Figure 1-13 Putty Window DE10-Pro SX www.terasic.com.tw...
-
Page 14: Appendix
QSPI flash with the factory code. Connect the Micro USB cable to USB blaster II connector of the DE10-Pro SX board. Copy the factory code from the system CD\Demonstrations\QSPI_Factory_Code\ DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019... - Page 15 Execute “flash_program.bat” to erase and program the QSPI flash. Figure 1-15 HPS LED and User LED3 DE10-Pro SX www.terasic.com.tw Linux Botting Started Guide June 28, 2019...
-
Page 16: Additional Information
Additional Information Contact Terasic Users can refer to the following table for technical support and more information of Terasic and our product: Contact Address Contact Method Technical Support Email support@terasic.com Website www.terasic.com Address 9F., No.176, Sec.2, Gongdao 5th Rd, East Dist, Hsinchu City, 30070. Taiwan, 30070...
