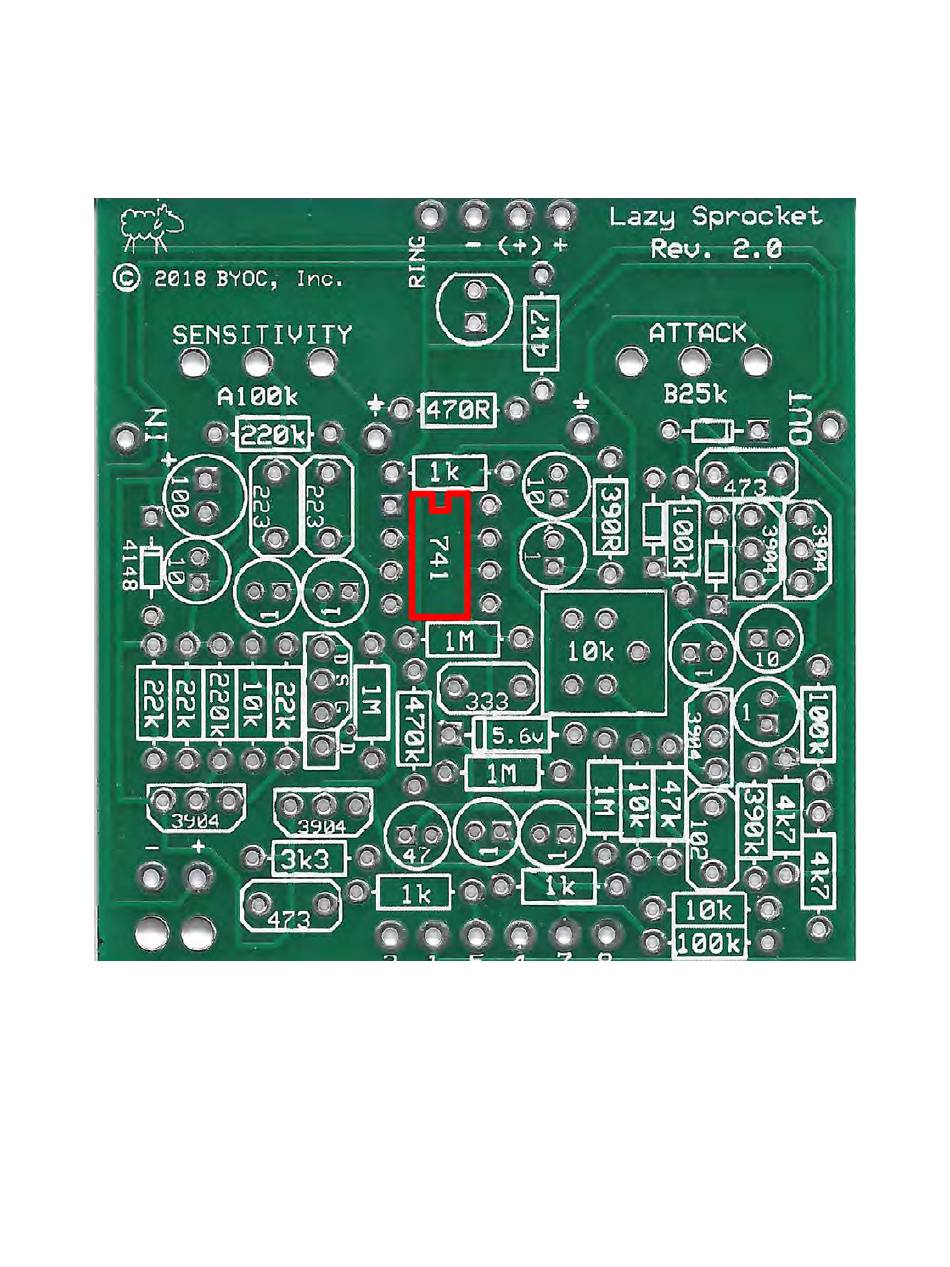

Step 3: Add the IC socket. Match up the u-shaped notch in the socket with
the notch on the layout. If the op amp that is supplied with your kit does not
have a notch in it, there will be a small dot in one corner. This denotes pin
#1. Pin #1 of the op amp should go in the square solder pad.
