WIRING

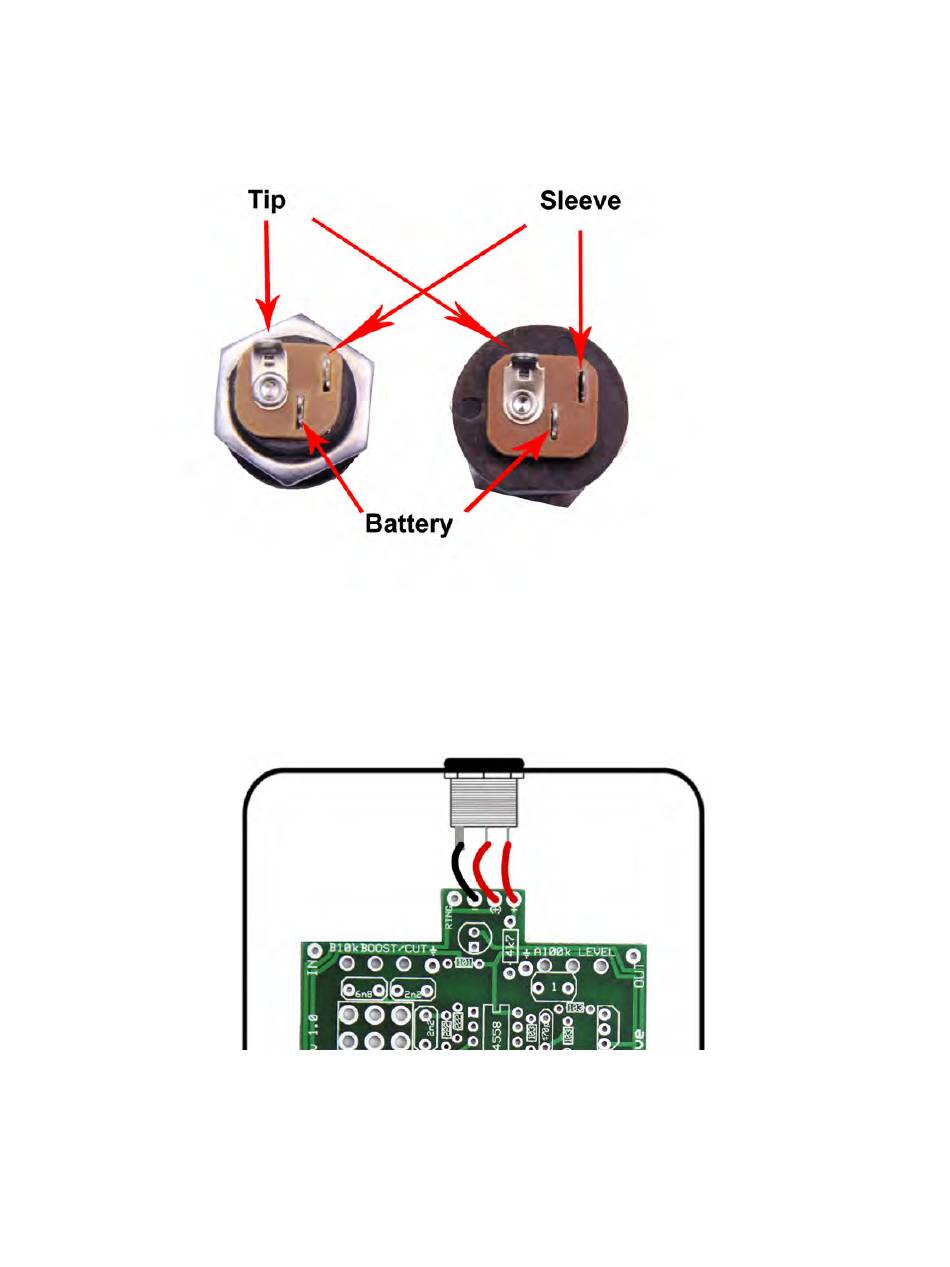

Step 6: Connect the TIP (negative) terminal of the DC adapter jack to the
eyelet on the PCB labeled "-". Connect the SLEEVE of the DC adapter jack
to the eyelet on the PCB labeled "+" farthest to the right. Connect the battery
disconnect terminal of the DC adapter jack to the second eyelet on the PCB
labeled "+" located in the middle of the other two eyelets .
