BYOC Li’l Analog Chorus Kit Building Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
Build Your Own Clone
Li'l Analog Chorus
Kit Instructions
Warranty:
BYOC, Inc. guarantees that your kit will be complete and that all parts and components
will arrive as described, functioning and free of defect. Soldering, clipping, cutting,
stripping, or using any of the components in any way voids this guarantee. BYOC, Inc.
guarantees that the instructions for your kit will be free of any majors errors that would
cause you to permanently damage any components in your kit, but does not guarantee
that the instructions will be free of typos or minor errors. BYOC, Inc. does not warranty
the completed pedal as a whole functioning unit, nor do we warranty any of the
individual parts once they have been used. If you have a component that is used, but feel
it was defective prior to you using it, we reserve the right to determine whether or not the
component was faulty upon arrival. Please direct all warranty issues to:
sales@buildyourownclone.com This would include any missing parts issues.
Return:
BYOC, Inc. accepts returns and exchanges on all products for any reason, as long as they
are unused. We do not accept partial kit returns. Returns and exchanges are for the full
purchase price less the cost of shipping and/or any promotional pricing. Return shipping
is the customer's responsibility. This responsibility not only includes the cost of
shipping, but accountability of deliver as well. Please contact
sales@buildyourownclone.com to receive a return authorization before mailing.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Li’l Analog Chorus Kit and is the answer not in the manual?

Questions and answers

Related Manuals for BYOC Li’l Analog Chorus Kit

Summary of Contents for BYOC Li’l Analog Chorus Kit

  • Page 1 BYOC, Inc. does not warranty the completed pedal as a whole functioning unit, nor do we warranty any of the individual parts once they have been used.
  • Page 2 That being said, we will do our best to help you as much as we can. Our philosophy at BYOC is that we will help you only as much as you are willing to help yourself. We have a wonderful and friendly DIY discussion forum with an entire section devoted to the technical support and modifications of BYOC kits.

  • Page 3: Table Of Contents

    Li’l Analog Chorus Kit Instruction Index Parts Checklist……………………………………….page 4 Populating the Circuit Board……………………….page 7 Enclosure Assembly………………………………...page 14 Wiring………………………………………………..page 18 Operation Overview………………………………...page 23 Schematic……………………………………………page 24 PCB Back Trace Photo……………………………..page 25...

  • Page 4: Parts Checklist

    Parts Checklist for the Li’l Analog Chorus Kit Resistors 1 - 47 Ohm/47 (Yellow/Purple/Black/Gold/Brown) 2 - 470 Ohm/471 (Yellow/Purple/Black/Black/Brown) 3 - 1k/102 (Brown/Black/Black/Brown/Brown) 2 - 4k7 /472 (Yellow/Purple/Black/Brown/Brown) 9 - 10k/103 (Brown/Black/Black/Red/Brown) 1 - 12k/123 (Brown/Red/Black/Red/Brown) 1 - 39k/393 (Orange/White/Black/Red/Brown) 1 - 47k/473 (Yellow/Purple/Black/Red/Brown) 1 - 56k/563...
  • Page 5 Potentiometers: SNAP THE SMALL TABS ON THE TOP OF THE POTS OFF WITH A PAIR OF NEEDLE NOSE PLIERS 1 - B10k (DEPTH) 1 - C1M (RATE) 1 - 100k Trimpot Hardware: 1 - predrilled enclosure w/ 4 screws 1 - Li’l Analog Chorus PCB 1 - 3pdt footswitch 2 - enclosed Jacks 4 - rubber bumpers...

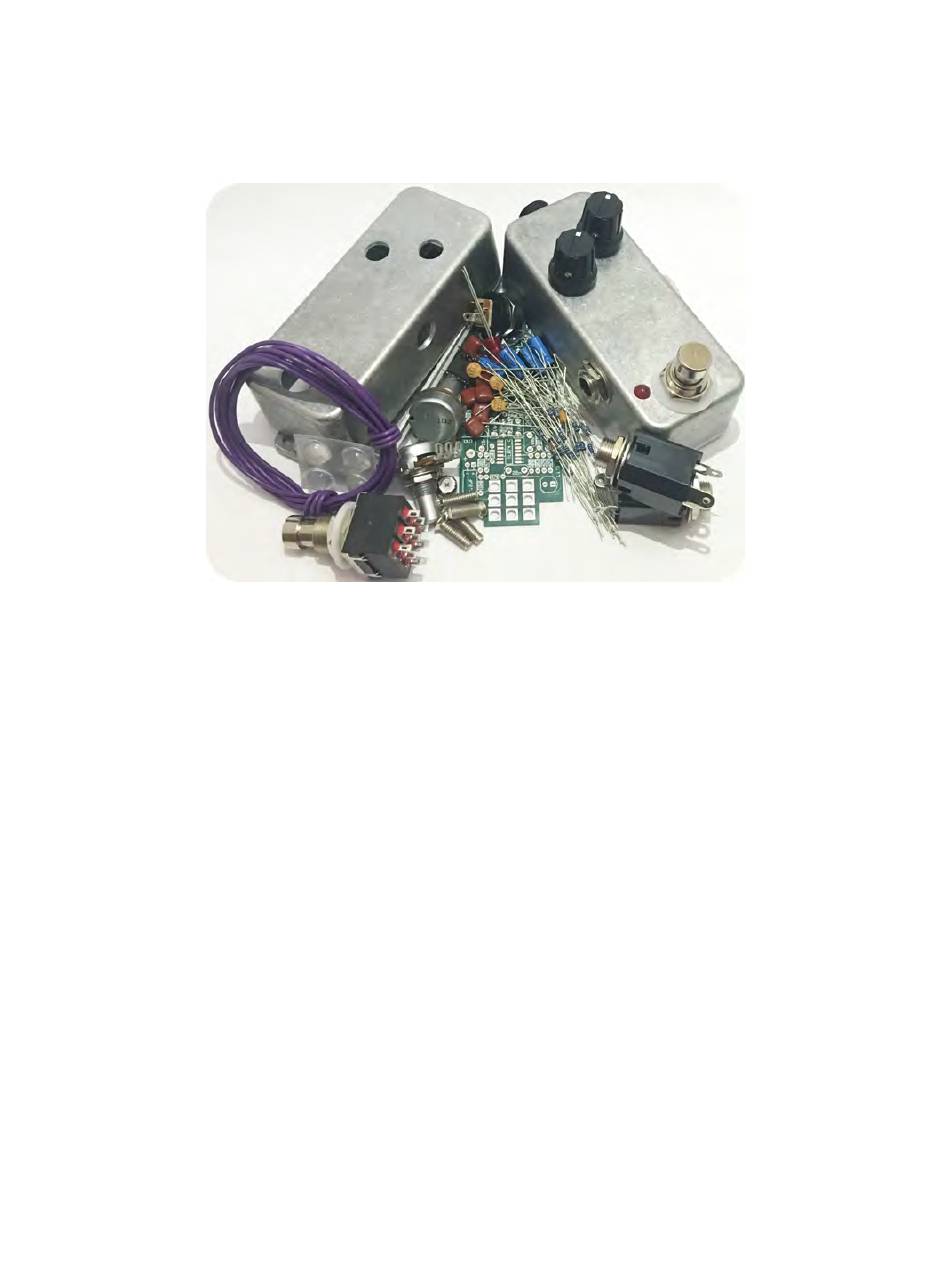

  • Page 6 Your build should look similar to this when you’re finished.

  • Page 7: Populating The Circuit Board

    Populating the Circuit Board Step 1: Add the TL074, LM358, and CD4047 chips. This is a very delicate procedure. Be sure you line up the pins as exact as you can. Be sure to look very closely at the solder connections as you go along to be sure there are no contacts shorting against each other.
  • Page 8 Step 2: Add all the resistors. Resistors are not polarized and can be inserted in either direction.
  • Page 9 Step 3: Add the diode. Be sure to match the end of the diode with the stripe to the layout on the PCB. The striped end should go in the square solder pad.
  • Page 10 Step 4: Add the through-hole IC. Be sure to orient it correctly. There may be a notch on the IC between pins 1 and 8. Line that up with the screenprint on the PCB. If your IC does not have a notch, look for a dot to indicate pin 1. Pin one on the PCB will be a square hole.
  • Page 11 Step 5: Add the trimpot. There are five holes on the PCB, but your trimpot will only use three of them. How to set the trimpot: After you finish your build, you will need to adjust the trimpot until you get the best chorus sound possible. First, set the trimpot to the middle of its rotation, and make slight adjustments until you hear the chorus effect.
  • Page 12 Step 6: Add the film and ceramic disc capacitors. These are non-polarized and can go in either direction. The ceramic disc capacitors are highlighted in yellow.
  • Page 13 Step 7: Add the aluminum electrolytic capacitors. These ARE polarized, meaning there is a positive and negative end. The positive side will have a longer lead and goes in the square solder pad. The negative side will have a shorter lead and a stripe running along the body of the cap, and goes in the round solder pad.

  • Page 14: Enclosure Assembly

    Enclosure Hardware Assembly Step 1: Mount the DC adapter jack.
  • Page 15 Step 2: Mount the potentiometers. You will mount the right potentiometer with the solder lugs facing towards the DC Jack, and the left potentiometer with the solder lugs facing the footswitch as shown below.
  • Page 16 Step 3: Mount the Audio Jacks. You want to orient them so that the SLEEVE terminals (beveled corner of the jack) are facing away from each other. If looking at the inside of the enclosure, the INPUT jack will have its sleeve terminal facing towards the AC jack.
  • Page 17 Step 4: Remove both nuts from the footswitch and mount the footswitch. Orient the footswitch so that the flat sides of the solder lugs are like the diagram below. NOTE: There are no actual number markings on the footswitch. There are two correct ways you can orient the footswitch.
  • Page 18 FOOT SWITCH SOLDER LUG DESIGNATIONS...

  • Page 19: Wiring

    Wiring FLIP PCB OVER!!!
  • Page 20 STEP 1: Wire the PCB as shown in the diagram below. Make all connections to the back side of the PCB and solder on the top (screen printed) side of the PCB. Make the wires as short as possible but allow enough length so that if you need to do any trouble shooting later, you will be able to do so without having to remove all the enclosure mounted components.
  • Page 21 Step 2: Once the AC jack, potentiometer, and IN/OUT jacks are wired, insert the LED in its hole. Insert the long lead into the square hole!!! might want to slightly bend the leads away from each other to keep them in the holes for now.

  • Page 22: Operation Overview

    Step 4: Solder ONLY 1 of the footswitch lugs. Your PCB should be recessed inside the enclosure about 1cm. It should be level. Some of your components may be sticking up out of the enclosure just a bit, particularly the film capacitors. This is to be expected. This is OK. The lid has a deep recess.
  • Page 23 DEPTH: Control the intensity of the chorus effect. RATE: Controls the speed of the chorus effect. Power supply: 2.1mm negative tip. Current Draw: 7.5mA Input Impedance: 470k ohms Output Impedance: 100k ohms...

  • Page 25: Pcb Back Trace Photo

    PCB Back Trace Photo...
  • Page 26 Please visit http://byocelectronics.com/board for any technical support Copyright 2015 BYOC, Inc.
