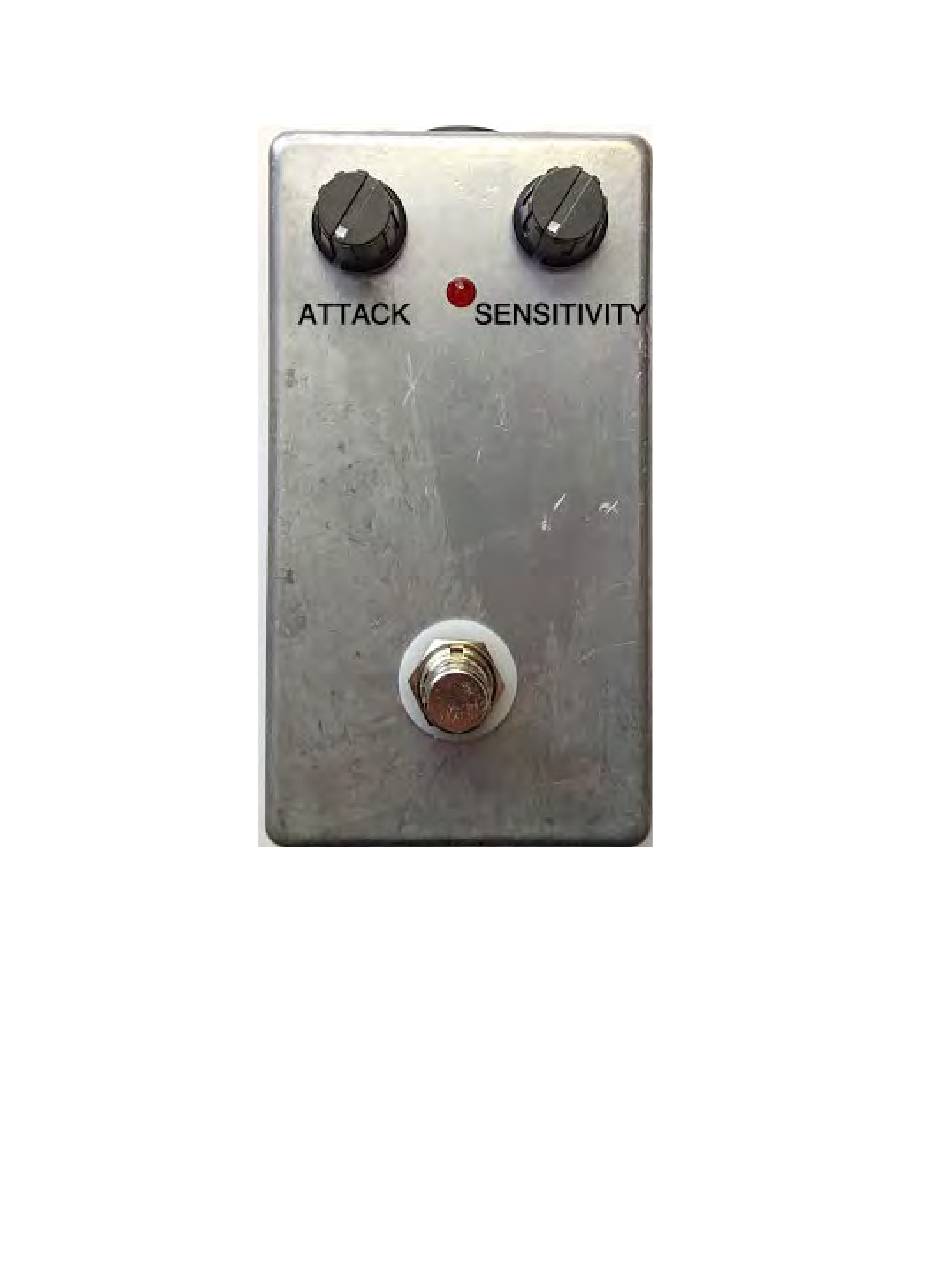

Operating Overview

ATTACK: Controls the speed of the effect. CCW is a slower swell effect;
CW is a faster swell effect.
SENSITIVITY: Controls the sensitivity of the effect, or how much signal
must be present to trigger the swell effect. CCW requires a stronger signal to
trigger the swell effect; CW lowers the amount of signal necessary to trigger
the swell effect.
Power supply: 9V battery or 2.1mm negative tip 9V wall adapter.
Current Draw: 4.6mA
Input Impedance: 220k ohms
Output Impedance: 100k ohms
