Main PCB Assembly

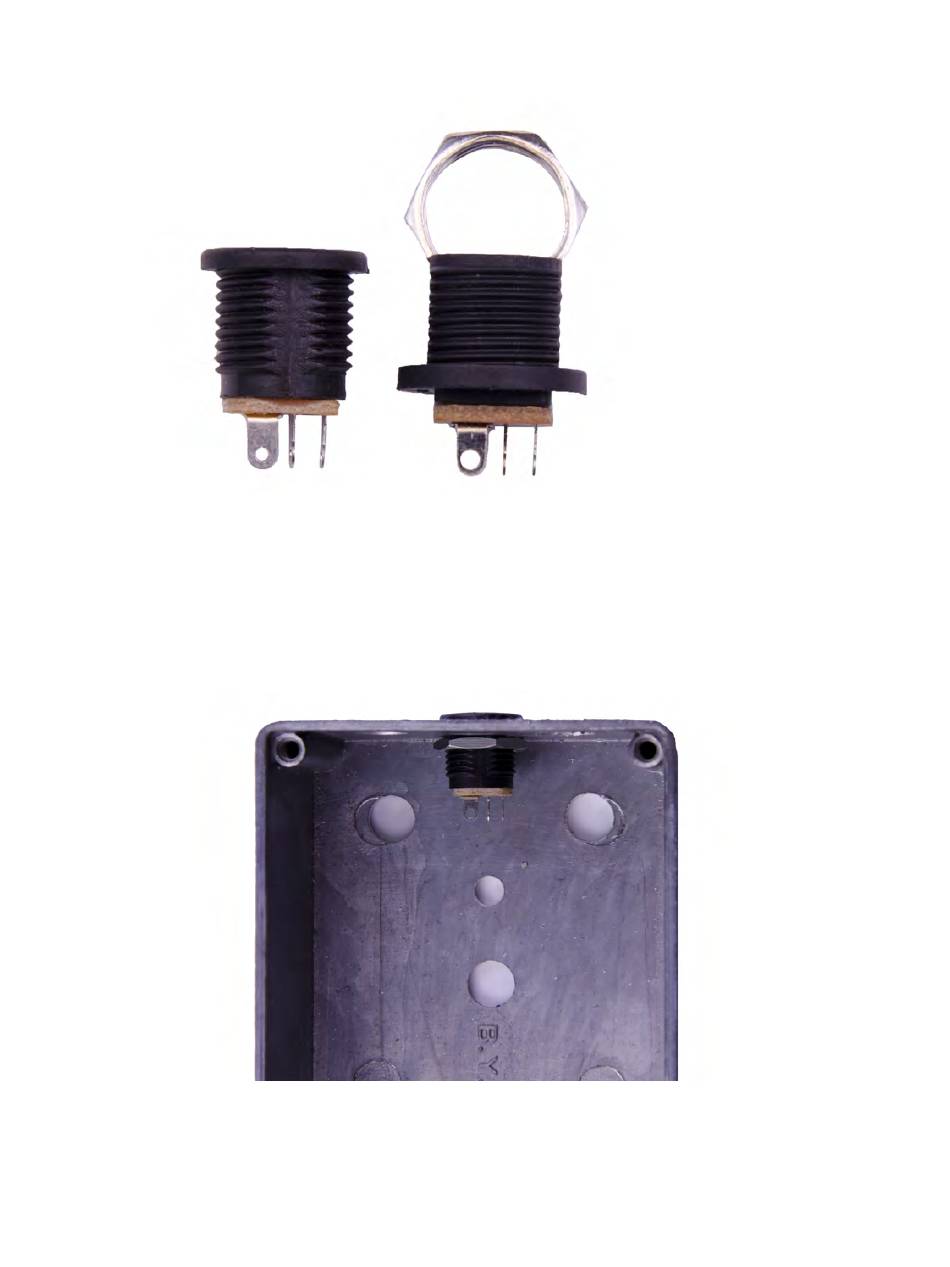

Step 1: Mount the AC adapter jack to the enclosure. Your kit may come
with either an external thread or internal thread. Don't get confused by this.
They still function exactly the same. You just thread the external nut on the
outside and the internal nut on the inside. The picture below is of an internal
nut jack.
14
