Build Your Own Clone
Li'l Pony
Kit Instructions
Warranty:
BYOC, Inc. guarantees that your kit will be complete and that all parts and components
will arrive as described, functioning and free of defect. Soldering, clipping, cutting,
stripping, or using any of the components in any way voids this guarantee. BYOC, Inc.
guarantees that the instructions for your kit will be free of any majors errors that would
cause you to permanently damage any components in your kit, but does not guarantee
that the instructions will be free of typos or minor errors. BYOC, Inc. does not warranty
the completed pedal as a whole functioning unit, nor do we warranty any of the
individual parts once they have been used. If you have a component that is used, but feel
it was defective prior to you using it, we reserve the right to determine whether or not the
component was faulty upon arrival. Please direct all warranty issues to:
sales@buildyourownclone.com This would include any missing parts issues.
Return:
BYOC, Inc. accepts returns and exchanges on all products for any reason, as long as they
are unused. We do not accept partial kit returns. Returns and exchanges are for the full
purchase price less the cost of shipping and/or any promotional pricing. Return shipping
is the customer's responsibility. This responsibility not only includes the cost of
shipping, but accountability of deliver as well. Please contact
sales@buildyourownclone.com to receive a return authorization before mailing.
Tech Support:
BYOC, Inc. makes no promises or guarantees that you will successfully complete your
kit in a satisfactory manor. Nor does BYOC, Inc. promise or guarantee that you will
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BYOC Li'l Pony
Summary of Contents for BYOC Li'l Pony
- Page 1 BYOC, Inc. does not warranty the completed pedal as a whole functioning unit, nor do we warranty any of the individual parts once they have been used.
- Page 2 That being said, we will do our best to help you as much as we can. Our philosophy at BYOC is that we will help you only as much as you are willing to help yourself. We have a wonderful and friendly DIY discussion forum with an entire section devoted to the technical support and modifications of BYOC kits.
-
Page 3: Table Of Contents
Li’l Pony Kit Instruction Index Parts Checklist----------------------------------------------page 4 -5 Populating the Circuit Board----------------------------page 7-14 Enclosure Assembly---------------------------------------page 15-19 Wiring--------------------------------------------------------page 20-23 Operation Overview---------------------------------------page 24 Schematic----------------------------------------------------page 25 PCB Map----------------------------------------------------page 26... -
Page 4: Parts Checklist
Parts Checklist for the Li’l Pony Kit Resistors: Metal Film Carbon Comp 1 - 560R/ 561 (Green/Blue/Black/Black/Brown) (Green/Blue/Brown/Gold) 2 - 1k / 102 (Brown/Black/Black/Brown/Brown) (Brown/Black/Red/Gold) 2 - 1k5/ 152 (Brown/Green/Black/Brown/Brown) (Brown/Green/Red/Gold) 1 - 1k8 / 182 (Brown/Gray/Black/Brown/Brown) (Brown/Gray/Red/Gold) 1 - 2k/ 202 (Red/Black//Black/Brown/Brown) (Red/Black/Red/Gold) 2 - 4k7/ 472... - Page 5 IC's: 2 - TL072 1 - Charge Pump –MAX1044 or 7660SCPA or LT1054 Potentiometers: SNAP OFF THE SMALL TABS ON THE TOP OF THE POTS OFF WITH A PAIR OF NEEDLE NOSE PLIERS OR SNIP THEM OFF WITH WIRE CUTTERS. 2 - B10k (TONE, VOL) 1 - B100k Dual Gang (DRIVE) Hardware:...

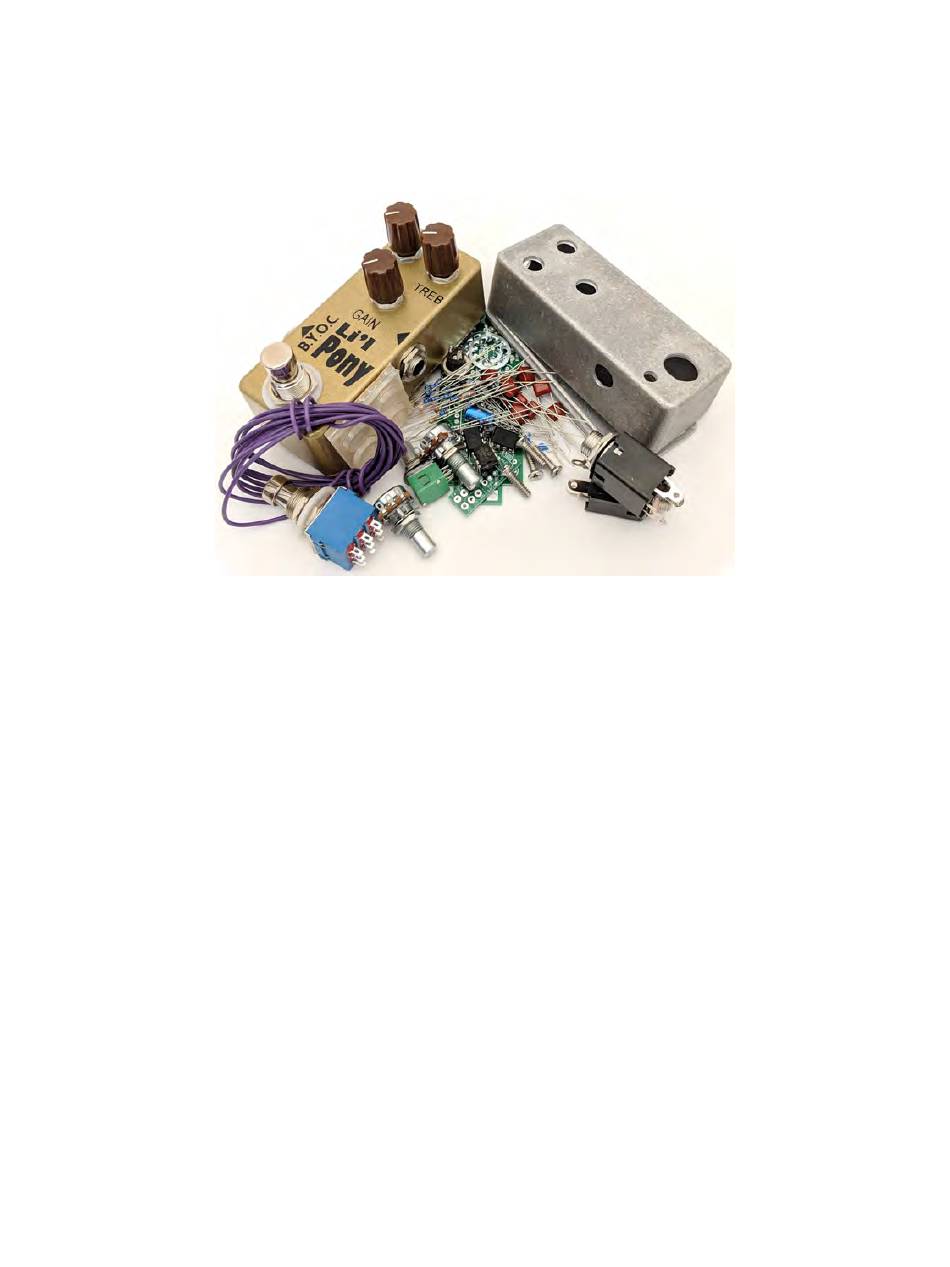

- Page 6 Your build should look similar to this when you’re finished.
-
Page 7: Populating The Circuit Board
Populating the Circuit Board Step 1: Add all the resistors. Resistors are not polarized and can be inserted in either direction. The resistor highlighted in yellow is 422k. - Page 8 Step 2: Add the diodes. Be sure to match the end of the diodes with the stripe to the layout on the PCB. The striped end should go in the square solder pad. If your diodes have one gray stripe and one white stripe, place the gray stripe in the square hole.
- Page 9 Step 3: Add the ICs. Orient them so that the notch or ‘U-shaped’ indentation on the IC matches the notch on the screenprint. If your ICs don’t have a notch, they will have a dot. This will indicate pin 1 and goes in the square hole.
- Page 10 Step 4: Add the film and ceramic disc capacitors. These are non-polarized and can go in either direction. The ceramic disc capacitors are highlighted in yellow. Depending on the height of your ceramic disc capacitors, you may need to lay them on their side.
- Page 11 Step 5: Add the electrolytic capacitors. These are polarized meaning they have a positive and negative side. The positive side will have a longer lead and goes in the square hole. The negative side will have a stripe running along the length of the capacitor body. Lay the 47uF electrolytic on its side along the screenprint.
- Page 12 This is what your main board will look like at this point.
- Page 13 Back of main board. Notice the short trim of the leads, and no shorts between any of the eyelets.
- Page 14 Step 6: Add the Capacitor, resistor, and dual gang potentiometer to the Li’l Pony Secondary Board and solder them. The capacitor and resistor are not polarized and can be installed in any orientation. The potentiometer will have to be installed in a specific way as outlined on the board itself. Make sure the shaft of the potentiometer is facing along the arrow on the board.
-
Page 15: Enclosure Assembly
Enclosure Hardware Assembly Step 1: Mount the DC adapter jack. Note: Install the AC jack with the tabs vertical as shown in the images. The orientation is important so that the tabs don’t contact the potentiometers. - Page 16 Step 2: Mount the potentiometers. You will mount the top pots with the solder lugs facing away from the DC Jack. Cut (6) 3 inch pieces of wire and solder them to the potentiometer board. Mount the lower pot and PCB assembly with the board facing the DC jack as shown below.
- Page 17 Step 3: Mount the Audio Jacks. You want to orient them so that the SLEEVE terminals (beveled corner of the jack) are facing away from each other. If looking at the inside of the enclosure, the INPUT jack will have its sleeve terminal facing towards the AC jack.
- Page 18 Step 4: Remove both nuts from the footswitch and mount the footswitch. Orient the footswitch so that the flat sides of the solder lugs are like the diagram below. NOTE: There are no actual number markings on the footswitch. There are two correct ways you can orient the footswitch.
- Page 19 FOOT SWITCH SOLDER LUG DESIGNATIONS...
-
Page 20: Wiring
Wiring Important note: The longer tab will be your (+) connection. - Page 21 FLIP PCB OVER!!! STEP 1: Wire the PCB as shown in the diagram below. Make all connections to the back side of the PCB and solder on the top (screen printed) side of the PCB. Make the wires as short as possible but allow enough length so that if you need to do any trouble shooting later, you will be able to do so without having to remove all the enclosure mounted components.
- Page 22 Step 2: Once the AC jack, potentiometer, and IN/OUT jacks are wired, insert the LED in its hole. Insert the long lead into the square hole!!! might want to slightly bend the leads away from each other to keep them in the holes for now.
- Page 23 Step 5: Once you have your PCB positioned and soldered, guide the LED into its enclosure hole using the leads that are sticking up through the PCB. Once the LED is in position, solder and trim the excess leads.
-
Page 24: Operation Overview
Operating Overview VOL: This controls the amount of volume. TREB: Boosts or cuts the treble GAIN: Controls the amount of gain. Power supply: 2.1mm negative tip. Current Draw: 5.5mA Input Impedance: 1M ohms Output Impedance: 10k ohms... -
Page 26: Pcb Map
PCB Map... - Page 27 Please visit http://byocelectronics.com/board for any technical support Copyright 2019 BYOC, Inc.
