BYOC Lazy Sprocket Instructions Manual page 13

Hide thumbs

Advertisement

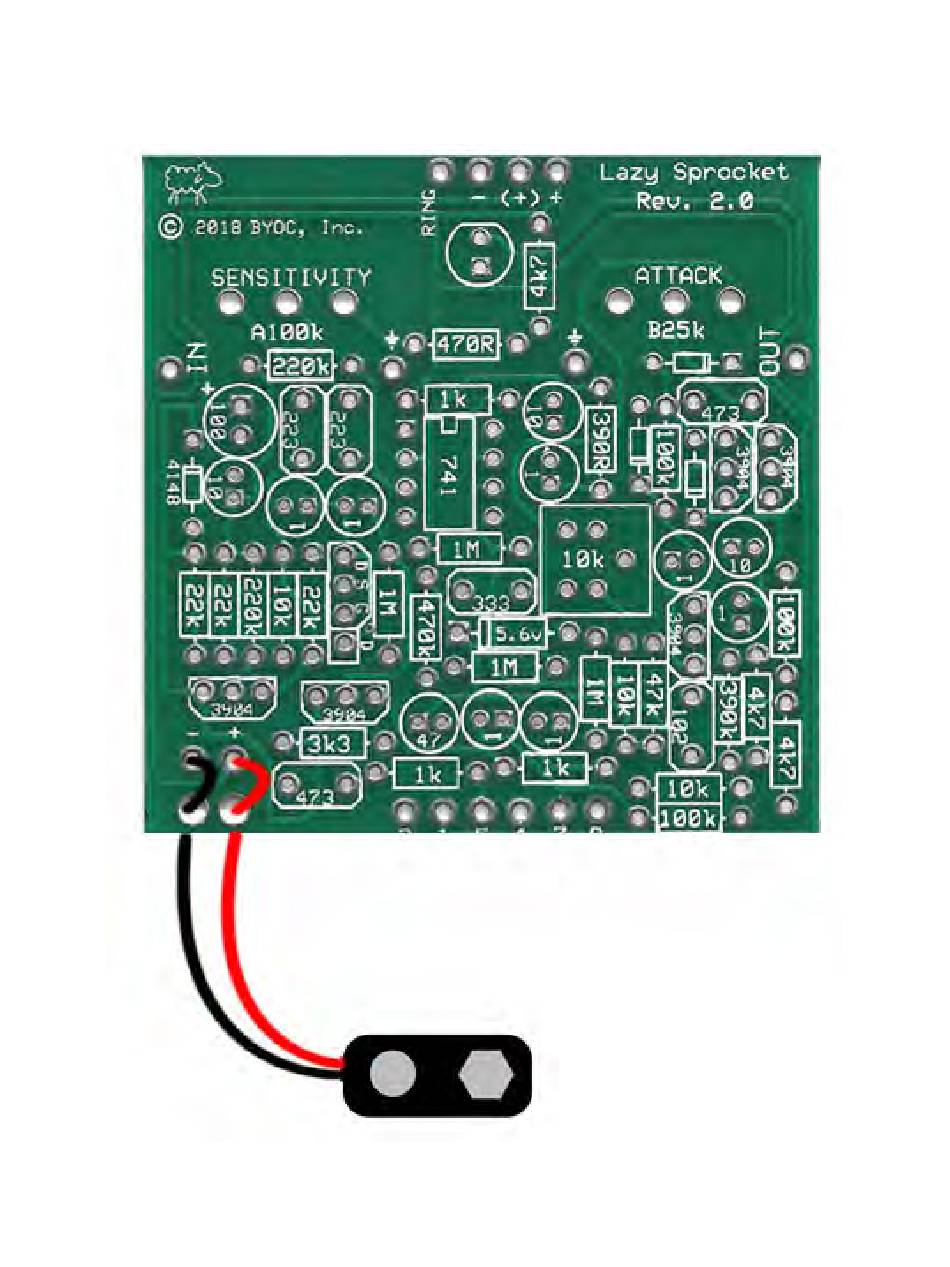

Step 8: Add the battery snap. Thread the wires of the battery snap through
the holes in the PCB before soldering as shown below.
13
