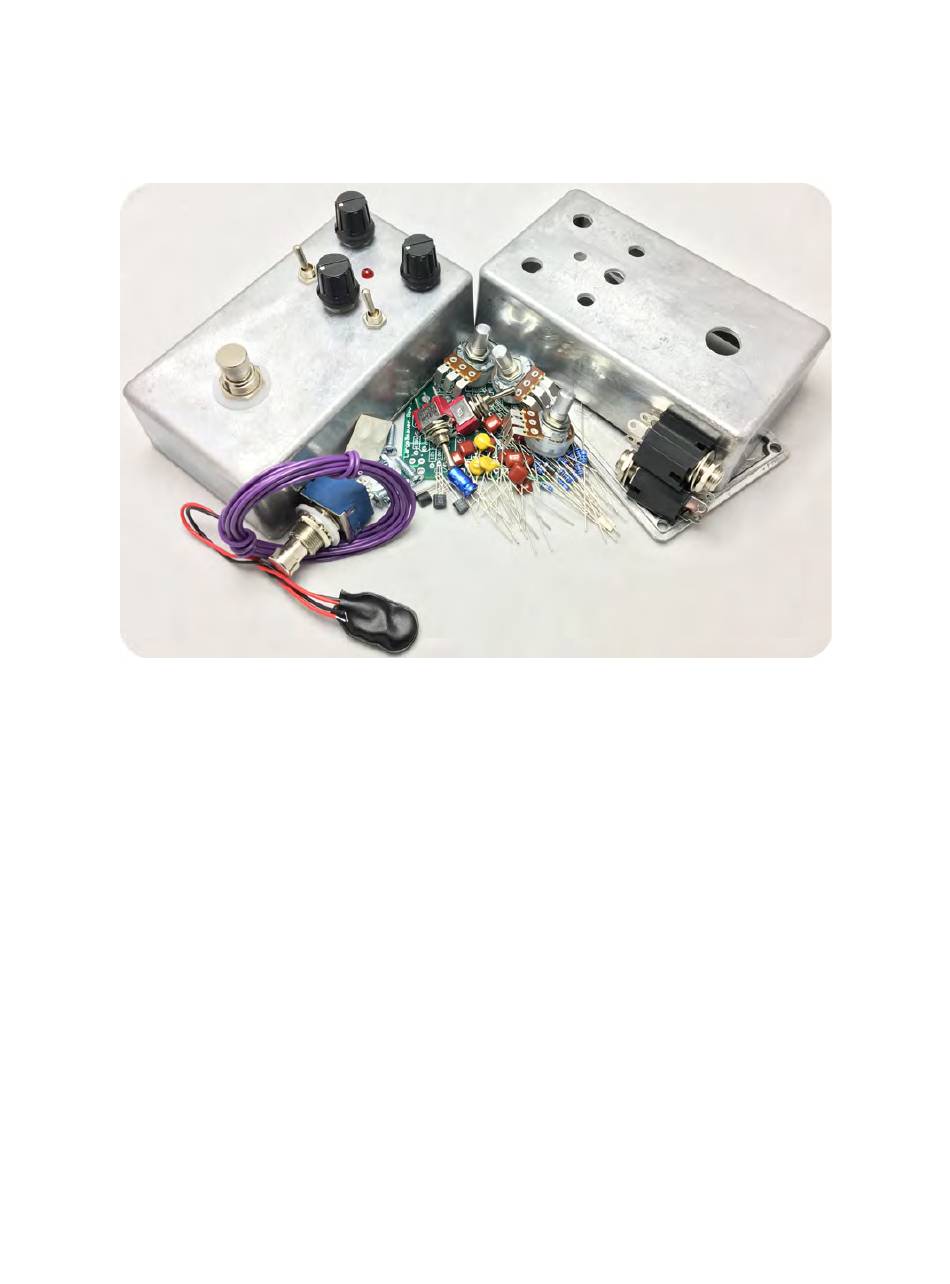

Build Your Own Clone
Large Beaver Triangle
Kit Instructions
Warranty:
BYOC, Inc. guarantees that your kit will be complete and that all parts and components
will arrive as described, functioning and free of defect. Soldering, clipping, cutting,
stripping, or using any of the components in any way voids this guarantee. BYOC, Inc.
guarantees that the instructions for your kit will be free of any majors errors that would
cause you to permanently damage any components in your kit, but does not guarantee
that the instructions will be free of typos or minor errors. BYOC, Inc. does not warranty
the completed pedal as a whole functioning unit, nor do we warranty any of the
individual parts once they have been used. If you have a component that is used, but feel
it was defective prior to you using it, we reserve the right to determine whether or not the
component was faulty upon arrival. Please direct all warranty issues to:
sales@buildyourownclone.com This would include any missing parts issues.
Return:
BYOC, Inc. accepts returns and exchanges on all products for any reason, as long as they
are unused. We do not accept partial kit returns. Returns and exchanges are for the full
purchase price less the cost of shipping and/or any promotional pricing. Return shipping
is the customer's responsibility. This responsibility not only includes the cost of
shipping, but accountability of deliver as well. Please contact
sales@buildyourownclone.com to receive a return authorization before mailing.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Large Beaver Triangle and is the answer not in the manual?

Questions and answers

Related Manuals for BYOC Large Beaver Triangle

Summary of Contents for BYOC Large Beaver Triangle

  • Page 1 BYOC, Inc. does not warranty the completed pedal as a whole functioning unit, nor do we warranty any of the individual parts once they have been used.
  • Page 2 That being said, we will do our best to help you as much as we can. Our philosophy at BYOC is that we will help you only as much as you are willing to help yourself. We have a wonderful and friendly DIY discussion forum with an entire section devoted to the technical support and modifications of BYOC kits.

  • Page 3: Table Of Contents

    Large Beaver Triangle Kit Instruction Index Parts Checklist………………………....…..page 6 Populating the Circuit Board……....…...…..page 8 Main PCB Assembly..........page 17 Wiring………………………………......page 19 Installing the IC/Finishing up…………………..page 25 Operation Overview...........page 26 Schematic..............page 27...

  • Page 4: Parts Checklist

    Parts Checklist for the Large Beaver Triangle Kit Resistors 3 – 150 Ohm (Brown/Green/Black/Black/Brown) or (Brown/Green/Brown/Gold) 1 - 820 Ohm (Gray/Red/Black/Black/Brown) or (Gray/Red/Brown/Gold) 1 - 2k7 (Red/Purple/Black/Brown/Brown) or (Red/Purple/Red/Gold) 1 - 4k7 (Yellow/Purple/Black/Brown/Brown) or (Yellow/Purple/Red/Gold) 2 - 8k2 (Gray/Red/Black/Brown/Brown) or (Gray/Red/Red/Gold)
  • Page 5 2 - A100k (SUSTAIN, VOLUME) 1 - B100K (TONE) Hardware: 1 - predrilled enclosure w/ 4 screws 1 - Large Beaver Triangle PCB 1 - 3pdt footswitch 1 - SPDT On-On Toggle Switch 1 - SPDT On-Off-On Toggle Switch 2 - Enclosed Audio Jacks...

  • Page 6: Populating The Circuit Board

    Populating the Circuit Board Step 1: Add all the resistors. Resistors are not polarized and can be inserted in either direction.
  • Page 7 Step 2: Add the diodes. Be sure to match the end of the diodes with the stripe to the layout on the PCB. The striped end should go in the square solder pad.
  • Page 8 Step 2: Add the transistors. Orient them so that the tab on the transistors matches up with the tab on the PCB layout.
  • Page 9 Step 3: Add the film and ceramic disc capacitors. These are not polarized and can go in either orientation. The capacitors highlighted in yellow are the ceramic disc capacitors.
  • Page 10 Step 4: Add the aluminum electrolytic capacitor. These ARE polarized, meaning there is a positive and negative end. The positive side will have a longer lead and goes in the square solder pad. The negative side will have a shorter lead and a stripe running along the body of the cap, and goes in the round solder pad...
  • Page 11 Step 5: Add the battery snap. Thread the leads into the strain relief holes first through the bottom side of the PCB. Then insert the leads into their respective solder pad hole on the top side of the PCB. The red lead goes in the + hole and the black lead goes in the –...
  • Page 12 Step 6: Add wires to the IN, OUT, LED, POS, and the Ground eyelet located in the top of the board. . Start by cutting 4 3.5” pieces of wire. Strip 1/4” off each end and tin the ends. Tinning means to apply some solder to the stripped ends of the wires.

  • Page 13: Main Pcb Assembly

    Main PCB Assembly Step 1: Mount the DC adapter jack to the enclosure. Your kit may come with either an external thread or internal thread. Don’t get confused by this. They still function exactly the same. You just thread the external nut on the outside and the internal nut on the inside.
  • Page 14 Step 2: Flip the PCB over so that the bottom or solder side is up. Insert the three potentiometers, the two toggle switches, and the LED into the bottom side of the PCB. DO NOT SOLDER ANYTHING YET!!! The LED will have one lead that is longer than the other.
  • Page 15 Step 3: Hold the PCB in one hand so that the component side of the PCB is in the palm of your hand and the bottom side with the pots and LED are facing up. Now use your other hand to guide the predrilled enclosure onto the PCB assembly so that the pots and LED all go into their respective holes.
  • Page 16 Step 2: Install the 1/4” enclosed jacks to the enclosure.
  • Page 17 Step 3: Install the footswitch. Orient the footswitch so that the flat sides of the solder lugs are like the diagram below. NOTE: There are no actual number markings on the footswitch. There are two correct ways you can orient the footswitch. They are both 180 degrees of each other.
  • Page 18 Step 3a: Make a jumper between lugs 3 & 6 from clippings from the resistors. Simply use your needle nose pliers to make a U shape & insert into lugs 3 & 6, then solder. Step 3b: Connect a wire to LUG 4 that also jumpers to LUG9. Strip about 1”...

  • Page 19: Wiring

    Wiring Step 1: Connect the TIP (negative) terminal of the DC adapter jack to the eyelet on the PCB labeled “-“. Connect the SLEEVE of the DC adapter jack to the eyelet on the PCB labeled “+” farthest to the right. Connect the battery disconnect terminal of the DC adapter jack to the second eyelet on the PCB labeled “+”...
  • Page 20 Step 2: Wire the PCB to the foot switch and jacks as shown.

  • Page 21: Operation Overview

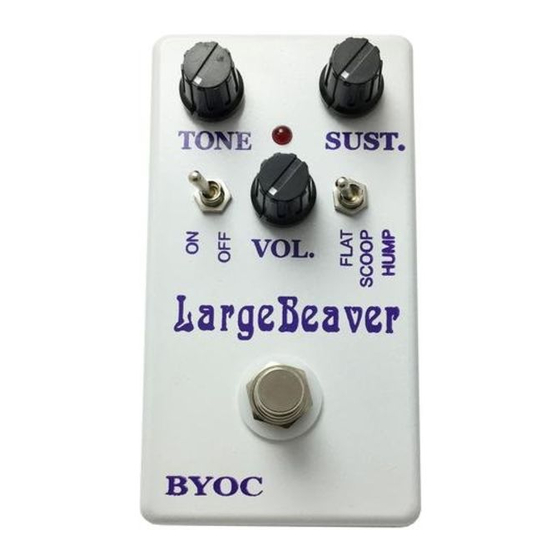

    Operating Overview Volume: Controls the overall output level. Tone: Controls the tone. Sustain: Controls the amount of distortion. Tone Toggle (right toggle switch): Selects between a mid flat, mid scoop, or mid hump EQ. Tone Bypass Toggle (left toggle switch): This either activates the tone bypass (on) which deactivates the tone knob and Tone Toggle switch, or deactivates it (off) and allows you to select your mids, and use the tone knob.
  • Page 22 For hi-res schematic visit http://www.byocelctronics.com/largebeavertriangleschematic.pdf...
  • Page 23 Please visit http://byocelectronics.com/board for any technical support Copyright 2018 BYOC, Inc.
