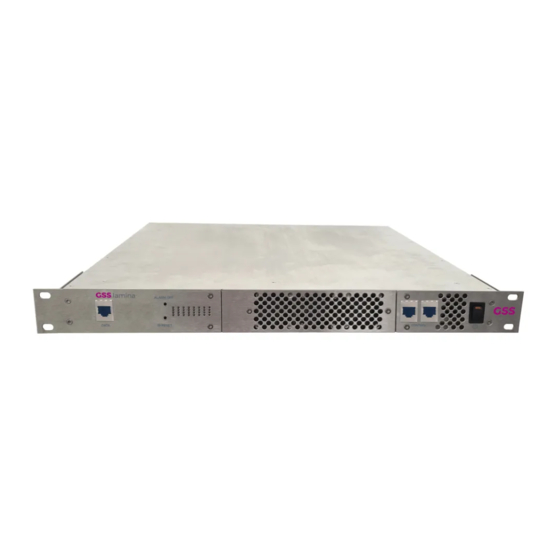

STIM 1916 CT
Default access data:
192.168.0.120
User: admin
Password: geheim

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STIM 1916 CT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GSS STIM 1916 CT

Summary of Contents for GSS STIM 1916 CT

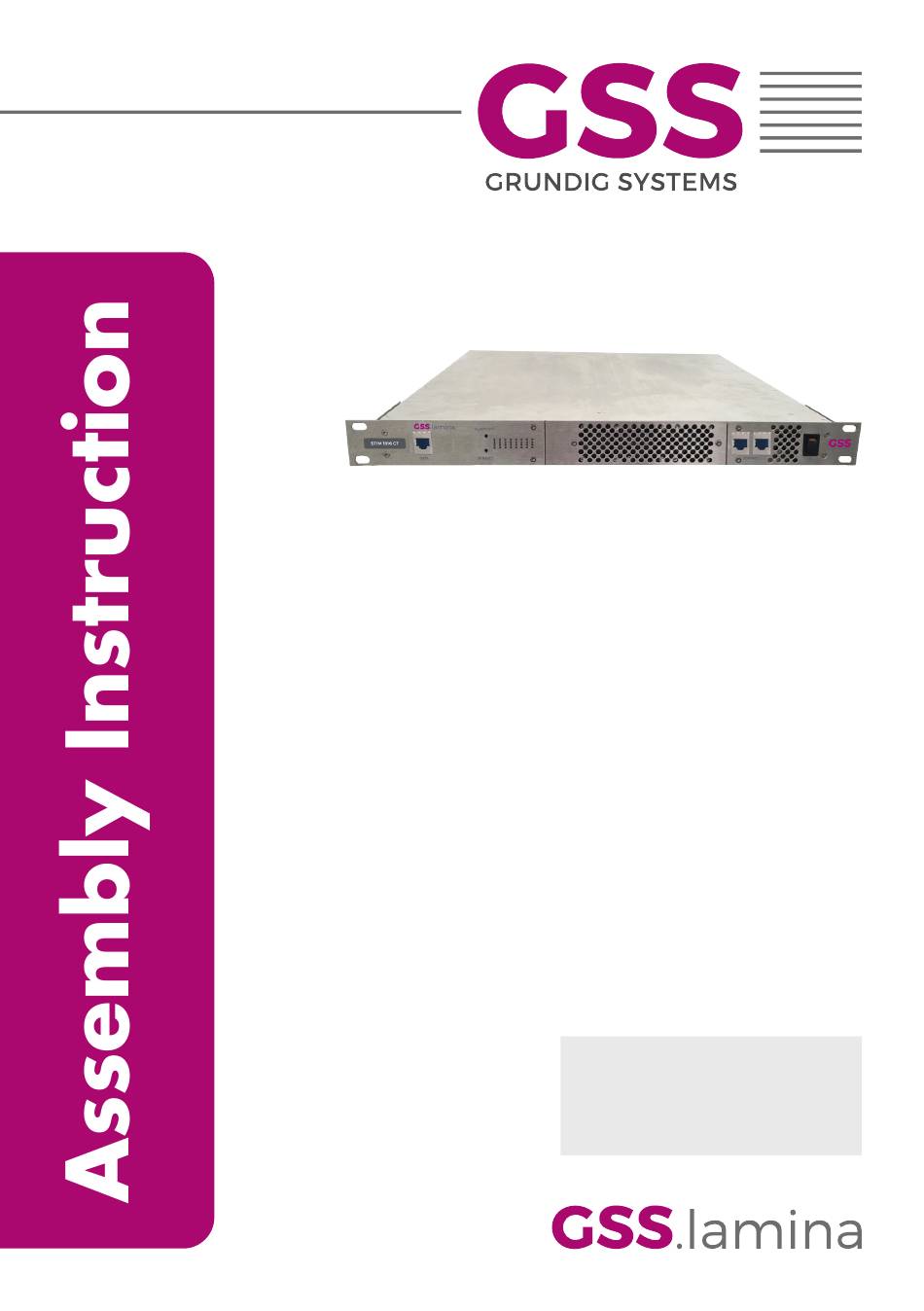

  • Page 1 STIM 1916 CT Default access data: 192.168.0.120 User: admin Password: geheim...

  • Page 2: Table Of Contents

    - Firmware update: ................41 - Backup: ..................42 - Manager: ..................42 - Reset to factory defaults: ..............42 - System restart: .................43 - Ping (Network Diagnostic Tool): ............43 User ....................43 5 Channel and frequency tables ..............44 - 2 - STIM 1916 CT...

  • Page 3: Safety Regulations And Notes

    • Do not cover the ventilation openings! • Do not install the head end in cabinets or recesses which are not ventilated. • Do not place any vessels containing liquids on the head-end station. - 3 - STIM 1916 CT...
  • Page 4 January 27, 2003 which addresses old electronic and electrical devices, such devices must be disposed of at a designated collection facility. At the end of its service life, please take your device to one of these public collection facilities for proper disposal. - 4 - STIM 1916 CT...

  • Page 5: General Information

    2.1 P aC k i n g C o n t e n t s 1 STIM 1916 CT 1 LAN cable 1 Brief assembly instructions 2 Mains cable 2.2 m...

  • Page 6: General

    Cooling fans: .....3 (can be replaced separately during operation) Ambient temperature: ............0…+50 °C Dimensions (W x H x D): ....483 mm x 44.5 mm (1HU) x 490 mm Weight: ..................6 kg - 6 - STIM 1916 CT...

  • Page 7: Description

    128 x SPTS –25dB TEST Modulator "16" The configuration of the station is to be done via an HTML user interface via a PC and a standard HTML browser connected to the configuration input (Con- trol). - 7 - STIM 1916 CT...
  • Page 8 If the control input has connection to the Internet, the device can send a warn- ing e-mail when a signal, power supply or one of the fans fails. - 8 - STIM 1916 CT...

  • Page 9: Assembly

    Power off + no fault –> LED blinks green Power on + no fault –> LED lights green Power on + fault –> LED blinks red **** Must not be connected to an external switch at the same time (looping). - 9 - STIM 1916 CT...

  • Page 10: Installing The Device

    Equalise the potential (PE) in accordance with IEC/EN/DIN EN 60728. • Connect the PE connection terminal to a PE rail (supplied by customer) using the PE wire (Cu 4 mm - 9 mm - 10 - STIM 1916 CT...

  • Page 11: Connecting The Device

    —> The two Control connectors must not be connected to an external switch at the same time (looping). The second LAN socket is used to connect another head-end station. • If the configuration is finished connect the RF output to the cable network. - 11 - STIM 1916 CT...

  • Page 12: Changing A Power Module

    • Insert the new power module. —> Make sure that it is locked. • Connect the new power module to the mains cable and check whether the status LED lights green. - 12 - STIM 1916 CT...

  • Page 13: Changing A Case Fan

    – the red wire to the middle terminal (3 x +12 V terminal – the yellow wire on the upper terminal (3 x monitoring terminal • Mount the fan panel (2 screws —> Make sure that no wires will be clamped between fan and housing. - 13 - STIM 1916 CT...

  • Page 14: Configuration / Updates

    —> Example for IP address setting with Windows 7 operating system: • For the initial setup open the properties for TCP/IPv4 of the PC: > Control Panel > Network and Sharing Center > LAN connection > Properties - 14 - STIM 1916 CT...
  • Page 15 > Internet Protocol Version 4 (TCP/IPv4) > Properties • Activate point "Use the following IP address". • Enter e.g. 192.168.0.2 for the IP address. • Enter for the Subnet mask 255.255.255.0. • Confirm the setting with "OK". - 15 - STIM 1916 CT...
  • Page 16 First, an "empty" table is displayed (as with all menus). While the data is read from the device ... … is displayed. —> Changes in the menus are only transmitted to the head-end station when you click the button before leaving a menu! - 16 - STIM 1916 CT...

  • Page 17: Configuration

    Select menu language (English/German) Herein the current system temperature as well as date and time of the last login is displayed. —> If a system temperature of 85°C will be reached, the system will be shut down. - 17 - STIM 1916 CT...
  • Page 18 Via button Download a configuration protocol can be stored as text file resp. opened using a text editor. —> From this protocol file e.g. a list of the programmed stations can be prepared using e.g. a text editor. - 18 - STIM 1916 CT...

  • Page 19: Perform Changes

    For entering/indication of the different IDs the number format can be set to hexadecimal or decimal in menu System > Firmware. - 19 - STIM 1916 CT...

  • Page 20: Configuration Menus

    —> If delete a data stream name, the name of the first sta- tion this data stream is entered. If the data stream will changed, the data stream name will NOT be changed au- tomatically! - 20 - STIM 1916 CT...
  • Page 21 Sum of the input data rates of all activated input lines. Before leaving the menu, changes must be transferred to the head-end station! • Therefore click on button —> After that is displayed for a short time in the upper right corner. - 21 - STIM 1916 CT...

  • Page 22: Output

    Line indicates an output data overflow. In this case change the output settings or remove stations from the data stream in menu Multiplex. In column Modulator, switch on or off the modulators of the individual lines. - 22 - STIM 1916 CT...
  • Page 23 For COFDM: QPSK, 16 QAM, 64 QAM —> The background colour in column Line indicates an output data overflow. In this case change the output settings or remove stations from the data stream in menu Multiplex. - 23 - STIM 1916 CT...
  • Page 24 To transmit the output signal in the channel range of S21 to C69 a band- width of 8 MHz can be used. In the channel range of C5 to C12 a bandwidth of ≤ 7 MHz must be set. - 24 - STIM 1916 CT...
  • Page 25 Therefore click on button Before leaving the menu, changes must be transferred to the head-end station! • Therefore click on button —> After that is displayed for a short time in the upper right corner. - 25 - STIM 1916 CT...

  • Page 26: Multiplex

    —> This allows you to estimate whether another service can be added to a output line. Make sure you have sufficient reserves for dynamic data rates! The original SIDs are displayed in the SID column. You can change the SIDs in the New SID column. - 26 - STIM 1916 CT...
  • Page 27 Before leaving the menu, changes must be transferred to the head-end station! • Therefore click on button —> After that is displayed for a short time in the upper right corner. - 27 - STIM 1916 CT...

  • Page 28: Nit

    Herein you can enter a NIT version. —> The maximum possible value is 1F/31. Herein you can enter a network name. Button Load resets the network ID, the version and the network name to default. - 28 - STIM 1916 CT...
  • Page 29 , all related LCNs will also be deleted. Indication of Code rate, Guard interval, Bandwidth and Mode of COFDM transponders Create the NIT —> Manually added ( ) or imported ( ) transponders will not be deleted. - 29 - STIM 1916 CT...
  • Page 30 (*.bin). —> You can also add an "*.oni" file, which you had generated with a PSW 1000 (from version 61 on) or a PSW 160 (from version 17 on). - 30 - STIM 1916 CT...
  • Page 31 • Click on button Before leaving the menu, changes must be transferred to the head-end station! • Therefore click on button —> After that is displayed for a short time in the upper right corner. - 31 - STIM 1916 CT...

  • Page 32: Lcn - Logical Channel Numbering

    Herein you can switch on or off the "Private Data Specifier". —> If you use HD-LCN, this must be switched on. "Private Data Specifier" value —> For "Private Data Specifier" IEC 62216-1 recommends the value 0x00000028. - 32 - STIM 1916 CT...
  • Page 33 PSW 1000 (from version 61 on) or a PSW 160 (from version 17 on). Before leaving the menu, changes must be transferred to the head-end station! • Therefore click on button —> After that is displayed for a short time in the upper right corner. - 33 - STIM 1916 CT...

  • Page 34: System Menus

    Via this button you can refresh the indication. —> Please also note the items in the Notification menu (page 35) —> The logbook is included in the protocol file (page 17)! - 34 - STIM 1916 CT...

  • Page 35: Notification

    Herein enter the password for the outgoing mail server of your e-mail account. Herein enter the outgoing mail server of your e-mail account. Herein enter the port of the outgoing mail server of your e-mail account. - 35 - STIM 1916 CT...
  • Page 36 —> The default port for Syslog server is 514. Before leaving the menu, changes must be transferred to the head-end station! • Therefore click on button —> After that is displayed for a short time in the upper right corner. - 36 - STIM 1916 CT...

  • Page 37: Network

    IP ad- dress. To do this, enter the host name followed by ".local" in the browser (e.g. gss.local). If you operate several head-end stations in the network, you must enter different names here. —> Write down the IP addresses and the Host name! Further access to the device is only possible via the IP address of the configuration interface or the host name.

  • Page 38: Openvpn

    —> The Private Link is also included in the protocol file (page 17)! —> Before leaving the menu, changes must be transferred to the head- end station! Therefore click on button —> After that is displayed for a short time in the upper right corner. - 38 - STIM 1916 CT...

  • Page 39: Security

    —> If you have forgotten your password, you can reset the network set- tings and the password by the reset button ( page 9)! - 39 - STIM 1916 CT...

  • Page 40: Output Modulation Of Head-End Station

    Herein select the kind of output modulation for the whole head-end sta- tion – QAM or COFDM… —> By default QAM modulation is set for the output. … and confirm a change in the output modulation by button —> The station restarts! - 40 - STIM 1916 CT...

  • Page 41: Firmware

    —> During the update this warning is displayed. After a few minutes the LEDs be- come off, shortly after that the LED for line 1 flashes (update is being installed). - 41 - STIM 1916 CT...

  • Page 42: Backup

    —> All settings but NOT Password and IP address! —> If you have forgotten your password or IP address, you can reset the network settings and the password by the reset button (hold depressed for more than 5 seconds; page 9)! - 42 - STIM 1916 CT...

  • Page 43: System Restart

    —> Before leaving the menu, changes must be transferred to the head- end station! Therefore click on button —> After that is displayed for a short time in the upper right corner. - 43 - STIM 1916 CT...

  • Page 44: Channel And Frequency Tables

    C 48 690.00 C 58 770.00 C 68 850.00 C 29 538.00 C 39 618.00 C 49 698.00 C 59 778.00 C 69 858.00 C 30 546.00 C 40 626.00 C 50 706.00 C 60 786.00 - 44 - STIM 1916 CT...
  • Page 45 Declaration of CE conformity GSS Grundig Systems GmbH • Beuthener Straße 43 • D-90471 Nuremberg Phone: +49 (0) 911 / 633 240 0 • Fax: +49 (0) 911 / 633 240 98 www.gss.de/en • info@gss.de CLASS CLASS Service: Phone: +49 (0) 911/ 633 240 90 • service@gss.de Alterations reserved.
