GSS HDMA 784 C ASI Assembly Instructions Manual

Head-end station stc 160 head-end digital modulator 4 x 16/32 apsk - 4 x qam
Hide thumbs
Table of Contents

Advertisement

Quick Links

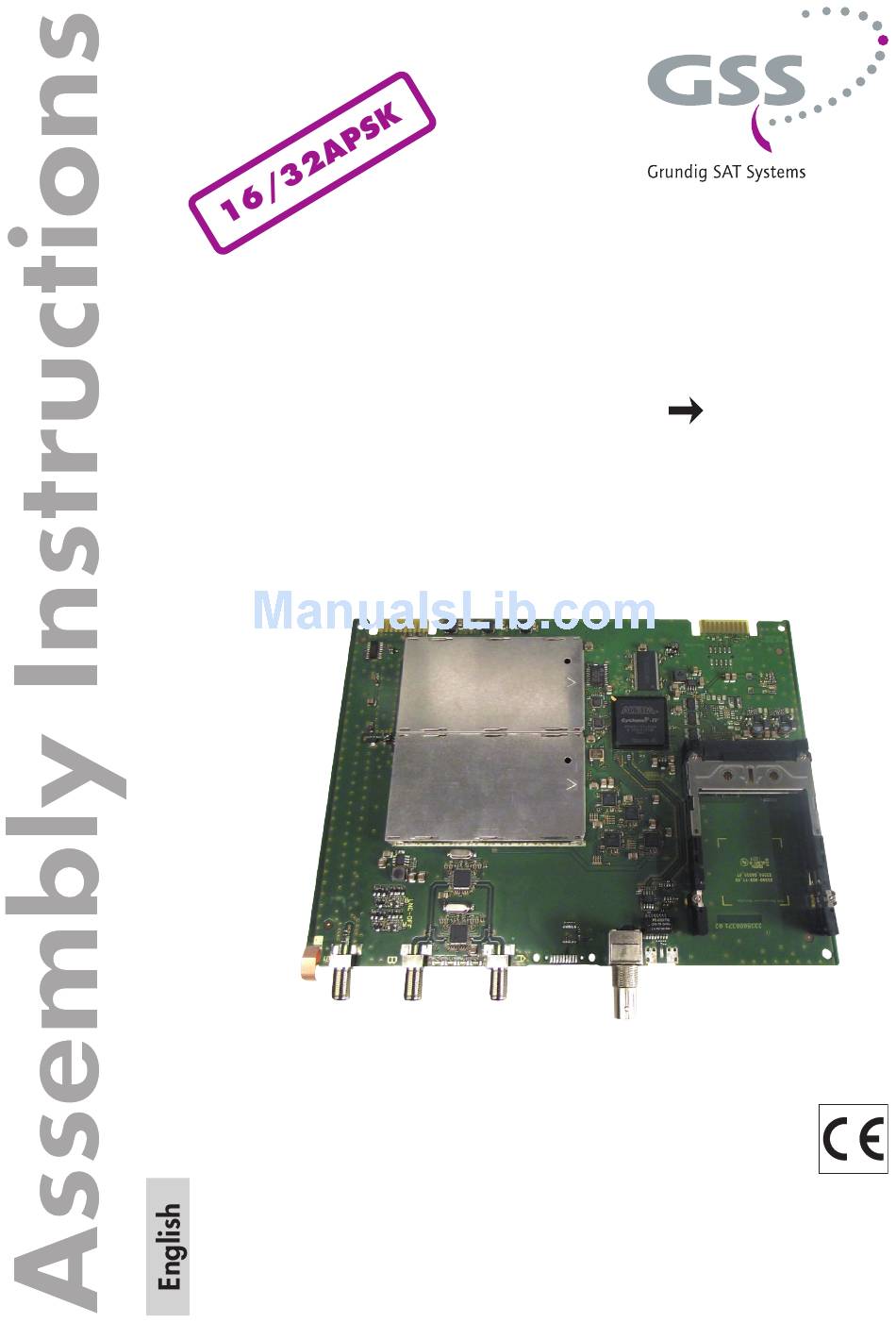

Head-End Station STC 160
Head-End Digital Modulator
4 x 16/32 APSK
Notes on the Assembly Instructions.
As well as this supplementary Assembly
Instructions, the Assembly Instructions for the
STC 160 apply.
GSS
Grundig SAT Systems GmbH
Beuthener Strasse 43
D-90471 Nuremberg
4 x QAM
HDMA 784 C ASI
Phone:
+49 (0) 911 / 703 8877
Fax:
+49 (0) 911 / 703 9210
Email:
info@gss.de
Internet:
www.gss.de/en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDMA 784 C ASI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GSS HDMA 784 C ASI

Summary of Contents for GSS HDMA 784 C ASI

  • Page 1 Head-End Station STC 160 Head-End Digital Modulator 4 x 16/32 APSK 4 x QAM HDMA 784 C ASI Notes on the Assembly Instructions. As well as this supplementary Assembly Instructions, the Assembly Instructions for the STC 160 apply. Phone: +49 (0) 911 / 703 8877...

  • Page 2: Table Of Contents

    Input symbol rate, DVB mode ............24 Input frequency ................25 Operation with a CA module ............26 Station filter ................26 PID monitoring ................28 CA module ................. 29 Economize descrambling capacity ..........30 - 2 - HDMA 784 C ASI...

  • Page 3: Safety Regulations

    At the end of its service life, please take your device to one of these public collection facilities for proper disposal. - 3 - HDMA 784 C ASI...

  • Page 4: General Information

    2.1 s C o p e d e l i v e ry 1 Head-end Digital Modulator QAM "HDMA 784 C ASI" 1 HF connection cable 1 Brief Assembly Instructions 2.2 m...

  • Page 5: Description

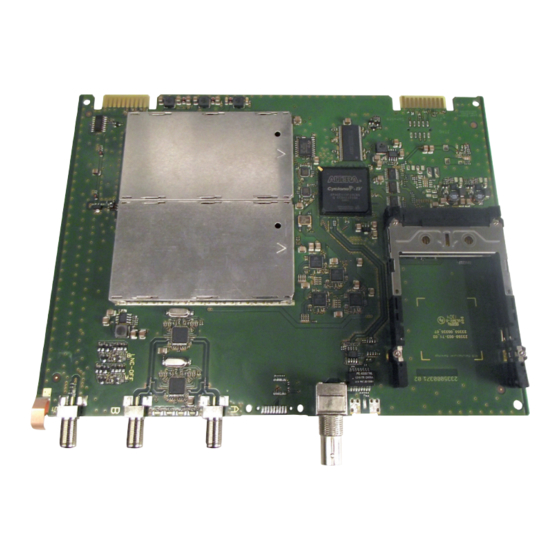

    2.4 d e s C r i p t i o n The Head-end Digital Transmodulator QAM "HDMA 784 C ASI", in the fol- lowing called QAM module converts two DVB-S/DVB-S2 (also 16/32 APSK) modulated data streams into four DVB-C (QAM) modulated data streams. The QAM module has two SAT-IF inputs, one ASI input and one HF output.
  • Page 6 QAM module, the software "BE-Flash" and the current assembly instructions on the website "www.gss.de/en". The QAM module is designed exclusively for use in the STC 160 head-end station. - 6 - HDMA 784 C ASI...

  • Page 7: How The Tps Module Works

    SR (A) = FEC x x SR (E) 32-QAM: SR (A) = FEC x x SR (E) 16-QAM: SR (A) = FEC x x SR (E) 4-QAM: SR (A) = FEC x x SR (E) - 7 - HDMA 784 C ASI...

  • Page 8: Transponder With A Very Low Symbol Rate (Scpc Station)

    – Take measures to protect against ESD! • Open the housing of the head-end station in accordance with the assembly instructions for the STC 160. - 8 - HDMA 784 C ASI...

  • Page 9: Retrofitting A Ca Module

    Fig. 1 —> If the QAM module is inserted in the head-end station, the left com- mon interface is assigned to tuner A, the right one to tuner C. - 9 - HDMA 784 C ASI...

  • Page 10: Installing The Qam Module

    (fig. 3). • After installing the QAM module close the locking device in the direction of the arrow (fig. 3). Ensure to get a well contact to spring Fig. 3 - 10 - HDMA 784 C ASI...

  • Page 11: Connecting The Qam Module

    SAT-IF input distributor. • If required connect the ASI input to a corresponding ASI signal source. • After programming, connect the modulator output to one of the input sockets of the output collector. - 11 - HDMA 784 C ASI...

  • Page 12: The Control Panel At A Glance

    Input frequency Station filter CA module – Options: Transport stream and ORGNET-ID BAT, STD-other Deleting a PID Renaming a PID – Data rate – Network Information Table (NIT) – Factory reset – Save data - 12 - HDMA 784 C ASI...

  • Page 13: Programming

    In order to prevent interference within the head-end station and the cable sys- tem, the output level of the cassette must be decreased by 10 dB compared to analogue cassettes at 64 QAM, and by 4 dB compared to analogue cassettes at 256 QAM. - 13 - HDMA 784 C ASI...

  • Page 14: Programming Procedure

    10600 MHz In A In A / In B Tuner A / B / C / D Bx 4A SYMBOL DVB-S / QPSK… /8PSK…/ 27500 DVB–S 16APSK…/32APSK… / DTV… Bx 4A FREQ - 14 - HDMA 784 C ASI 11835 +0.7...
  • Page 15 !!! Overflow A / B / C / D Bx 4 => Make on / off Make Werkeinstellung Bx 4 FACTORY Bx 4 FACTORY aufrufen invoke factory defaults Defaults => STORE => S - 15 - HDMA 784 C ASI...

  • Page 16: Programming The Qam Module

    —> The display shows "SETUP BE160" and the software version of the head-end station (e.g. V 10). —> The output level of the output collector can be adjusted in the "SETUP" menu (see STC 160 assembly instructions). BE160 SETUP Ein / On V 10 - 16 - HDMA 784 C ASI...

  • Page 17: Selecting The Module / Channel Strip

    "C – –" is displayed a frequency which does not correspond to the DVB-C channel-/frequency grid was set. • Using buttons select the desired modulator. • Press the button. —> The "Modulator on/off, Level" – "LEVEL" submenu is activated. - 17 - HDMA 784 C ASI...

  • Page 18: Modulator On/Off, Level

    306 MHz going back in steps of 8 MHz (see frequency table on page 39). Please note thereby that many receivers cannot receive the channel ranges S21 … S41 (306 … 466 MHz). - 18 - HDMA 784 C ASI...

  • Page 19: Bx 4A Freq

    • Use buttons to adjust the desired frequency. • Press the button. —> The "Output symbol rate, QAM modulation" – "QAM-MODE" sub- menu is activated. - 19 - HDMA 784 C ASI...

  • Page 20: Output Symbol Rate, Qam Modulation

    • Use buttons to select the cursor position for "QAM…" setting. Bx 4A QAM–MODE 6900 QAM 256 • Use buttons to set the QAM modulation ("4" … "256"). - 20 - HDMA 784 C ASI...

  • Page 21: Substitute Signal In The Case Of An Incorrect Input Signal

    • Press the button. —> Returning to "Output settings" main menu (page 17). —> If necessary set further modulators. • Press the button. —> The "ASI input" – "ASI" main menu is activated. - 21 - HDMA 784 C ASI...

  • Page 22: Asi Input

    —> On the left side you select the number of "ASI lines", on the right side you see, which lines are used. • Press the button. —> The "Input settings" – "INPUT" main menu is activated. - 22 - HDMA 784 C ASI...

  • Page 23: Input Settings

    In this menu select the SAT input and set the oscillator frequency of the LNB used. Bx 4A 10600 MHz In A • Use buttons to place the cursor under the digit to be set for the oscil- lator frequency displayed. - 23 - HDMA 784 C ASI...

  • Page 24: Input Symbol Rate, Dvb Mode

    DVB-S2 mode, we suggest to preset the DVB mode to shorten the time for searching stations. • Use the button to place the cursor under "DVB-S" and set the required DVB-S2 mode with the buttons - 24 - HDMA 784 C ASI...

  • Page 25: Input Frequency

    • Repeat the procedure by the quantity of the digits to be set. • Set the frequency offset shown in the display (e.g. "– 1.8") to less than 1 MHz by varying the input frequency using the buttons. - 25 - HDMA 784 C ASI...

  • Page 26: Operation With A Ca Module

    In this menu stations (services) of a transponder can be switched off. Herein you select which scrambled station should be descrambled using an adequate CA module (only via tuner "A" and "C"). Bx 4A TV + 01/06 Das Erste - 26 - HDMA 784 C ASI...

  • Page 27: Bx 4A

    CA module (only possible via tuner "A" and "C"). • Press button twice to descramble a station (indication "X"). Bx 4A TV * X 01/06 - 27 - HDMA 784 C ASI...

  • Page 28: Pid Monitoring

    CA module (only if Tuner "A" or "C" is selected). —> Access to this menu is only possible with installed CA module and inserted smart card. - 28 - HDMA 784 C ASI...
  • Page 29 • All settings are saved by pressing the button. —> You will be returned to the "PID monitoring" – "CA-MENU" menu. • Press the button. —> The "Economize descrambling capacity" – "SKIP CA" is activated. - 29 - HDMA 784 C ASI...

  • Page 30: Economize Descrambling Capacity

    • Press the button. —> Returning to "Input settings" main menu (page 23). —> If necessary set further lines. • Press the button. —> The "Option settings" – "OPTIONS" main menu is activated. - 30 - HDMA 784 C ASI...
  • Page 31 • Using the button place the cursor under "off" and switch "on" the trans- mitter identification using the buttons. —> By pressing the button you return to the hexadecimal number setting. • Press the button. - 31 - HDMA 784 C ASI...
  • Page 32 ("SDT-OTHER") or "off" ("sdt-other") the service description table using the buttons. —> Capital letters: Function activated Lower case letters: Function deactivated (factory default) • Press the button. —> The "Deleting a PID" – "DROP" submenu is activated. - 32 - HDMA 784 C ASI...
  • Page 33 "off" and rename the PID using the buttons ("on"). • Press the button. —> Returning to "Option settings" main menu (page 31). —> If necessary set further channel strips. • Press the button. - 33 - HDMA 784 C ASI...
  • Page 34 In this case correct the QAM settings (pages 20) or the settings of the station filter (page 26). Bx 4A DATARATE ! ! ! 54/51 Mb • Press the button. —> The "Network Information Table" – "NIT" main menu is activated. - 34 - HDMA 784 C ASI...
  • Page 35 NIT is added again. If you have changed parameters in the meantime, you must first select "Make" to generate a new, up-to-date NIT. • Press the button. —> The "Factory reset" – "FACTORY Defaults" main menu is activated. - 35 - HDMA 784 C ASI...
  • Page 36 —> Back to "Selecting the module" (page 17). —> By pressing the button, you will be returned to the menu item "Output settings" without saving the factory defaults (page 17). —> If necessary set another channel strip. - 36 - HDMA 784 C ASI...
  • Page 37 "Selecting the module / channel strip" via (page —> By pressing the button, you will be returned to the menu item "Selecting the module / channel strip" via without saving the programmed data. - 37 - HDMA 784 C ASI...
  • Page 38 • Test the output level of the output collector according to the STC 160 assem- bly instructions and set the output level required for the cable system. • Mount the base plate and the front cover (see STC 160 assembly instruc- tions). - 38 - HDMA 784 C ASI...
  • Page 39 C 58 770.00 C 68 850.00 C 29 538.00 C 39 618.00 C 49 698.00 C 59 778.00 C 69 858.00 C 30 546.00 C 40 626.00 C 50 706.00 C 60 786.00 - 39 - HDMA 784 C ASI...
  • Page 40 CE - Declaration of Conformity Service: Phone: +49 (0) 911 / 703 2221 • Fax: +49 (0) 911 / 703 2326 • Email: service@gss.de Grundig SAT Systems GmbH • Beuthener Straße 43 • D-90471 Nürnberg Alterations reserved. Technical data E. & O.E.
