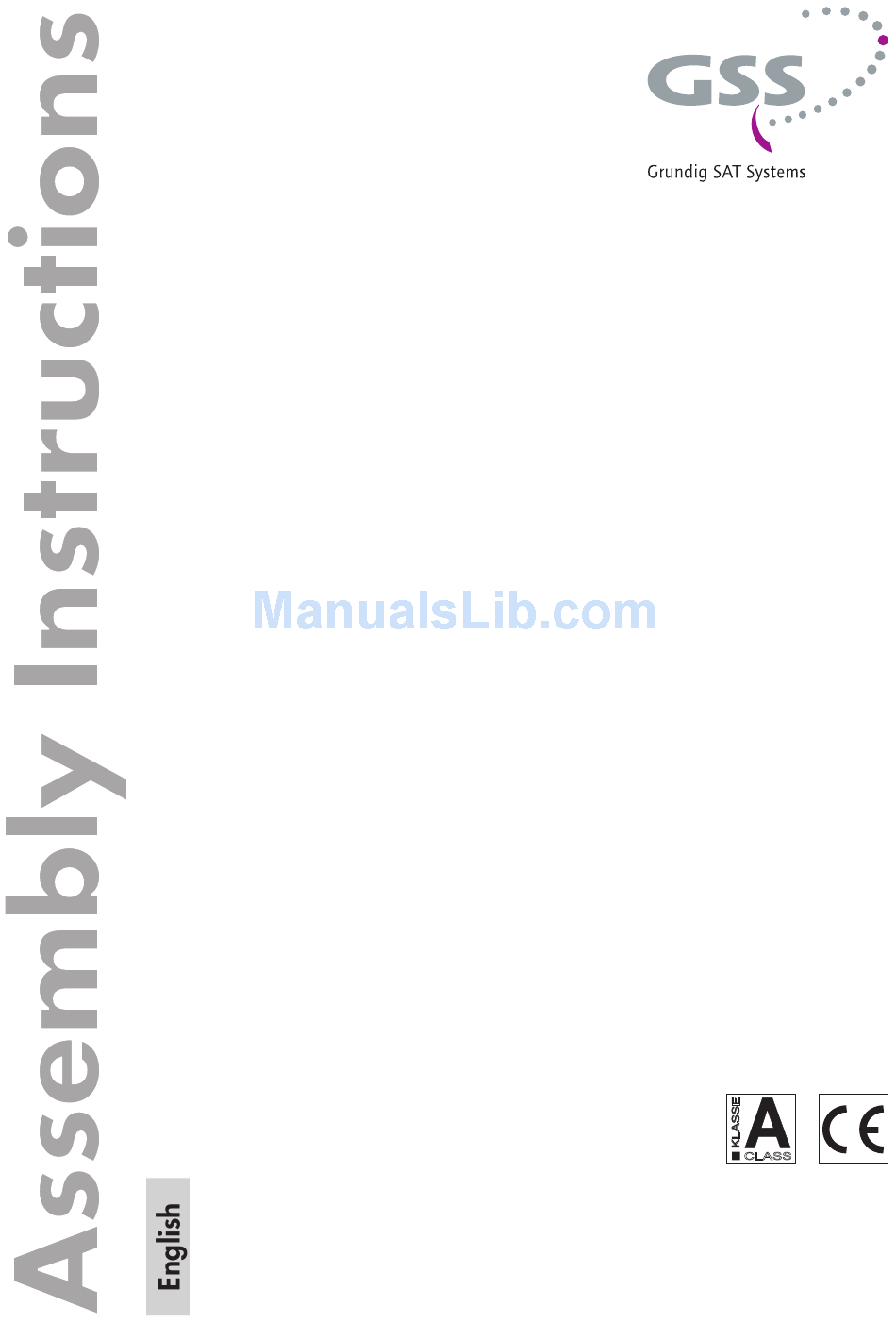

- Page 1 Head-End Modulator FM 2xSAT+ASI to 12xFM HDTV 1000 FM CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Strasse 43 E-mail: info@gss.de D-90471 Nuremberg Internet: http://www.gss.de...
-
Page 2: Table Of Contents
Language selection ..............25 Frequency deviation adjustment ............ 25 Kind of transmission ..............26 RDS ................... 26 Output level ..................27 Factory reset ..................28 Saving settings ................. 28 6 Final procedures ....................29 - 2 - HDTV 1000 FM... -
Page 3: Safety Regulations And Notes
At the end of its service life, please take your device to one of these public collection facilities for proper disposal. - 3 - HDTV 1000 FM... -
Page 4: General Information
C o n t e n t s 1 Cassette HDTV 1000 FM 2 HF cables 1 Brief assembly instructions... - Page 5 Update interface ............... Buchse RS 232 Common Interface ................1 Several channels can be descrambled Remote maintenance Remotely controllable (via PSW 1000*): ..........yes Remote update (via BEflash*): ............. yes (* and a corresponding management unit) - 5 - HDTV 1000 FM...
-
Page 6: Description
To operate this cassette the software version of the control unit must be “V 44” or higher. You can find the current operating software for the control unit and the cassette, the software “BE-Flash” and the current assembly instructions on the website “www.gss.de”. The cassette is designed for use in head-end stations of the standard line. - 6 - HDTV 1000 FM... -
Page 7: Software Query
If necessary, you can activate the indication of the software version of the control unit manually: • Press any two keys on the control unit of the head-end station simultaneously until the display goes dark and the software version, e.g. “V 44” appears. Cassette After activating the cassette the software version of the cassette is displayed (see page 15). - 7 - HDTV 1000 FM... -
Page 8: Assembly
• Insert the cassette in this slot and push it into the housing. • Align the cassette and apply slight pressure to connect it to the connections of the board and the HF bus bar. • Fasten the cassette with the screws 0° ACHTUNG! MESSAUSGANG Vor dem Cassettenwechsel unbedingt Netzstecker ziehen! CAUTION! Before changing cassettes remove mains plug! C LASS - 8 - HDTV 1000 FM... -
Page 9: Emc Regulations
19” cabinet. Tighten the nuts on the cable terminals until the teeth on the lock washer have penetrated the exterior coating and a good connection is made between the hous- ing and cable terminals. - 9 - HDTV 1000 FM... -
Page 10: Cassette Overview
9-pin D-SUB socket “RS 232” using a PC or notebook and the software “BE-Flash”. You can find the current operating software on the website “www.gss.de”. o n n e C t i n g t h e C a s s e t t e • Connect the SAT input sockets “A” (tuner “A”) and “B” (tuner “B”) to the cor-... -
Page 11: Retrofitting A Ca Module
(top) of the CA module • Insert the CA module into the slot with the top side of the CA module facing the RS-232 socket of the cassette. • Push the CA module without canting into the guide rails of the CA slot and contact it to the common interface. - 11 - HDTV 1000 FM... -
Page 12: The Control Panel At A Glance
The key pad on the head-end station is used to scroll through the menus: scrolls forward through the menus. select parameters in the menus. set values, initiate actions. selects sub-menus. scrolls backward through the menus. saves all entries. - 12 - HDTV 1000 FM... -
Page 13: Programming
CA module used. Bx 4 SERVICES ▶ => CLEAR ALL FM 01 87.50 FM 01 FREQ ▶ Bayern 1 => 87.50 => auto FM 01…12 FM 01…12 FM 12…01 FM 12…01 - 13 - HDTV 1000 FM FM 01 RA 001/091... - Page 14 Bx 4 LEVEL 0 dB 0 … - 10 dB Seite 13 auf Werkseinstellung Bx 4 FACTORY Bx 4 FACTORY zurücksetzen und speichern ▶ reset to factory defaults Defaults => STORE => M and store - 14 - HDTV 1000 FM...
-
Page 15: Programming The Cassette
—> The display shows e.g. the menu "Box 4 DVBS2-FM": "Box 4" stands for slot 4, "DVBS2-FM" type of cassette "V 1" software version of the cassette • Press the button. —> The "Input parameters" – "INPUT" main menu is activated. - 15 - HDTV 1000 FM... -
Page 16: Input Parameters
• To set other oscillator frequencies use the buttons to place the cursor under the digit of the oscillator frequency displayed to be set. • Press to enter the respective digit of the oscillator frequency of the LNB used. • Repeat the procedure by the quantity of the digits to be set. - 16 - HDTV 1000 FM... -
Page 17: Input Symbol Rate
Setting the DVB mode • Use the button to place the cursor under “DVB-S” and set the required DVB-S2-mode with the buttons. • Press the button. —> The “Setting the input frequency” – “FREQ” menu is activated. - 17 - HDTV 1000 FM... -
Page 18: Setting The Input Frequency
• Press the button. —> Using a CA-Modul, submenu “CA settings” – “CA-MENU” is acti- vated. —> Not using a CA-Modul you will be returned to the “Input parameter” – “INPUT” main menu (page 16). - 18 - HDTV 1000 FM... -
Page 19: Operation With A Ca Module
This may appear as a fixed display or as scrolling text according to display capabilities. ▶ Bx 4A CA-MENU Bx 4A 01/05 MENU ▶ PID Check on => Information *) - 19 - HDTV 1000 FM... - Page 20 “CA” main menu. • Press the button. —> You will be returned to the “Input parameter” – “INPUT” main menu (page 16). • Press the button. —> The menu “Delete programme locations” – “SERVICES” is activated. - 20 - HDTV 1000 FM...
-
Page 21: Delete Programme Locations
As long as no radio station is assigned to a programme location, the transmitter is switched off. —> A "Factory Reset" resets to the programme locations preset in the factory. • Press the button. —> The “Output parameters” – “FM 01” menu is activated. - 21 - HDTV 1000 FM... -
Page 22: Programme Locations
The output parameter settings are to be done for each of the 12 programme locations. The programme location is displayed in the upper left corner – e.g. FM 01 means programme location 01. FM 01 - 22 - HDTV 1000 FM... - Page 23 FM 03 RDS-NAME FM 12…01 => auto FM 02 RDS-NAME => auto FM 01 RDS-NAME Bayern 1 => auto FM 01…12 FM 12…01 • Press the button. —> Submenu “Output frequency” – “FREQ” is activated. - 23 - HDTV 1000 FM...
-
Page 24: Output Frequency
ASI) is transmitted via the corresponding programme location. FM 01 RA 001/091 Bayern 1 Meaning of the indicators: “FM 01” Programme location FM 01 “RA” Radio channel “001/091” Channel 1 of 91 “Bayern 1” Programme name of channel 1. - 24 - HDTV 1000 FM... -
Page 25: Language Selection
C y d e v i at i o n a dj u s tm e n t In this submenu you can adjust the deviation. This has effects for the volume. FM 01 VOLUME 0.0 dB <=>C • With buttons adjust the frequency deviation in 0.1 dB steps. - 25 - HDTV 1000 FM... -
Page 26: Kind Of Transmission
• Press to set the respective digit of the name. —> Via the "auto" function you can adopt the RDS Programme Service Name automatically from the channel name of the transponder. - 26 - HDTV 1000 FM... -
Page 27: Output Level
P u t l e v e l In this menu the output level can be adjusted (0 … -10 dB). Bx 4 LEVEL 0 dB • With the buttons adjust the output level wished. • Press the button. —> The “Factory reset” – “FACTORY” main menu is activated. - 27 - HDTV 1000 FM... -
Page 28: Factory Reset
“Input parameters” – “INPUT” invoking the factory defaults (page 16). av i n g s e t t i n gs • Press the button. —> Back to “Selecting the cassette” (page 15). —> The settings are saved. - 28 - HDTV 1000 FM... -
Page 29: Final Procedures
After installing the head-end station, upgrading accessories or installing cas- settes it is necessary to tighten all cable connections, cable terminals and cover screws in order to maintain compliance with current EMC regulations securely. • Securely tighten the cable bolted connections using an appropriate open- ended spanner. • Mount the front cover (see assembly instructions of the head-end station). - 29 - HDTV 1000 FM... - Page 30 Declaration of CE conformity - 30 - HDTV 1000 FM...
- Page 31 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © by GSS GmbH V1/17112010...
