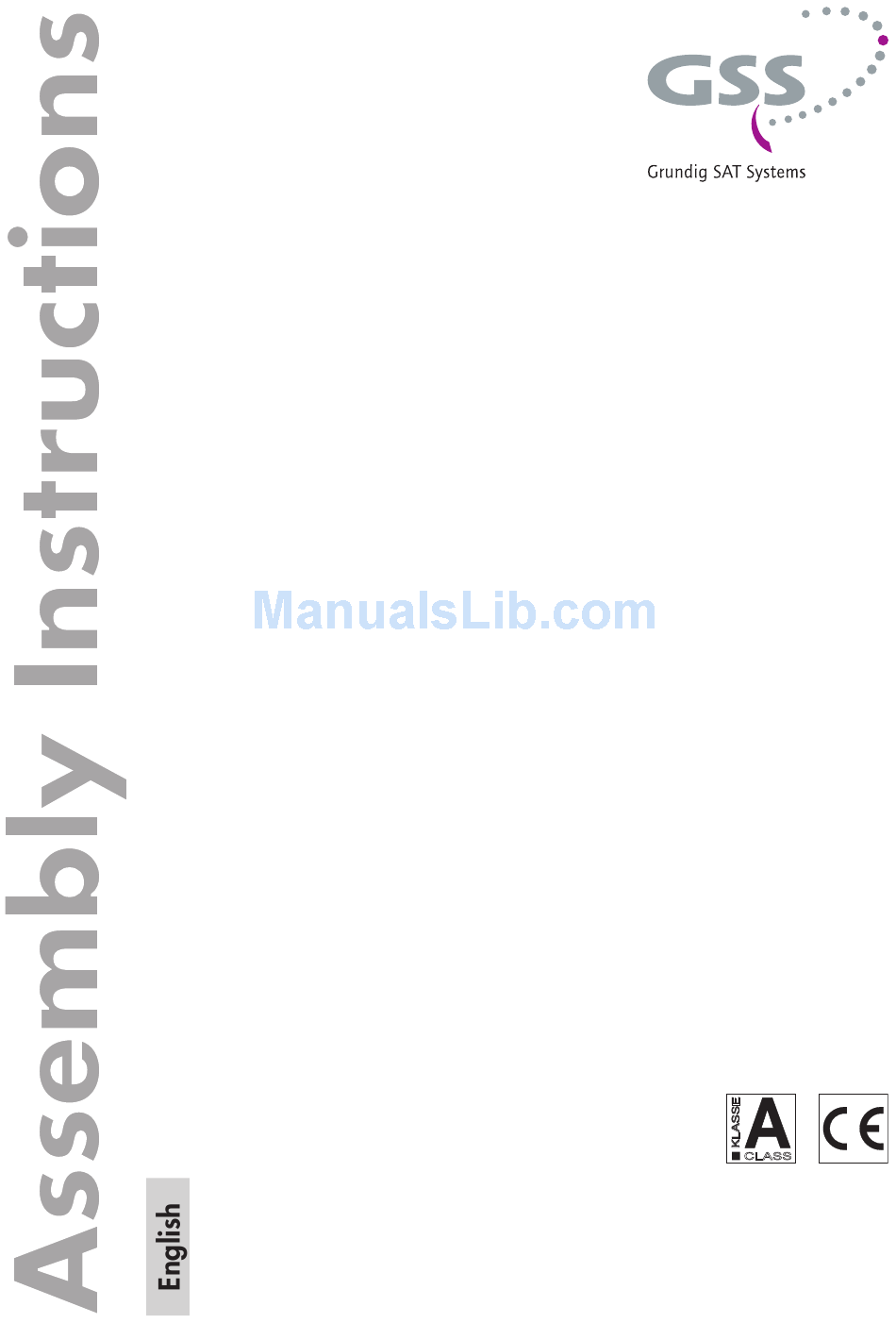

- Page 1 Head-End Digital Modulator HDTV / COFDM HDTV 1000 TD CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Strasse 43 E-mail: info@gss.de D-90471 Nuremberg Internet: http://www.gss.de...
-
Page 2: Table Of Contents
4 The control panel at a glance ..............15 Menu items .................15 Control panel ................15 5 Programming .................... 16 Preparation .................16 Notes on level setting ..............16 Programming procedure ...............17 Programming the cassette ............20 Selecting the cassette ..............20 - 2 - HDTV 1000 TD... - Page 3 Saving settings ...............44 Operation with a CA module ............45 PID monitoring ...............45 Configuring the CA module .............46 Setting the station filter ............47 6 Final procedures ..................49 7 Channel and frequency tables ..............50 - 3 - HDTV 1000 TD...
-
Page 4: Safety Regulations And Notes
At the end of its service life, please take your device to one of these public collection facilities for proper disposal. - 4 - HDTV 1000 TD... -
Page 5: General Information
2.1 P aC k i n g C o n t e n t s 1 Cassette HDTV 1000 TD 2 RF cables 2 Cable termi nals 4 Contact washers 1 Brief assembly instructions 2.2 m... -
Page 6: Description
The transport stream fed via the ASI socket can be inserted into the transport streams of the receiving stages via the TPS module. The signal path is set in the menu items input signal path "INROUTE" and output signal path "OUTROUTE". - 6 - HDTV 1000 TD... -
Page 7: Input Signal Path "Inroute
"TS ASI" are split into transport stream 1 and 2. Receiving stage "B" is not used. TS A Receiving stage CA module Transport stream 1 RF input ”A“ "A" TS ASI Transport stream ASI ASI input Transport stream 2 - 7 - HDTV 1000 TD... -
Page 8: Output Signal Path "Outroute
ASI output and the transport stream from the ASI input "TS ASI" via modulator "B" (MB). TS 1 Modulator Transport stream 1 "A" Combiner RF output TS ASI Modulator Transport stream ASI "B" TS 2 Transport stream 2 ASI output - 8 - HDTV 1000 TD... -
Page 9: General
"V 44" or higher. You can find the current op- erating software for the control unit and the cassette, the software "BE-Flash" and the current assembly instructions on the website "www.gss.de/en". The cassette is intended for use in the STANDARD LINE head-end stations. -
Page 10: How The Tps Module Works
P e r ato r Some network operators transmit an operator ID in the data stream (e.g. visAvision). By changing the CAT the operator ID can be adjusted to the cur- rent demands. - 10 - HDTV 1000 TD... -
Page 11: Assembly
RF bus bar. • Fasten the cassette with the screws 0° ACHTUNG! Vor dem Kassettenwechsel MESSAUSGANG unbedingt denNetzstecker ziehen. –20 dBµV CAUTION! AUSGANG Before changing cassettes remove max. 106 dBµV mains plug. Grundig SAT Systems - 11 - HDTV 1000 TD... -
Page 12: Emc Regulations
19" cabinet. Tighten the nuts on the cable terminals until the teeth on the lock washer have penetrated the exterior coating and a good connection is made between the hous- ing and cable terminals. - 12 - HDTV 1000 TD... -
Page 13: Cassette Overview
The operating software of the cassette can be updated via the 9-pin D-SUB socket "RS 232" using a PC or notebook and the software "BE-Flash". You can find the current operating software on the website "www.gss.de/en". 3.4 C o n n e C t i n g... -
Page 14: Retrofitting A Ca Module
CA module facing the RS-232 socket of the cassette. • Push the CA module without canting into the guide rails of the CA slot and contact it to the common interface. - 14 - HDTV 1000 TD... -
Page 15: The Control Panel At A Glance
The key pad on the head-end station is used to scroll through the menus step-by-step: scrolls forward through the menus. select parameters in the menus. set values, initiate actions. selects sub-menus. scrolls backward through the menus. saves all entries. - 15 - HDTV 1000 TD... -
Page 16: Programming
• Test the software versions of the head-end station and the cassette and up- date them if necessary. The current software versions can be found on the website "www.gss.de/en". • Connect the test receiver to the RF output or the test output of the head-end station. -
Page 17: Programming Procedure
4A/B Bx 4A/B ◀ ▶ ◀ ▶ - 17 - HDTV 1000 TD a = T (Ton/sound) / D (DiSEqC) 10600 MHz 10600 MHz DAHh b = A,B / 0…15 (0…F hex) c = H / V (horizontal / vertical) - Page 18 ◀ ▶ dependent on the CA module QPSK…QAM64 8MHz QAM64 5…8MHz used. positiv / negativ positive / negative 4A/B COFDM-MODE ◀ ▶ - 18 - HDTV 1000 TD C1/2 … C7/8 C7/8 G1/32 2 … 8k G1/4 … G 1/32...
- Page 19 0x0000 –> 0000 on / off Page 17 auf Werkseinstellung Bx 4 FACTORY Bx 4 FACTORY zurücksetzen und speichern ▶ reset to factory defaults Defaults => STORE => M and store speichern / store - 19 - HDTV 1000 TD...
-
Page 20: Programming The Cassette
—> The display shows e.g. the menu : Box 4 DVBS2-TPI COFDM "Box 4" stands for slot 4 "DVBS2-TPI COFDM" Type of cassette "V 34" Software version of the cassette • Press the button. —> The "Input signal path" – "INROUTE" menu is activated. - 20 - HDTV 1000 TD... -
Page 21: Input Signal Path
—> The "Selecting the channel strip" – "LINE" menu is activated (page 23). • To set the ASI parameters press the button. —> The "ASI transfer rate" – "ASI RATE" menu is activated. - 21 - HDTV 1000 TD... -
Page 22: Asi Transfer Rate
"cont." (continuous – standard) and using the set to "burst". —> Setting "cont." The data packets of the user data are collected to a great data packet in the transport stream. - 22 - HDTV 1000 TD... -
Page 23: Selecting The Channel Strip
306 MHz going back in steps of 8 MHz (see frequency table on page 47). Please note thereby that many receivers cannot receive the channel ranges S21 … S41 (306 … 466 MHz). Bx 4A OUTPUT Channel - 23 - HDTV 1000 TD... -
Page 24: Output Channel
- - - —> The switched off modulator is indicated by " " in the display instead of the channel or frequency display. —> The status LED is switched off (see also page 16). - 24 - HDTV 1000 TD... -
Page 25: Adjusting The Output Levels Of The Channel Strips
("0" … "–10 dB"). • Press the button. —> The "LNB oscillator frequency" – "LNB" menu is activated. - 25 - HDTV 1000 TD... -
Page 26: Lnb Oscillator Frequency / Control Voltage
Example: DAHh means DiSEqC (D) position 10 (A), Horizontal (H) high (h) —> The control voltage only serves to control multiswitches and is not suitable for power supply of upstreamed components (maximum load 65mA). - 26 - HDTV 1000 TD... -
Page 27: Input Symbol Rate
—> GSS Multiswitches must be triggered by the following DiSEqC co- mands: Input group A —> DiSEqC command D0 Input group B —> DiSEqC command D1 Input group C —> DiSEqC command D2 Input group D —> DiSEqC command D3 Example: In order to trigger input group B for horizontal polarisa- tion and high band D1Hh must be set. -
Page 28: Input Frequency
• Set the frequency offset shown in the display (e.g. "– 1.8") to less than 1 MHz by varying the input frequency using the buttons. • Press the button. —> The "Signal to noise ratio" – "C/N" menu is activated. - 28 - HDTV 1000 TD... -
Page 29: Signal To Noise Ratio
25-27, before activating the "Setting the station filter" – "PROGRAM" menu. If the input signal path "A+ASI=1 B+ASI=2" is selected the channel strips can be programmed one after the other. - 29 - HDTV 1000 TD... -
Page 30: Station Filter
Menu setting "A+B+ASI = 1 ASI = 2". Channel strip "A" Bx 4A PROGRAM Bx 4A TV 01/10 Filter Das Erste AUDIO AUDIO Bx 4B TV 02/19 SWF3 AUDIO AUDIO 01/10 ..- 30 - HDTV 1000 TD... - Page 31 —> If a service number (e.g. "131") appears instead of "TV" or "RA", this indicates that an unnamed station or an undefined data stream is being received. - 31 - HDTV 1000 TD...
- Page 32 Bx 4A TV 01/10 Filter Das Erste ▶ 02/19 ORF2 • Set the channel strip "A" or "B". —> The setting of the channel strips "A" and "B" is identical and follows the description above. - 32 - HDTV 1000 TD...
-
Page 33: Cofdm Parameters
14929 16588 17564 18096 16588 18431 19516 20107 17418 19353 20491 21112 14929 16588 17564 18096 19906 22118 23419 24128 64 QAM 22394 24882 26346 27144 24882 27647 29273 30160 26126 29029 30737 31668 - 33 - HDTV 1000 TD... - Page 34 11197 12441 13173 13572 12441 13824 14637 15080 13063 14515 15369 15834 11197 12441 13173 13572 14929 16588 17564 18096 64 QAM 16796 18662 19760 20358 18662 20735 21995 22620 19595 21772 23053 23751 - 34 - HDTV 1000 TD...
- Page 35 Used bandwidth [MHz] 5.71 5.71 5.71 Total symbol duration 373 336 317 308 767 672 634 616 1493 1344 1269 1232 [µs] Guard interval T [µs] 74.7 37.3 18.7 9.3 37.4 18.6 298.7 149.3 74.6 37.3 - 35 - HDTV 1000 TD...
-
Page 36: Output Signal
"NEG". The default setting is "POS". • Use to place the cursor under "POS". • Use to set the spectral position to "NEG". • Press the button. —> The "Transmission parameters" – "COFDM-MODE" menu is activated. - 36 - HDTV 1000 TD... -
Page 37: Transmission Parameters
"G1/4" causes a low output data rate. For cable networks the setting "G1/32" is adequate. • Use the buttons to place the cursor under "G…". • Set the guard interval required using the buttons ("G1/4", "G1/8", "G1/16", "G1/32"). • Press the button. - 37 - HDTV 1000 TD... -
Page 38: Transmitter Identification
34363 (= "Number 1"): Maximum gross output data rate (32502) (= "Number 2"): The current measured gross output data rate. If the station filter is set correctly, this value is lower than the value of the - 38 - HDTV 1000 TD... -
Page 39: Setting A Substitute Signal In The Case Of An Incorrect Input Signal
Self-made tables are transmitted further- more. 4A/B FAILURE Single Carrier • Use the buttons to set the output signal required. • Press the button. —> The "Transport stream ID and the ORGNET-ID" – "TS/ONID" menu is activated. - 39 - HDTV 1000 TD... -
Page 40: Transport Stream Id And The Orgnet-Id
NIT ("Make"). All active cassettes which are able to output a NIT ("NIT cassettes") must be set and ready for reception. —> The NIT of all "NIT cassettes" are switched on. - 40 - HDTV 1000 TD... -
Page 41: Network/Operator Identification
Changing the CAT: The network operator e.g. requires that you set the operator ID of the visAvision transponder to "2". • Use the buttons to position the cursor under the digit to be set. - 41 - HDTV 1000 TD... -
Page 42: Deleting A Pid
• Use the button to set the cursor under "off" and delete the PID using the buttons ("on"). • Press the button. —> The "Renaming a PID" – "REMAP" menu is activated (page 43). - 42 - HDTV 1000 TD... -
Page 43: Renaming A Pid
• Set the hexadecimal number using • Use the button to set the cursor to "off" and rename the PID using the buttons ("on"). • Press the button. —> The "Factory reset" – "FACTORY Defaults" menu is activated. - 43 - HDTV 1000 TD... -
Page 44: Factory Reset
—> If functions of the TPS module are activated, their status is shown in the second line of the menu: "M" – Station filter is switched on. "N" – NIT is activated. "C" – Network/operator identification CAT is activated. —> If necessary set channel strip "B". - 44 - HDTV 1000 TD... -
Page 45: Operation With A Ca Module
Bx 4A PID Check • Use the buttons to switch "off" or "on" the PID monitoring. • Press the button. —> The "Configuring the CA module" – "CA" menu is activated. - 45 - HDTV 1000 TD... -
Page 46: Configuring The Ca Module
• Press the button to activate the menu. • Use the buttons to select the function desired. • To set the CA module use the buttons. • All settings are saved by pressing the button. - 46 - HDTV 1000 TD... -
Page 47: Setting The Station Filter
The currently selected station is not to descramble. • Use the buttons to call up the stations in sequential order which are to be decoded, then use to decrypt ("X") or not to decrypt them ("0"). - 47 - HDTV 1000 TD... - Page 48 —> The filter is activated. The display shows the "Configuring the CA module" – "CA" menu. Bx 4A Menu <= => Edit • Press the button. —> The "Output signal" – "COFDM-MODE" menu is activated (page 36). - 48 - HDTV 1000 TD...
-
Page 49: Final Procedures
Please regard the assembly instructions of the respective head-end station. • Mount the front cover (see assembly instructions of the head-end station). - 49 - HDTV 1000 TD... -
Page 50: Channel And Frequency Tables
C 48 690.00 C 58 770.00 C 68 850.00 C 29 538.00 C 39 618.00 C 49 698.00 C 59 778.00 C 69 858.00 C 30 546.00 C 40 626.00 C 50 706.00 C 60 786.00 - 50 - HDTV 1000 TD... - Page 51 Declaration of CE conformity - 51 - HDTV 1000 TD...
- Page 52 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © GSS GmbH V34/17072013...
