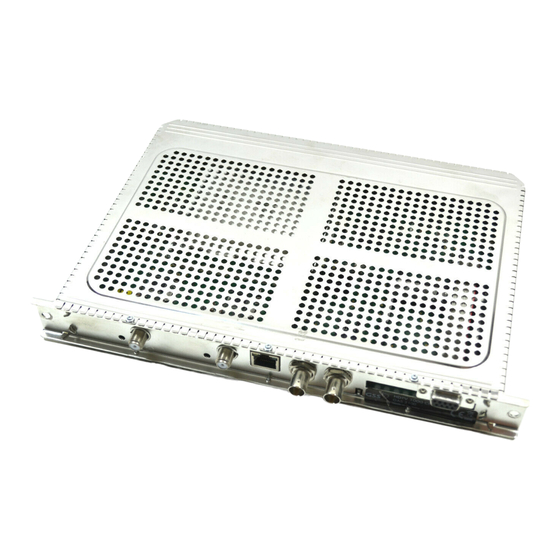

Head-end digital modulator hdtv
Hide thumbs Also See for HDTV 1000 ASI LAN:

Advertisement

Quick Links

Kurz-Montageanleitung
Brief Assembly Instruction
CLASS
Head-End Digital Modulator HDTV
HDTV 1000 ASI LAN / HDTV 1001 C
Deutsch
1
Wichtige Informationen
• Montage, Installation und Service sind von
autorisierten Elektrofachkräften durchzu-
führen.
• Betriebsspannung der Anlage vor Beginn
von Montage- oder Servicearbeiten ab-
schalten.
• Führen Sie Installations- und Servicearbeiten
nicht bei Gewittern durch.
• Stellen Sie eine ausreichende Belüftung des
Gerätes sicher.
• Vermeiden Sie Kurzschlüsse!
• Die Normen IEC/EN/DIN EN 50083 bzw. IEC/
EN/DIN EN 60728, müssen eingehalten werden.
• Beachten Sie die relevanten Normen, Vor-
schriften und Richtlinien zur Installation und
zum Betrieb von Antennenanlagen.
• Überprüfen Sie die Kopfstation auf die in de-
ren Montageanleitung gelisteten Sicherheits-
vorschriften.
• Schäden durch fehlerhaften Anschluss und/
oder unsachgemäße Handhabung der Cassette
sind von jeglicher Haftung ausgeschlossen.
• Prüfen Sie die Software-Versionen der Kopfstati-
on und der Cassette und aktualisieren Sie diese
falls erforderlich. Die aktuellen Software-Versi-
onen finden Sie unter "www.gss.de".
Beachten Sie für weitergehende Informationen
zu Sicherheit, Montage und Programmierung die
Montageanleitun gen der Cassette und der Kopf-
station, die Sie auf "www.gss.de" finden.
Wenn Sie keinen Internetzugang haben, senden
wir Ihnen auf Anfrage gerne eine DVD.
English
1
Important information
• Assembly, installation and servicing should
be carried out by authorised electricians.
• Switch off the operating voltage of the
system before beginning with assembly or
service work.
• Do not perform installation and service work
during thunderstorms.
• Make sure the device is adequately ventilated.
• Avoid short circuits!
• The standards IEC/EN/DIN EN 50083 resp.
IEC/EN/DIN EN 60728 must be observed.
• Observe the relevant standards, regulations
and guidelines on the installation and opera-
tion of antenna systems.
• No liability is accepted for damage caused by
faulty connections or inappropriate handling of
the device.
• Check the head-end station according to the
safety instructions listed in their assembly in-
struction.
• Test the software versions of the head-end sta-
tion and the cassette and update them if nec-
essary. The current software versions can be
found at "www.gss.de".
For further information on safety, installation and
programming please read the assembly instruc-
tions for the cassette and the head-end station
you will find at "www.gss.de".
If you do not have internet access, we will send
you a DVD on request.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDTV 1000 ASI LAN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GSS HDTV 1000 ASI LAN

  • Page 1 Kurz-Montageanleitung Brief Assembly Instruction CLASS Head-End Digital Modulator HDTV HDTV 1000 ASI LAN / HDTV 1001 C Deutsch English Wichtige Informationen Important information • Montage, Installation und Service sind von • Assembly, installation and servicing should autorisierten Elektrofachkräften durchzu- be carried out by authorised electricians. führen. • Switch off the operating voltage of the • Betriebsspannung der Anlage vor Beginn...
  • Page 2 CA module "A" Empfangsteil TS B SAT-Eingang ”B“ Transportstrom 1 Receiving stage SAT input ”B“ Transport stream 1 "B" TS ASI ASI-Eingang Transportstrom 2 ASI input Transport stream 2 - 2 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 3: Menu Setting "A+Asi=1 A+Asi=2"

    Menüeinstellung “1=>ASI ASI=>MA” Menu setting “1=>ASI ASI=>MA” ASI-Ausgang Transportstrom 1 ASI output Transport stream 1 TS ASI Modulator ASI-Eingang "A" ASI input HF-Ausgang Combiner HF output Transportstrom 2 Modulator Transport stream 2 "B" - 3 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 4 43“ entspre- “V 43” or higher. chen. Die Cassette ist für den Betrieb in den The cassette is intended for use in the Kopfstationen STC 816, STC 1200 und STC 816, STC 1200 and PST 19-1 PST 19-1 vorgesehen. head-end stations. - 4 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 5 • Fasten the cassette with the screws • Cassette mit den Schrauben be- festigen. 0° ACHTUNG! MESSAUSGANG Vor dem Cassettenwechsel unbedingt Netzstecker ziehen! CAUTION! Before changing cassettes remove mains plug! - 5 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 6 Durchführungen so fest an, dass sich nals until the teeth on the lock washers die untergelegten Zahnscheiben durch put under the nuts have penetrated the die Oberflächenbeschichtung drücken exterior coating and a good connection und einen sicheren Kontakt zwischen is made between the housing / Gehäuse / 19”-Schrank und Kabel- 19” cabinet and cable terminal. Durchführung gewährleisten. - 6 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 7 “RS  232” kann mittels eines PC oder socket “RS 232” using a PC or note- Notebooks und der Software “BE-Flash” book and the software “BE-Flash”. You die Betriebssoftware der Cassette aktu- can find the current operating software alisiert werden. Die aktuelle Betriebs- on the website “www.gss.de”. software finden Sie auf der Website “www.gss.de”. - 7 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 8 CA-Moduls zur RS-232-Buchse der sette. Cassette zeigt. • Push the CA module without canting • CA-Modul ohne zu verkanten in die into the guide rails of the CA slot Führungsschienen des CA-Schachts and contact it to the common inter- schieben und mit dem Common- face. Interface kontaktieren. - 8 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 9 • Ausgangskanal der Cassette einstel- • Set the output channel of the cassette len und Messempfänger auf diesen and adjust the TV test receiver to this Kanal abstimmen. channel. • Gegebenenfalls Modulator einschal- • Switch on the modulator if necessary. ten. Ob die Kanalzüge eingeschaltet For each channel strip, there is an sta- sind, wird durch jeweils eine leuch- tus LED which indicates if the channel tende Status-LED angezeigt. strip is switched on. - 9 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 10: Programming Procedure

    188 pos. cont. continuous / burst Bx 4 LINE ◀ ▶ Line A / Line B Line A <= => Line B ◀ ▶ - 10 - HDTV 1000 ASI LAN / HDTV 1001 C 4A/B OUTPUT Freq. Channel / Freq.
  • Page 11 Service (Programm) ..◀ ▶ next service (station) Kanalzug “A” mit CA-Modul Bx 4A Channel strip “A“ with CA module scramble / descramble scramble - 11 - HDTV 1000 ASI LAN / HDTV 1001 C scramble...
  • Page 12 Single Carrier Null Packets … Single Carrier 4A/B TS/ONID ◀ ▶ 0x0001,0100 on / off 4A/B ▶ => Make on / off Make - 12 - HDTV 1000 ASI LAN / HDTV 1001 C 4A/B CAT-ID ◀ ▶ ◀ ▶...
  • Page 13 • Ausgangspegel der anderen Casset- • Measure the output levels of the other ten messen und je nach verwende- cassettes and tune them to a uniform ter Kopfstation mit den zugehörigen output level using the appropriate lev- Pegelstellern bzw. der Software auf el controls or software dependent on einen einheitlichen Ausgangspegel the head-end station used. einstellen. - 13 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 14 (mehrere Programme entschlüsselbar) ...........(several stations can be descrambled) Fernwartung Remote maintenance Fernbedienbar (über PSW 1000*) .... ja / yes ..Remotely controllable (via PSW 1000*) Fernupdate (über BEflash*) ....... ja / yes ....Remote update (via BEflash*) (* und eine entsprechende Managementeinheit) (* and a corresponding management unit) Lieferumfang Packing contents Cassetten ............1 ............ Cassettes HF-Kabel .............2 ........... HF cables Kurzmontageanleitung ........1 ......Brief assembly instructions - 14 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 15 C 67 842.00 C 28 530.00 C 38 610.00 C 48 690.00 C 58 770.00 C 68 850.00 C 29 538.00 C 39 618.00 C 49 698.00 C 59 778.00 C 69 858.00 C 30 546.00 C 40 626.00 C 50 706.00 C 60 786.00 - 15 - HDTV 1000 ASI LAN / HDTV 1001 C...
  • Page 16 Elektronik-Altgeräte fachgerecht entsorgt wer- such devices must be disposed of at a designat- den. Bitte geben Sie dieses Gerät am Ende sei- ed collection facility. At the end of its service life, ner Verwendung zur Entsorgung an den dafür please take your device to one of these public vorgesehenen öffentlichen Sammelstellen ab. collection facilities for proper disposal. Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Grundig SAT Systems GmbH • Beuthener Straße 43 • D-90471 Nürnberg Änderungen vorbehalten. Technische Angaben ohne Gewähr. © by GSS GmbH V16/08122010 Alterations reserved. Technical data E. & O.E. 26600 941 2003...
