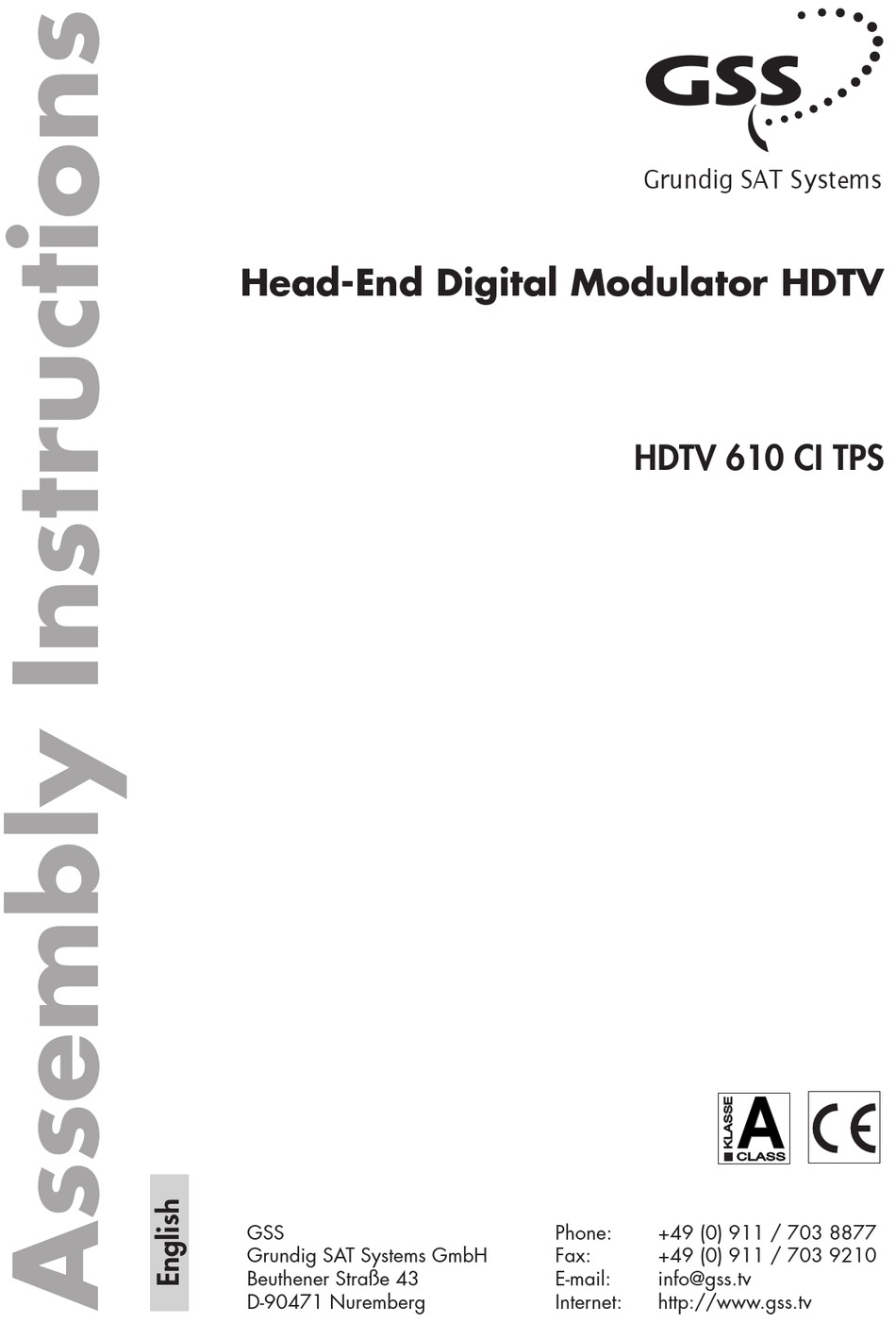

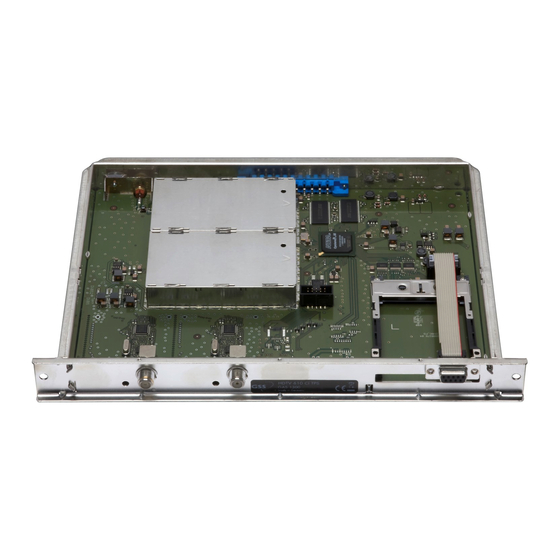

- Page 1 Grundig SAT Syst ms Head-End Digital Modulator HDTV HDTV 610 CI TPS C LASS CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Straße 43 E-mail: info@gss.tv D-90471 Nuremberg Internet: http://www.gss.tv...
-
Page 2: Table Of Contents
Contents 1 Safety regulations .....................4 2 General information ....................4 2.1 Packing contents ..................4 2.2 Meaning of the symbols used ................5 2.3 Technical data .....................5 2.4 Description ....................6 2.5 Software query ....................7 2.6 How the TPS module works ................7 2.7 Explanation of the term “symbol rate” ............8 2.8 Bandwidth-efficient assignment of cable channels with low bandwidths ....9 3 Assembly .......................10 3.1 Installing the cassette ..................10... - Page 3 5.4.1 Operation with a CA module ............32 Setting the operating voltage for the CA module .........32 Setting the PID monitoring ..............33 Configuring the CA module ..............34 Setting the station filter ..............35 6 Channel and frequency tables .................37 - 3 - - 3 -...
-
Page 4: Safety Regulations
• For further information please read the assembly instructions for the head- end station used. Take action to prevent static discharge when working on the device. General information 2.1 Packing contents 1 cassette HDTV 610 CI TPS 2 HF cables 1 CD (assembly instructions) 1 Brief assembly instructions - 4 -... -
Page 5: Meaning Of The Symbols Used
2.2 Meaning of the symbols used Important note —> General note • Performing works 2.3 Technical data The devices meet the following EU directives: 2006/95/EC, 2004/108/EC The product fulfils the guidelines and standards for CE labelling. HF input Frequency range: 925 …... -
Page 6: Description
You can find the current operating software for the control unit and the cassette, the software “BE-Flash” and the current assembly instructions on the website “www.gss.tv”. The cassette is designed for use in the following head-end stations: – STC 1200 –... -
Page 7: Software Query
2.5 Software query Control unit If necessary, you can activate the indication of the software version of the con- trol unit manually: • Press any two keys on the control unit of the head-end station simultaneously until the display goes dark and the software version, e.g. “V 37” appears. 2.6 How the TPS module works After decoding QPSK- or 8PSK-modulated signals, the demodulated data stream can be accessed via the integrated TPS module. -
Page 8: Explanation Of The Term "Symbol Rate
2.7 Explanation of the term “symbol rate” Modulation schemes such as QPSK and QAM transmit multiple bits simultane- ously. These are referred to as symbols. In addition to the user data flow which transmits video and audio information, error correction bits are transferred. The FEC number states the ratio of user bits to the complete transmitted bits. -
Page 9: Bandwidth-Efficient Assignment Of Cable Channels With Low Bandwidths
2.8 Bandwidth-efficient assignment of cable channels with low bandwidths (SelecPlex ® Channels with low bandwidths are the result of filtering out stations which are not required. These “narrow” channels can then be arranged in one channel to save space. To do this, activate the “Setting the output frequency” menu (assign- ment outside the official channel raster). -
Page 10: Assembly
Assembly 3.1 Installing the cassette – Ensure the head-end station is mounted so it will not be able to vibrate. Avoid, for example, mounting the head-end station onto a lift shaft or any other wall or floor construction that vibrates in a similar way. –... -
Page 11: Connecting The Cassette
The operating software of the cassette can be updated via the 9-Pin D-SUB socket “RS 232” using a PC or notebook and the software “BE-Flash”. You can find the current operating software on the website “www.gss.tv”. - 11 - - 11 -... -
Page 12: Retrofitting A Ca Module
3.4 Retrofitting a CA module The cassette is equipped with a common interface. It allows you to connect a CA module for various encryption systems and service providers. Encoded channels can only be decoded with a CA module suitable for the encoding system and the corresponding smart card. -
Page 13: The Control Panel At A Glance
The control panel at a glance 4.1 Menu items Program the cassette using the buttons on the control unit of the head-end station. The two-line display of the control unit then shows the menus. The parameters and functions to be set are underlined. Use the key to select the following main menu items: –... -
Page 14: Programming
Programming 5.1 Preparation • Connect the test receiver to the HF output or the test output of the head-end station. • Set the output channel / output frequency of the cassette (s. page 20 / 21) and adjust the TV test receiver to this channel. •... -
Page 15: Programming Procedure
5.3 Programming procedure 5.3.1 Channel strips “A” without CA module and “B” BE–Remote V 37 Ein / On please wait … t > 10 s Bx 1A TWIN-SAT C5-12,S3-24 Bx 1A TWIN-SAT Böx 4 TWIN-SAT Box 4 DVBS2-TPS Bx 5A DVBT-DVBT C5-12,S3-24 C5-12,S3-24... - Page 16 Bx 4A FREQ Bx 4A Anzeige: Signalqualität ◀ ▶ Display: Signal quality 11836 -1.8 CN 12 12.0 dB (+ 9.6) OK Programme entfernen / hinzufügen Bx 4A PROGRAM Bx 4A TV 01/10 Removing / activating stations nächster Service (Programm) Filter Das Erste ◀...
-
Page 17: Channel Strip "A" With Ca Module
5.3.2 Channel strip “A” with CA module Bx 4A 3.3 V / 5.0 V Supply 5.0 V Bx 4A on / off PID Check Bx 4A Menu <= => Edit X / 0 ◀ ▶ Bx 4A 01/03 MENU Bx 4A TV 04/09 X –... -
Page 18: Programming The Cassette
5.4 Programming the cassette —> Pressing the button for longer than 2 seconds cancels the pro- gramming procedure. This takes you back to the program item “Selecting the cassette” from any menu. Any entries that have not been saved are reset to the previous settings. -
Page 19: Selecting The Channel Strip
Selecting the channel strip Bx 4A DVBS2-TPS A / B • By pressing , select channel strip “A” or “B” —> The display shows e.g. the menu “Bx 4A DVBS2-TPS”: “Bx” stands for cassette (box), “4” for slot 4 “A” for channel strip “A”... -
Page 20: Setting The Output Channel
the bandwidth of the QAM output signal by removing sta- tions. Using “SelecPlex ® “ only the frequency setting can be used. Bx 4A OUTPUT Channel Channel / Freq. • Use to select channel setting “Channel” or frequen- cy setting “Freq.”. •... -
Page 21: Setting The Output Frequency
Setting the output frequency In this menu you set the output frequency of the channel strip (42.0 … 860.0 MHz). Additionally the modulator of the chan- nel strip can be switched off or on. Bx 4A OUTPUT ◀ ▶ ◀ ▶... -
Page 22: Setting The Lnb Oscillator Frequency
• Measure and note down the output level of the channel strip. • Save the settings by pressing the button. • Select the other channel strip (page 19), measure and note down its output level. • Activate the “LEVEL” menu of the channel strip with the higher output level. -
Page 23: Setting The Input Symbol Rate
Setting the input symbol rate The symbol rates of the satellite transponders can be found in the current channel table of the satellite operator, in various satellite magazines and in the Internet. Bx 4A SYMBOL ◀ ▶ ◀ ▶ 27500 DVB-S DVB-S / DVB-S 2 •... -
Page 24: Setting The Input Frequency
Setting the input frequency If three dots “ … “ appear in the second line of the display, the cassette is in the “station search” mode. Please wait until the process has finished. Once the HF receiver has synchronised to the input signal, any offset to the target frequency is displayed in MHz, e.g. - Page 25 Bx 4A (+ 9.6) OK 12.0 dB Current signal to noise ratio This value shows the difference between the quality of the input signal and the threshold of the tuner at this type of modulation. At a value lower than “5” picture dropouts can oc- cur.
-
Page 26: Setting The Station Filter
Setting the station filter The default setting for the station filter is “off”. In this menu you define the stations received to be transmitted. If stations are activated the output symbol rate increases. If the station filter is switched off (factory default) all stations of the transport stream passes the station filter. - Page 27 Further possible terms displayed: “RA” Radio channel type For radio stations, the background of the screen of the connected TV or test receiver is darkened. “ – ” The currently selected station is switched off. “ ” The star means that the TV or radio station se- lected is encoded.
-
Page 28: Setting The Qam Modulation
• Press the button. —> The “Setting the QAM modulation” – “QAM” menu is activated when the channel strips “A” without a CA module installed and “B” are programmed. Programming the channel strip “A” with a CA module installed the “Setting the operating voltage for the CA module”... -
Page 29: Inverting The User Signal
Inverting the user signal For exceptional cases and “older” digital cable receivers, the spectral position of the user signal can be inverted. • Use to place the cursor under “normal”. ◀ ▶ • Use to set the spectral position to “inverse”. •... -
Page 30: Setting A Substitute Signal In The Case Of An Incorrect Input Signal
Notes: – Increase the value of “Number 1”. —> The “Number 1” can be increased to any value up to 7500. – Reduce the value of “Number 1”. —> With the station filter switched “on”, the “Number 1” can be decreased. To do this, observe the “Number 2”... -
Page 31: Network Information Table (Nit)
Network Information Table (NIT) Bx 4A => Make on / off Make ▶ • To switch NIT on/off (“on”/”off”) press the buttons. • Press the button to activate NIT “Make”. ▶ All active …-QAM cassettes must be set and ready for reception. -
Page 32: Saving Settings
Saving settings • Press the button. —> Back to “Selecting the cassette” (page 18). —> The settings are saved. —> If functions of the TPS module are activated, their sta- tus is shown in the second line of the display: “P”... -
Page 33: Setting The Pid Monitoring
• Use the buttons to set the operating voltage for the CA module. • Press the button. —> The “Setting the PID monitoring” – “CA” menu is acti- vated. Setting the PID monitoring The factory default of the PID monitoring is switched on. If particular PIDs are not decrypted the CI module is reset. -
Page 34: Configuring The Ca Module
Configuring the CA module The menu varies according to which CA module you are using. For this reason, please refer to the operating manual of your particular CA module. The relevant information is shown in the display of the head-end station. This may ap- pear as a fixed display or as scrolling text according to dis- play capabilities. -
Page 35: Setting The Station Filter
• Use the buttons to select the function desired. • To set the CA module use the buttons. ◀ ▶ • All settings are saved by pressing the button. —> You will be returned to the “Configuring the CA module” – “CA” menu item. —>... - Page 36 Further possible terms displayed: “RA” – Radio channel type “0” – The currently selected station is encrypted. • Use the buttons to call up the stations in sequential ◀ ▶ order which are to be decoded, then use to decrypt (“...
-
Page 37: Channel And Frequency Tables
Channel and frequency tables CCIR – Band I/III (Frequency raster 7 MHz) 48.25 133.25 175.25 C 11 217.25 S 15 259.25 55.25 140.25 182.25 C 12 224.25 S 16 266.25 62.25 147.25 189.25 S 11 231.25 S 17 273.25 112.25 154.25 196.25 S 12... - Page 38 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.tv Alterations reserved. Technical data E. & O.E. © GSS GmbH 09062008...
