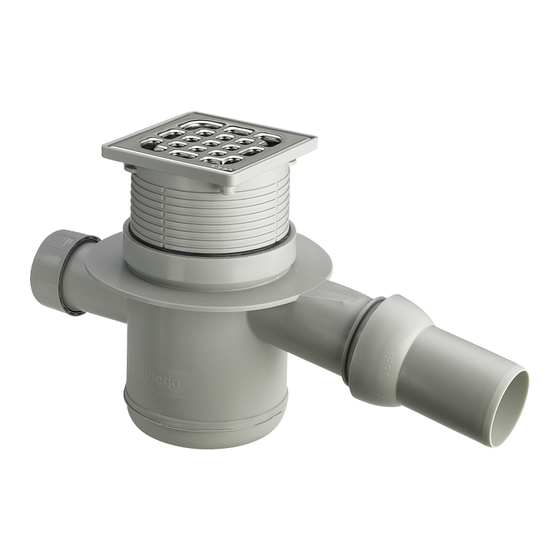

- Page 1 Advantix bathroom drain Instructions for Use Model Year built: 4921.4 from 01/1987 en_INT...
- Page 2 Advantix bathroom drain 2 from 15...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Standards and regulations Intended use 2.2.1 Areas of use 2.2.2 Media 2.2.3 Drainage capacity Product description 2.3.1 Overview 2.3.2 Technical data Information for use... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e. -
Page 6: Product Information
2 Product information Standards and regulations The following standards and regulations apply to Germany / Europe. National regulations can be found on the relevant web site of your country at viega.com/standards. Regulations from section: Media Scope / Notice Regulations applicable in Ger‐... -
Page 7: Drainage Capacity
Product information 2.2.3 Drainage capacity Drainage capacity at an accumulation height of 10 mm above the grate: 0.55 l/s Drainage capacity at an accumulation height of 20 mm above the grate: 0.9 l/s Drainage capacity through the lateral inlet: 1.2 l/s The values are dependent on the total height (H) of the drain unit. -
Page 8: Information For Use
Product information Dimensions and installa‐ Ä Chapter 3.1.2 „Installation dimen‐ tion height sions“ on page 10 Water head seal 50 mm Load class K = 300 kg Information for use 2.4.1 Installation variations The drain can be mounted in the following way: in a drill hole in a floor recess Required accessories... - Page 9 Product information Odour barrier Advantix drains can be equipped with an additional odour barrier, which also closes the drain odour-tight, if the water seal in the odour trap has evaporated. Odour nuisance is even avoided with drains that are only seldom used.
-
Page 10: Handling
If necessary, supply the required accessories Ä Chapter 2.5 „Required accessories“ on page 8. During assembly: Observe installation dimensions. 3.1.2 Installation dimensions Ø155 Ø100 Fig. 1: Dimensional drawing for model 4921.4 Advantix bathroom drain 10 from 15... -
Page 11: Tools And Materials
Handling 3.1.3 Tools and materials Required material Material for securing the drain Assembly 3.2.1 Connecting the drain Connecting to the wastewater system The connection to the wastewater system must be completed before the drain can be installed in the floor construction. Proceed as follows: Requirements: A pipe to the planned drainage position is already in place for the connection to the wastewater system. - Page 12 Handling Remove protective plug. Remove sliding ring and sealing from the protective plug. Push the union nut, sliding ring and sealing onto the inlet pipe. Push inlet pipe at least 1.5 cm deep into the drain inlet. Screw the inlet pipe with the coupling onto the drain inlet. Mounting the drain Position the drain at the desired height at the place of use.
-
Page 13: Mounting The Top
Handling NOTICE! Product damage due to improper installation If hollow spaces occur during the lining of the drain, leaks may occur when pressure is applied. Inform the subsequent workers that the drain must be fully lined and that there must be no hollow spaces. 3.2.2 Mounting the top Starting with the upper edge, transfer the measured height onto the... -
Page 14: Care
Handling Care 3.3.1 Care tips Normal soap or a mild cleaning agent can be used for regular care and prevention of lime scale on the grate and frame. Under no circum‐ stances should scouring agent or scratching objects be used. Strong stains, even around the drain unit and the siphon, can be removed using typical household cleaner. -
Page 15: Disposal
Handling Clean drain. Replace cleaning screw. Re-insert grate. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Advantix bathroom drain 15 from 15...
