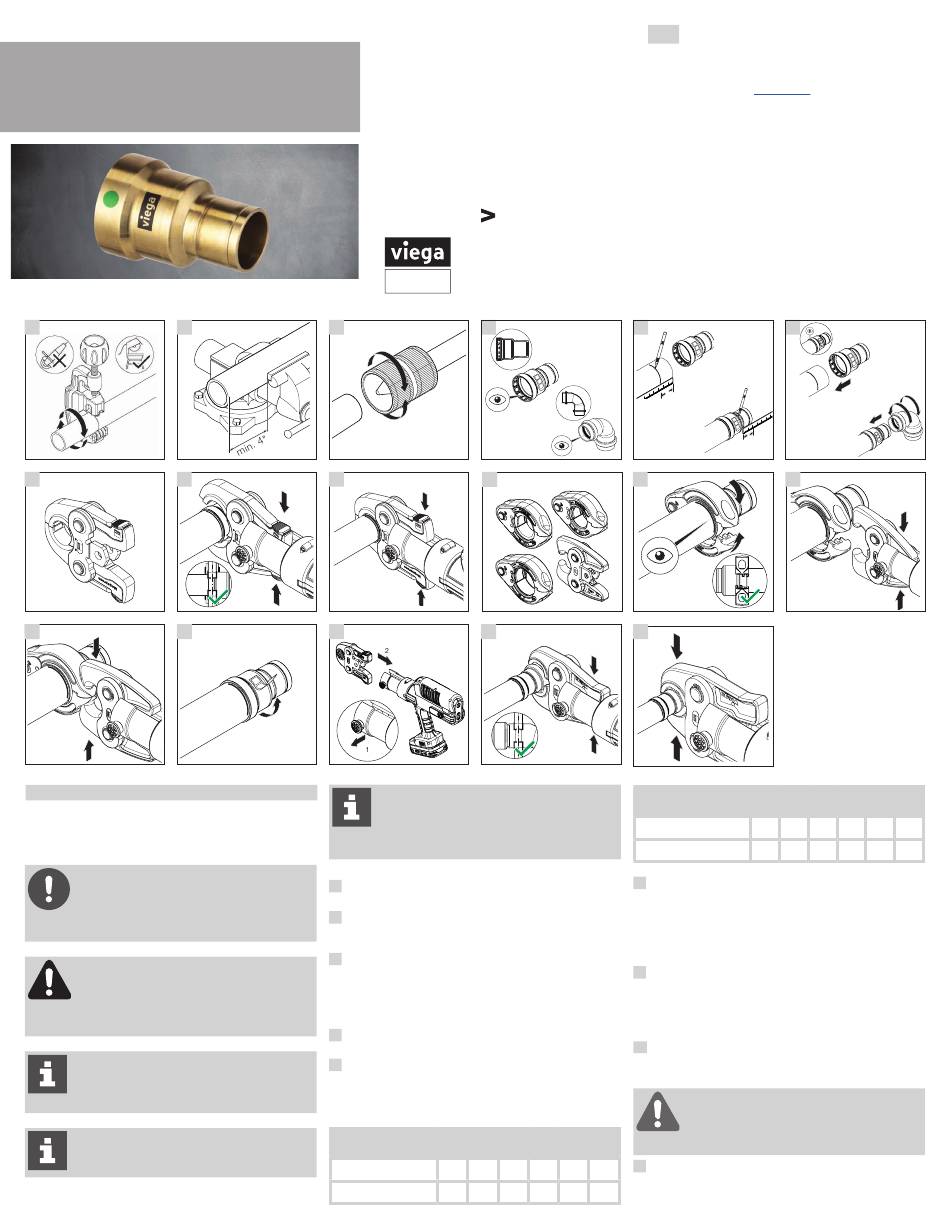

Product Instructions
Viega MegaPress ZL Bronze
IPS to CTS Transition Coupling
Model 4813.4ZL
1
2
7
8
MegaPress 1/2" to 1"
13
14
6
EN
Viega MegaPress ZL Bronze IPS to
CTS Transition Coupling 1/2" to 2"
Viega products are designed to be installed
by licensed and trained plumbing and
mechanical professionals who are familiar with
Viega products and their installation. Installation by
non-professionals may void Viega LLC's warranty.
DANGER!
Read and understand all instructions for
installing Viega MegaPress and ProPress
fittings. Failure to follow all instructions may result in
extensive property damage, serious injury, or death.
Zero Lead identifies Viega products meeting
the lead free requirements of NSF/ANSI/CAN
61 through testing under NSF/ANSI/CAN 372
(0.25% or less maximum weighted average lead content).
The IPS side of the coupling (the larger
side) must use MegaPress jaws/rings to
make the press.
Viega LLC
585 Interlocken Blvd.
Broomfield, CO 80021
Phone (800) 976-9819
www.viega.us
3
4
ProPress
9
10
MegaPress 11/4" to 2"
15
16
ProPress 1/2 to 2"
The Viega MegaPress ZL Bronze IPS to CTS
transition coupling is designed to transition
between IPS-sized pipe (Schedule 10 to 40)
to CTS-sized copper, stainless, or PEX tubing with
the use of an additional ProPress fitting.
Cut pipe/tube at right angles/square using
1
displacement-type cutter or fine-toothed steel saw.
Keep end of pipe a minimum of 4" away from
2
the contact area of the vise to prevent possible
damage to the pipe/tube in the press area.
Remove burr from inside and outside of pipe and prep
3
to proper insertion depth using a preparation tool or
fine grit sandpaper. The pipe must be smooth, free of
indentations, pits, and deformations and must be clean
and free of dirt, debris, rust, scale, oil, and grease.
Check seal, separator ring, and grip ring for
4
correct fit. Do not use oils or lubricants.
Mark proper insertion depth as indicated by the
5
Insertion Depth Charts. Improper insertion depth may
result in an improper seal. It is recommended that the
depth marking be visible on the completed assembly.
IPS Press Connection
Insertion Depth Chart
Pipe Size (in)
½
¾
Insertion Depth (in) 1
/
1
/
1⅜ 1
1
3
16
16
Product Instructions
EN
Viega MegaPress ZL Bronze
IPS to CTS Transition Coupling
This document is subject to updates. For the most current Viega
technical literature please visit www.viega.us.
PI-MP 531448 0224 MegaPress ZL Bronze IPS to CTS Transition Coupling
5
MegaPress
Transition
Coupling
ProPress Fitting
on MegaPress
Transition
Fitting
Coupling
11
17
Tube Size (in) ½
Insertion Depth (in) ¾
6
While turning slightly, slide fitting onto pipe/tube
to the marked depth. End of pipe/tube must
contact stop. Once the assembly is completed, it is
recommended that the depth marking still be visible.
To make an IPS press connection
7
Viega MegaPress ½" to 1" fitting connections must be
performed with MegaPress jaws. Pull out holding pin and
insert appropriate Viega MegaPress jaw into the press tool,
then push holding pin in until it locks in place. See pressing
tool's Operator's Manual for proper tool instructions.
8
Open the MegaPress jaw and place at right angles
on the fitting. Visually check insertion depth using
mark on the pipe.
Warning!
Keep extremities and foreign objects away
from press tool during pressing operation
to prevent injury or incomplete press.
9
Hold trigger on press tool until press jaws have
1
1¼ 1½
2
fully engaged the fitting. Jaws will automatically
/
1⅞
2
13
16
release after a full press is made.
MegaPress
MegaPress
6
6
Transition
Transition
Coupling
Coupling
ProPress Fitting
on MegaPress
Transition
Coupling
12
CTS Press Connection
Insertion Depth Chart
¾
1
1¼ 1½
/
⅞
⅞
1
1
7
16
2
/
1
9
16
