- Page 1 Advantix Advantix bath drain 62 mm, (recon- struction model) Instructions for Use for bonded sealing (tiled shower) with sealing mat Model Year built: 4980.60 from 01/2012 en_INT...
- Page 2 Advantix Advantix bath drain 62 mm, (reconstruction model) 2 from 21...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Standards and regulations Intended use 2.2.1 Areas of use 2.2.2 Media 2.2.3 Drainage capacity Product description 2.3.1 Overview 2.3.2 Technical data Information for use... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e. -
Page 6: Product Information
2 Product information Standards and regulations The following standards and regulations apply to Germany / Europe. National regulations can be found on the relevant web site of your viega.com/standards . country at Regulations from section: Sealing Scope / Notice Regulations applicable in Ger-... -
Page 7: Intended Use
Product information Intended use 2.2.1 Areas of use The drain is designed for small to medium volumes of water, which occur in e. g. residential building. Ä Chapter 2.3.2 „Technical data“ on page 8 . Technical information, see The drain is a reconstruction model, which due to its low height can also be integrated into a very low floor construction without having to make a drill hole. -
Page 8: Drainage Capacity

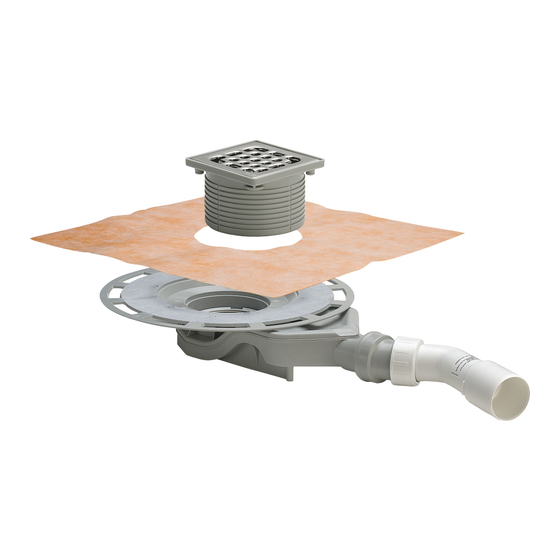

Product information The values are dependent on the total height (H) of the drain unit. Product description 2.3.1 Overview 1 - grate 2 - top, can be cut to length 3 - removable odour trap 4 - 45° angled drain socket (DN 50) 5 - base unit 2.3.2 Technical data... -
Page 9: Information For Use
Product information The drain is placed in a floor recess and then cast-in. Fig. 1: General installation example – Floor recess Mounting on a floor During the mounting on the floor, the drain is integrated into the floor construction. At the same time, it can e. g. be integrated into the level- ling screed or heat insulation. -
Page 10: Sealing
Product information 2.4.2 Sealing Bonded sealing To protect against moisture penetration, apply sealing foils, which are to be processed in liquid state, directly below the tiles on screed and walls. The determination of the stress class and the underground as well as the selection of the suitable bonded sealing must be carried out in Ä... - Page 11 Product information Important note Careful planning is required for professional sealing. In addition, depending on the individual dampness wear class and the type of foun- dation, a suitable BS system with a building regulations certificate of suitability must be chosen. Furthermore, the following factors should be taken into account: Drain or shower channel must be equipped with a special flange, which has an adhesive surface and a width of at least 30 mm.
-
Page 12: Fire Protection
Product information 2.4.3 Fire protection Advantix shower channels and drains can both be fitted to be fire proof. The R120 pipe lead-in can be used for this purpose in the floor con- struction. In this way, a fire resistance time of up to 120 minutes can be achieved. - Page 13 Product information Sieve insert The drain can be fitted with a sieve insert (model 4958) to collect dirt. Odour barrier Advantix drains can be equipped with an additional odour barrier, which also closes the drain odour-tight, if the water seal in the odour trap has evaporated.
-
Page 14: Handling
Handling 3 Handling Assembly information 3.1.1 Important note Before assembly: Check if the drainage capacity of the drain is sufficient for the arising Ä Chapter 2.2.3 „Drainage capacity“ on page 7 . water volume Check if the installation height of the drain corresponds with the planned floor construction. -
Page 15: Installation Dimensions
Handling 3.1.2 Installation dimensions Fig. 6: Dimensional drawing model 4980.60 3.1.3 Tools and materials Required material Ä Chapter 2.3.1 Top with grate, if not included in scope of delivery „Overview“ on page 8 Material for securing the drain Assembly 3.2.1... -
Page 16: Prepare For Subsequent Work
Handling Saw drain elbow, if the wastewater pipe only has a diameter of 40 mm. Push union nut, sliding ring and sealing onto the connection elbow. Screw the union nut onto the odour trap. Align the connection elbow on the joint. Push the drain socket into the drainpipe completely. - Page 17 Handling Requirements: The drain is connected. The protective foil and the yellow protective plugs are to be found, undamaged, on the drain. Position odour trap onto the bare concrete ceiling. Check the correct seating of both O-rings on the flange. Push the flange into the drain unit as far as it will go.
-
Page 18: Sealing The Drain
Handling NOTICE! Product damage due to improper installation If hollow spaces occur during the lining of the drain, leaks may occur when pressure is applied. Inform the subsequent workers that the drain must be fully lined and that there must be no hollow spaces. 3.2.3 Sealing the drain NOTICE! -
Page 19: Mounting The Top
Handling Apply the bonded sealing on the dry screed and spread to the inner edge of the flange fleece. NOTICE! Observe the bonded sealing manufacturer's instructions for use. Lay the sealing collar into the bonded sealing. Apply a second layer of bonded sealing onto the sealing collar and, if necessary, onto the floor. -
Page 20: Care
Handling Calculate the height of the floor construction from the edge in the inside of the drain up to the upper edge of the tiles. Starting with the upper edge, transfer the measured height onto the top. Cut the top to the marked height. INFO! No backflow seal may be fitted so that any seepage that may occur can drain off without hindrance! Remove yellow protective plug. -
Page 21: Disposal
Handling Remove and clean grate. Remove and clean immersion pipe. Clean drain. Replace immersion pipe. Re-insert grate. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Advantix Advantix bath drain 62 mm, (reconstruction model) 21 from 21...
